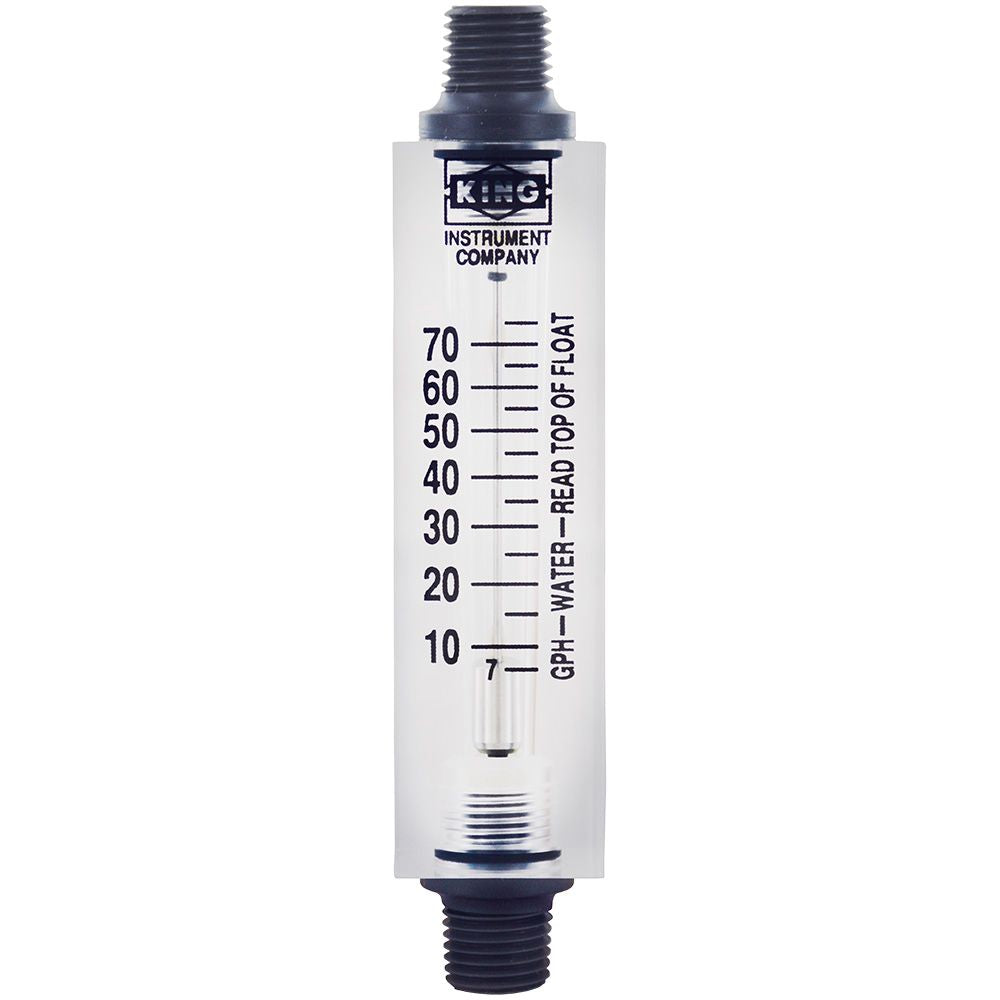

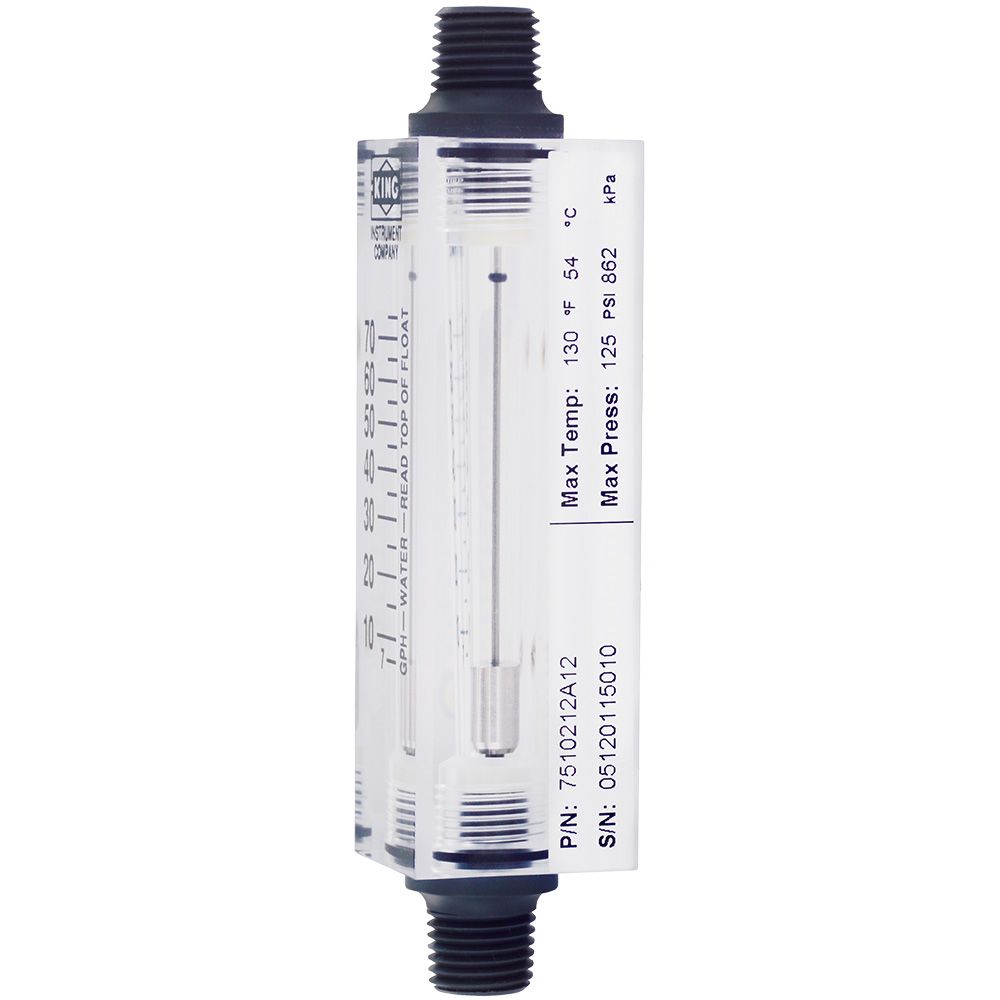

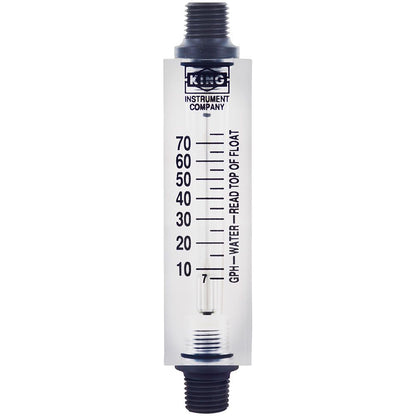

King 7510212A12 Acrylic Tube Flowmeter 75 GPH

The King 7510 Series Acrylic Tube Flowmeter features a float and tapered tube design, which provides it with longer and more linear scales, better pointer stability, and 40% more accuracy than competing rotometers, all at a competitive price. These flowmeters are precision-machined from durable cast acrylic stock, and internal components and fittings are made with 316L stainless steel. Connections are in-line for easy installation.


Specifications:

• Metering Tube: Machined cast acrylic
• Internal Components Material: 316L SS
• Fitting Material: PVC
• O-Ring Material: EPR
• Water Flow Capacity: 75 GPH

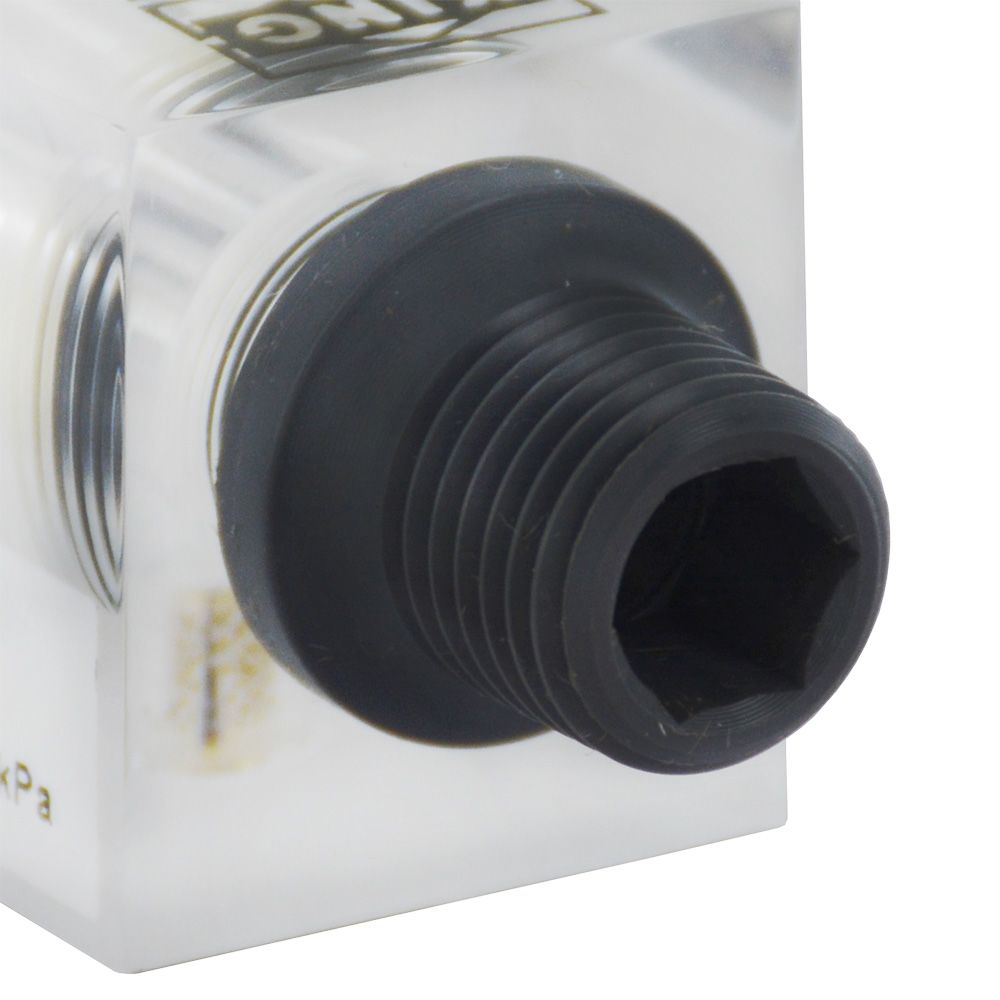

• Connection Size: 1/4" FNPT
• Accuracy: ±6% of full scale flow
• Turndown: 10:1
• Repeatability: 3% 50mm scale
• Maximum Water Pressure: 125 psig
• Maximum Liquid Temperature: 130°F (54°C)
• Dimensions: 4.75" x 1"
