John Guest Union Elbow White Acetal - 1/4

John Guest Union Elbow White Acetal - 1/4

CI0308W:10PK

Log in to see price
Shipping calculated at checkout.

Low stock

Choose:

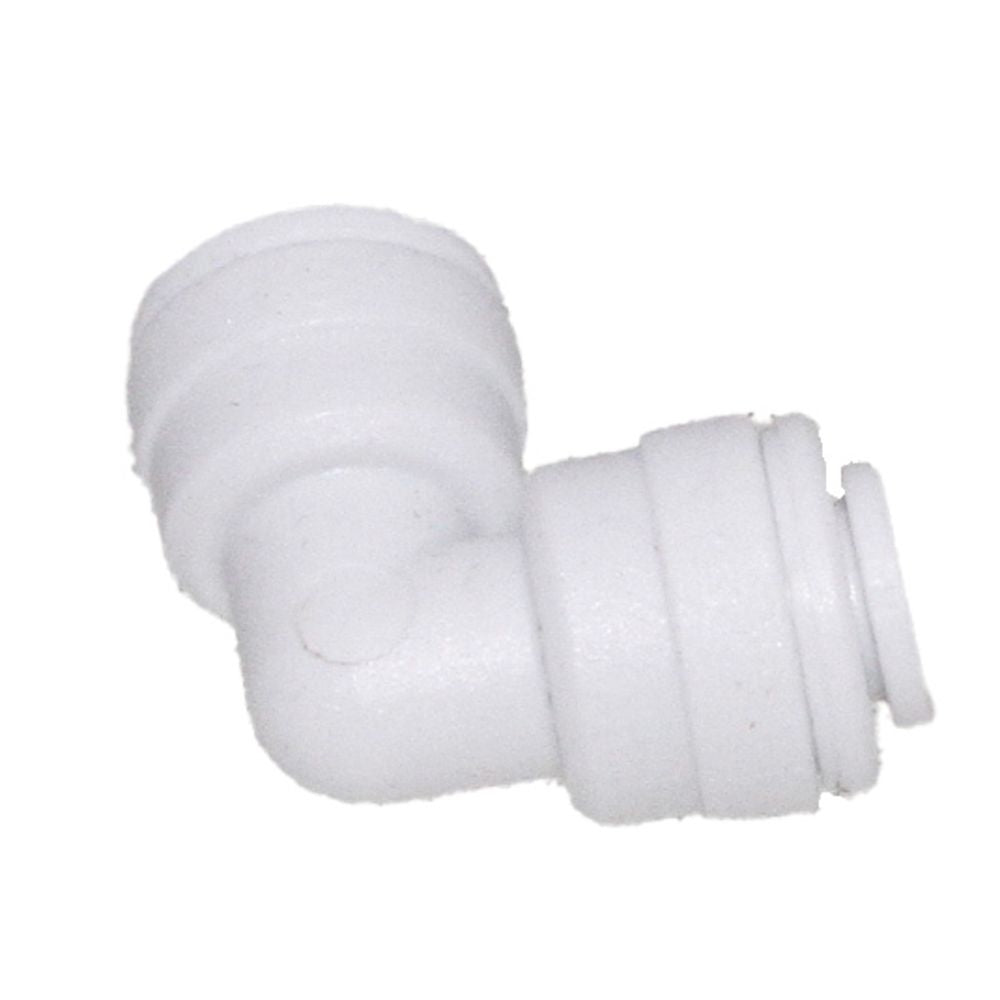

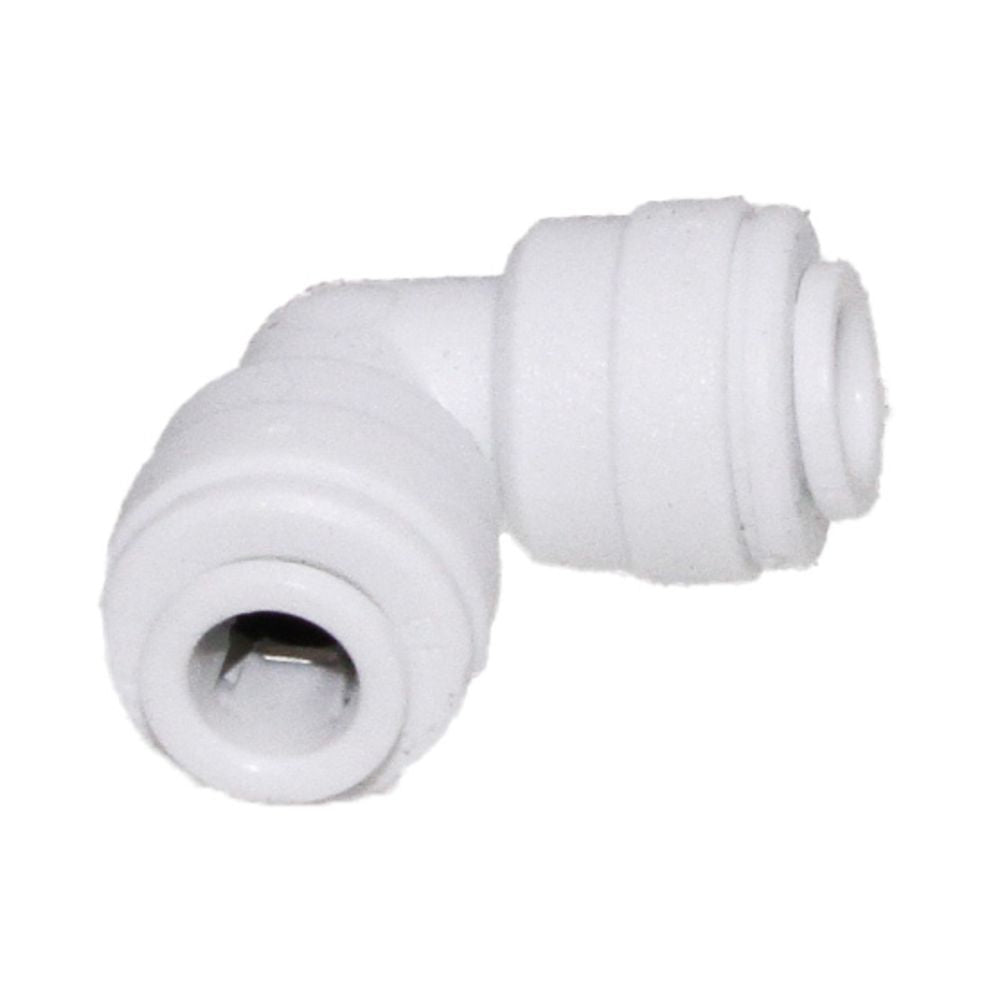

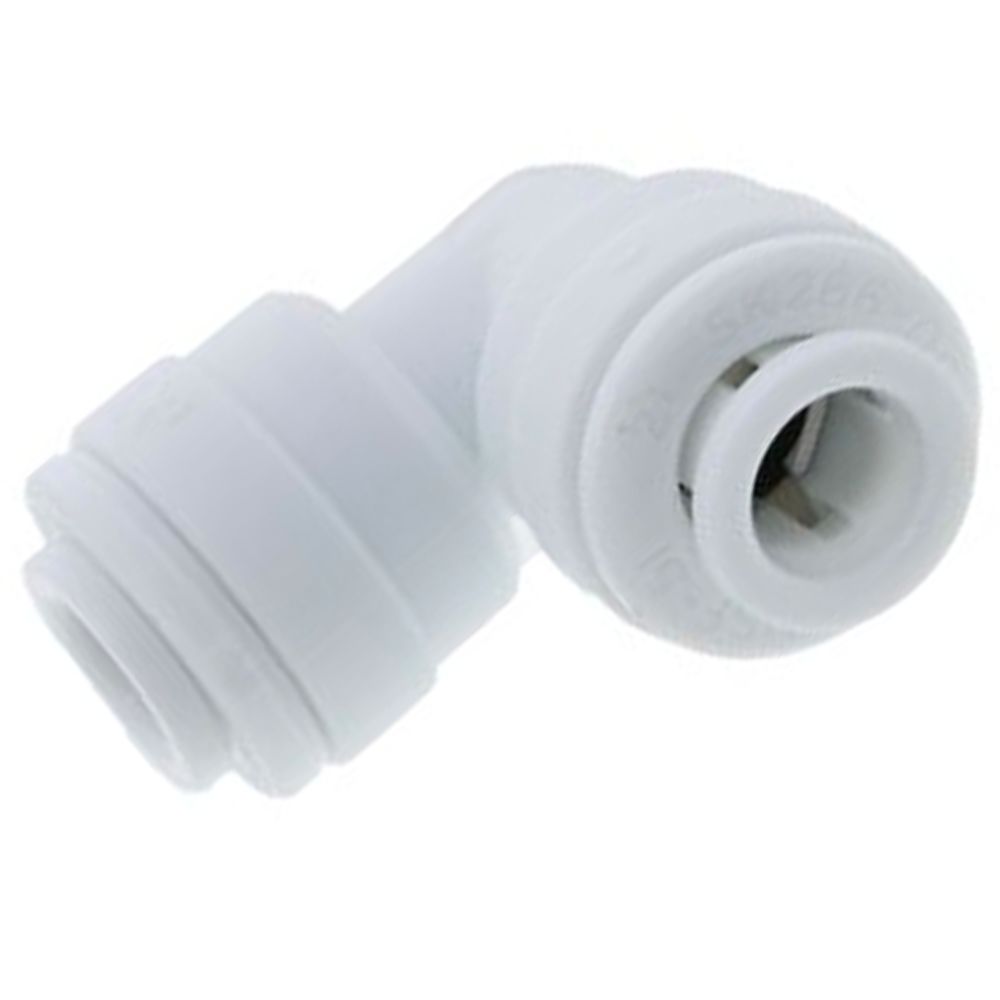

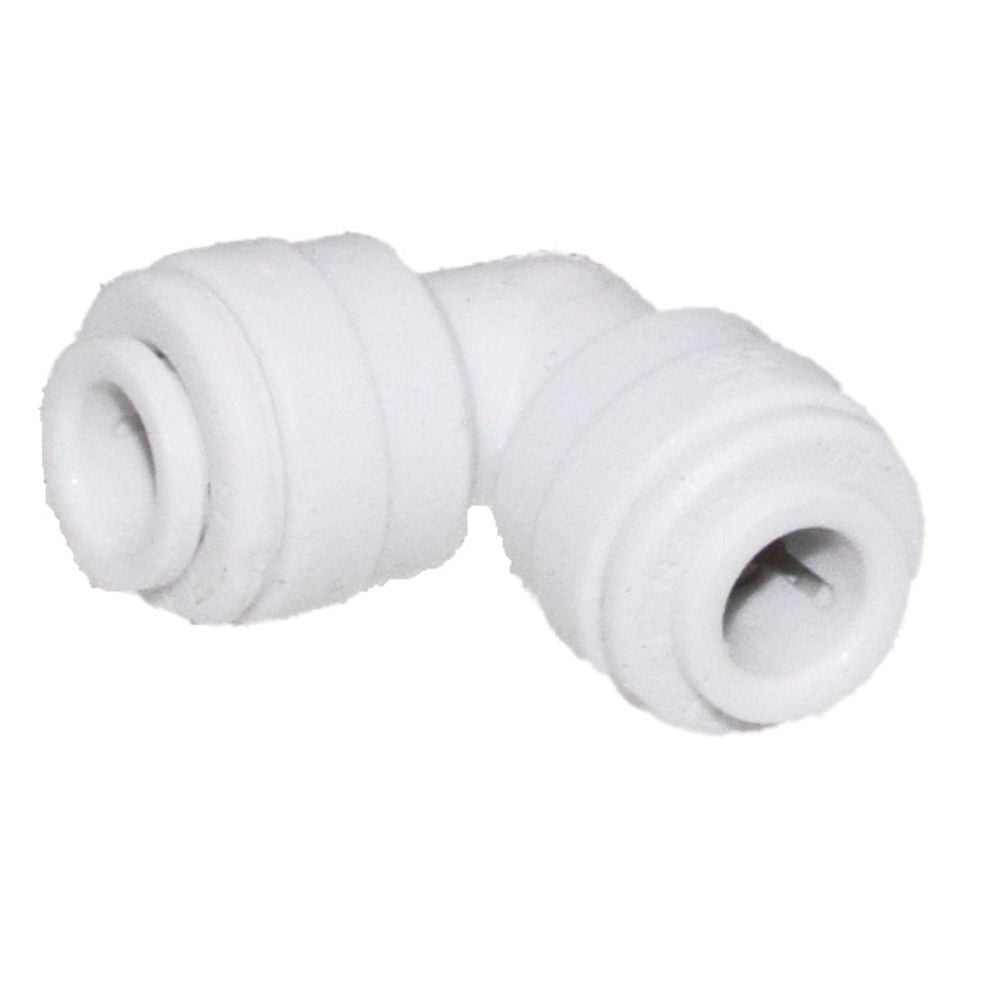

The John Guest Union Elbow makes connecting tubing quick and easy. Manufactured in white acetal with food grade EPDM O-ring, these fittings were developed for the residential filtered water market but are also suitable for other potable liquids.

Features:

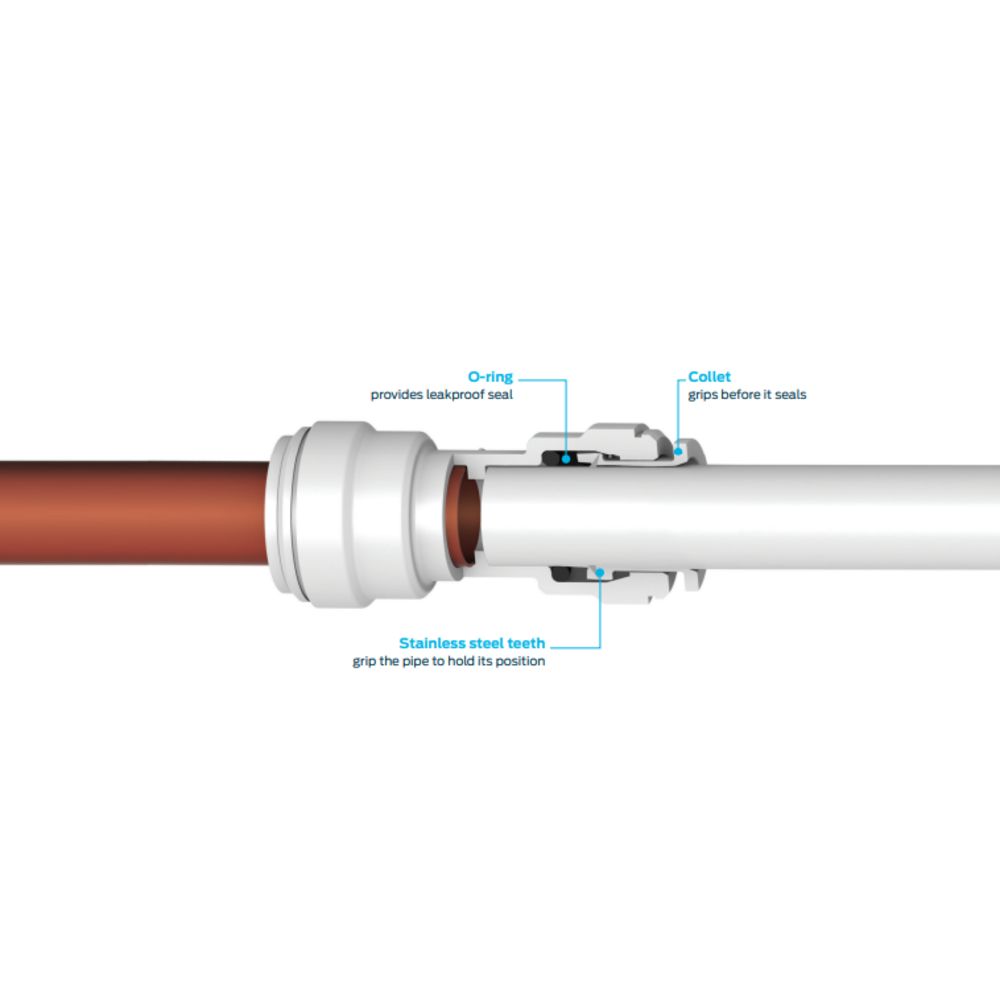

  • Push-fit Technology creates reliable, leak-free connections
  • Used to connect OD tubing sizes
  • Compatible with plastic or copper OD sized tubing
  • Connect, disconnect, and reconnect in seconds without tools
  • Food Quality and suitable for potable liquids and pure water applications
  • Acetal body with food grade EDPM O-Ring
  • Made with lead free materials
Working pressure and temperature:

  • Max. 150 psi at 70° F
  • Max. 100 psi at 150° F
Note: Not suitable for compressed air and vacuum applications.

Note: These items are not suitable air/pneumatic or vacuum applications.

JG white acetal is not suitable for air due to seal consisting of EPDM.

Compatible Tubing

Compatible tubing for John Guest fittings

Documents

John Guest Union Elbow White Acetal - 1/4 Manual
