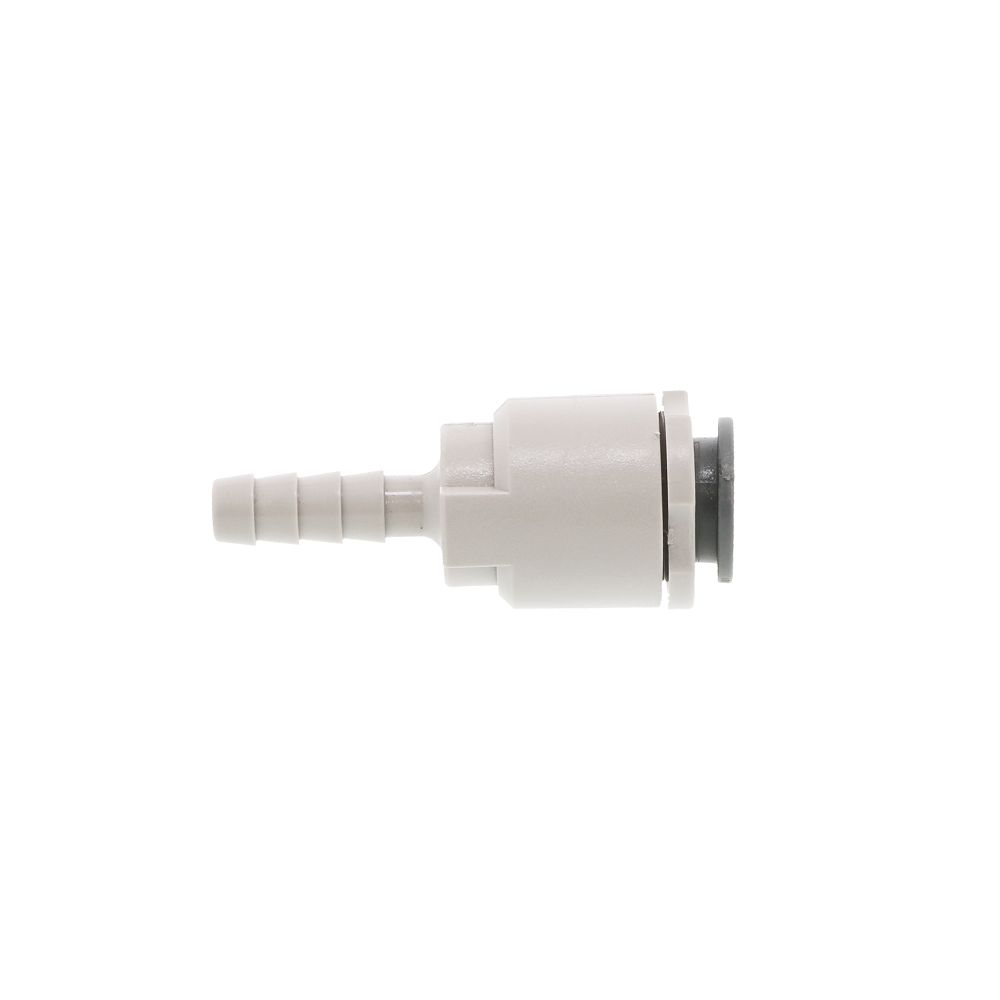

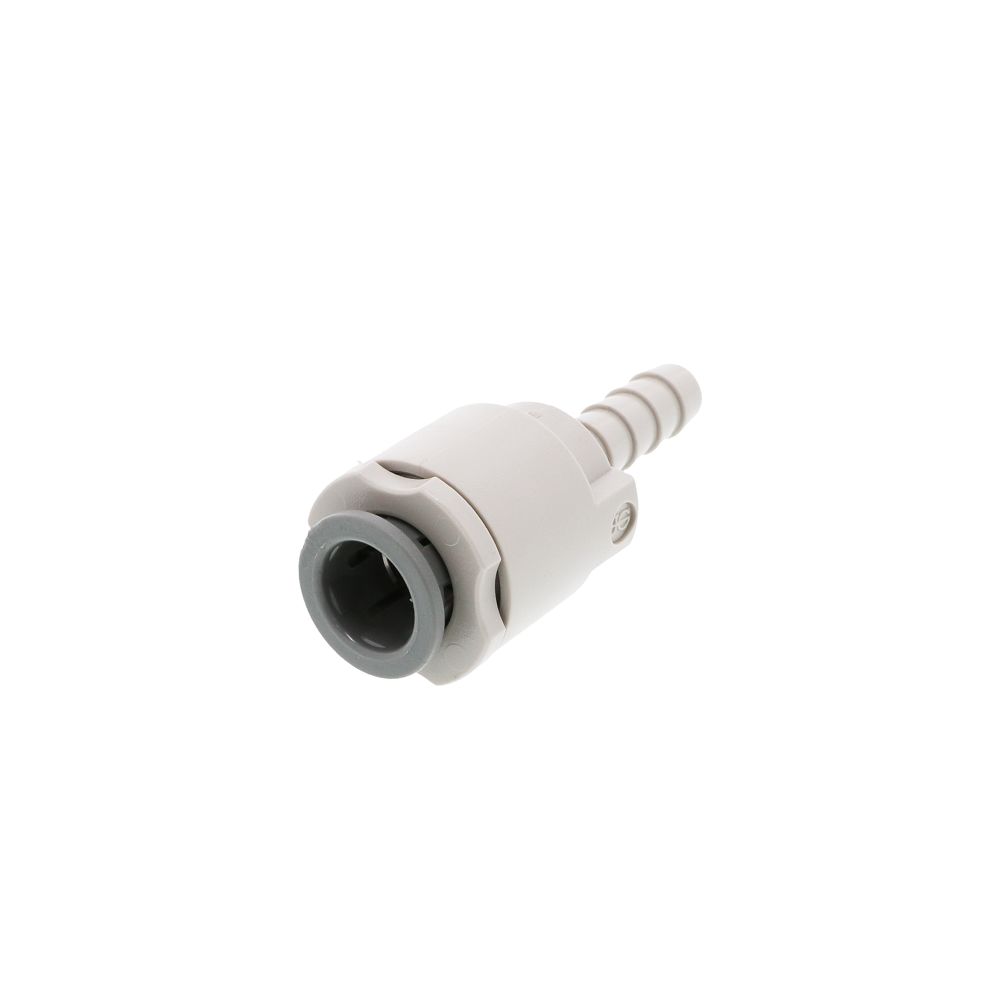

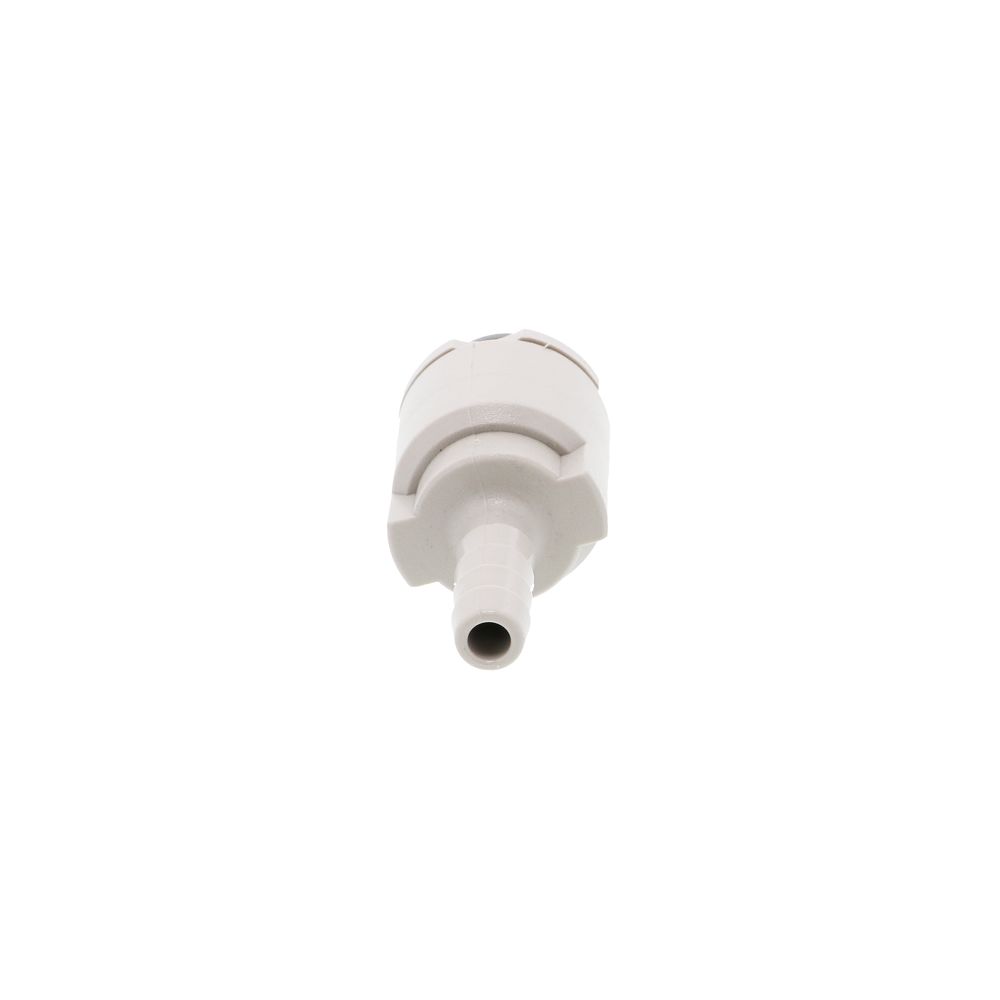

John Guest Superseal Barb - 3/8 Superseal x 1/4 ID Barb

The John Guest SuperSeal barb connector is specifically designed to provide extra grip on stainless steel tubing. Each fitting in this series features a collet with integrally molded stainless steel teeth and a hand-operated nut and wedge-shaped plastic washer that applies extra pressure to the collet and the double O-ring seals. This allows the collet teeth to bite thoroughly into the tube to provide grip, while at the same time, compressing the O-rings to further improve the seal.

Features:

• Used to connect stainless steel tubing to beverage hose
• Acetal body with double Nitrile O-Rings
• The nut and wedge-shaped plastic washer apply extra pressure to the collet and the double O-ring seals
• Connect, disconnect, and reconnect in seconds without tools
• Food Quality and suitable for potable liquids and pure water applications
• Made with lead free materials

Working pressure and temperature:

• Max. 150 psi at 68° F
• Max. 100 psi at 150° F
