Home / Fittings & Valves / Fittings / John Guest Stem Elbow Connector - 1/4 Stem x 1/4 - White
  • John Guest Stem Elbow Connector - 1/4 Stem x 1/4 - White
  • John Guest Stem Elbow Connector - 1/4 Stem x 1/4 - White
  • John Guest Stem Elbow Connector - 1/4 Stem x 1/4 - White
  • John Guest Stem Elbow Connector - 1/4 Stem x 1/4 - White
1 4
John Guest

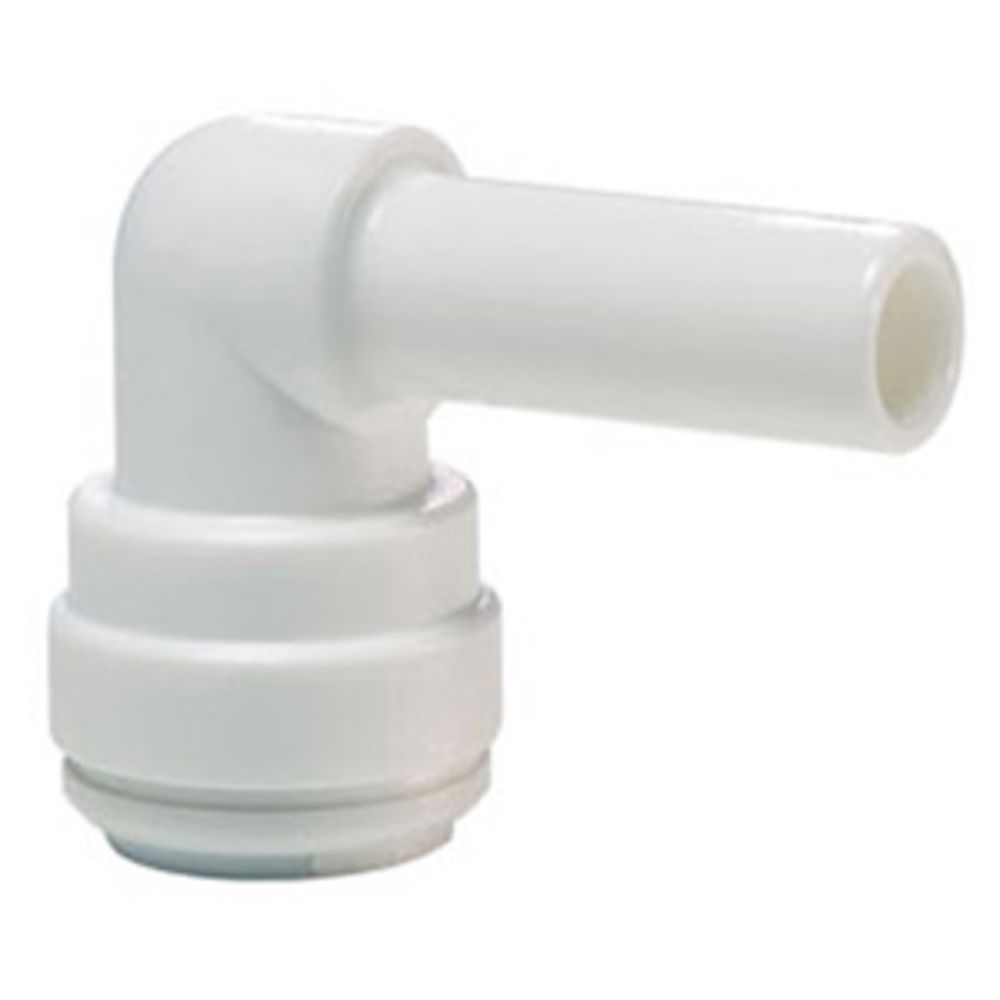

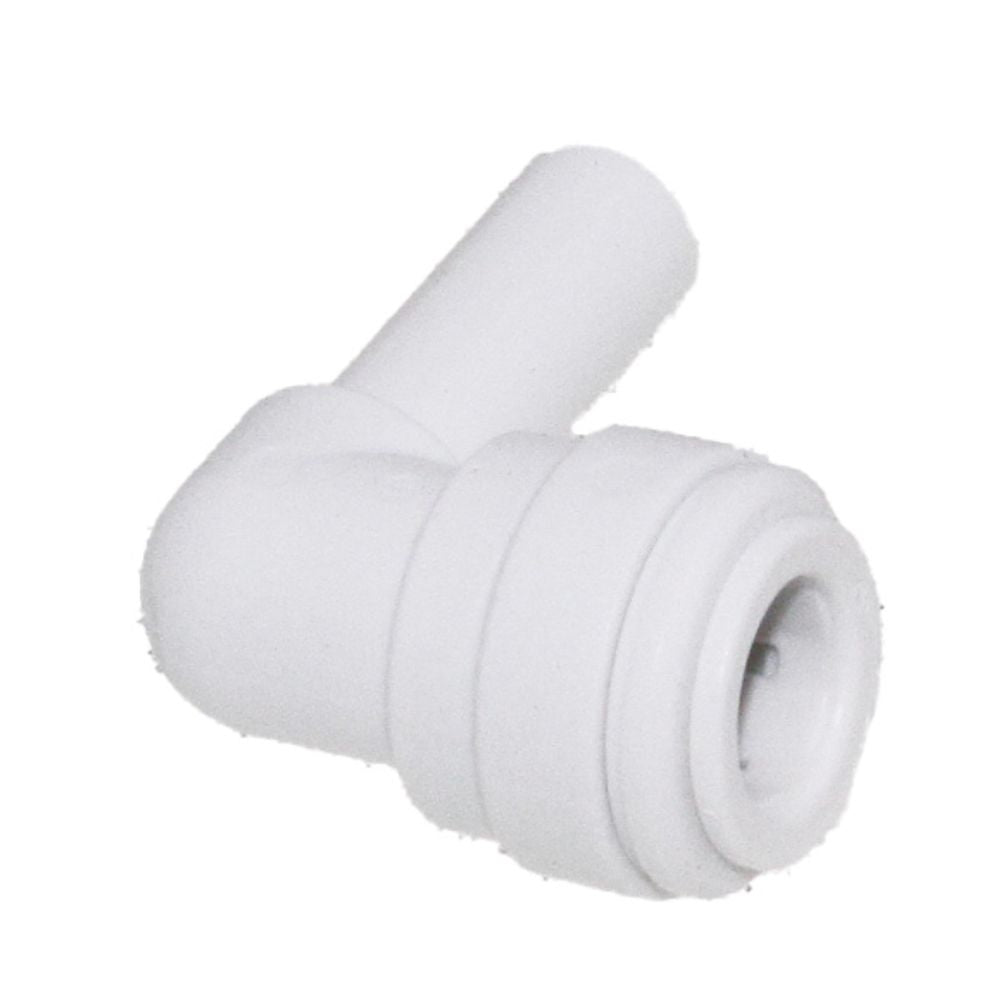

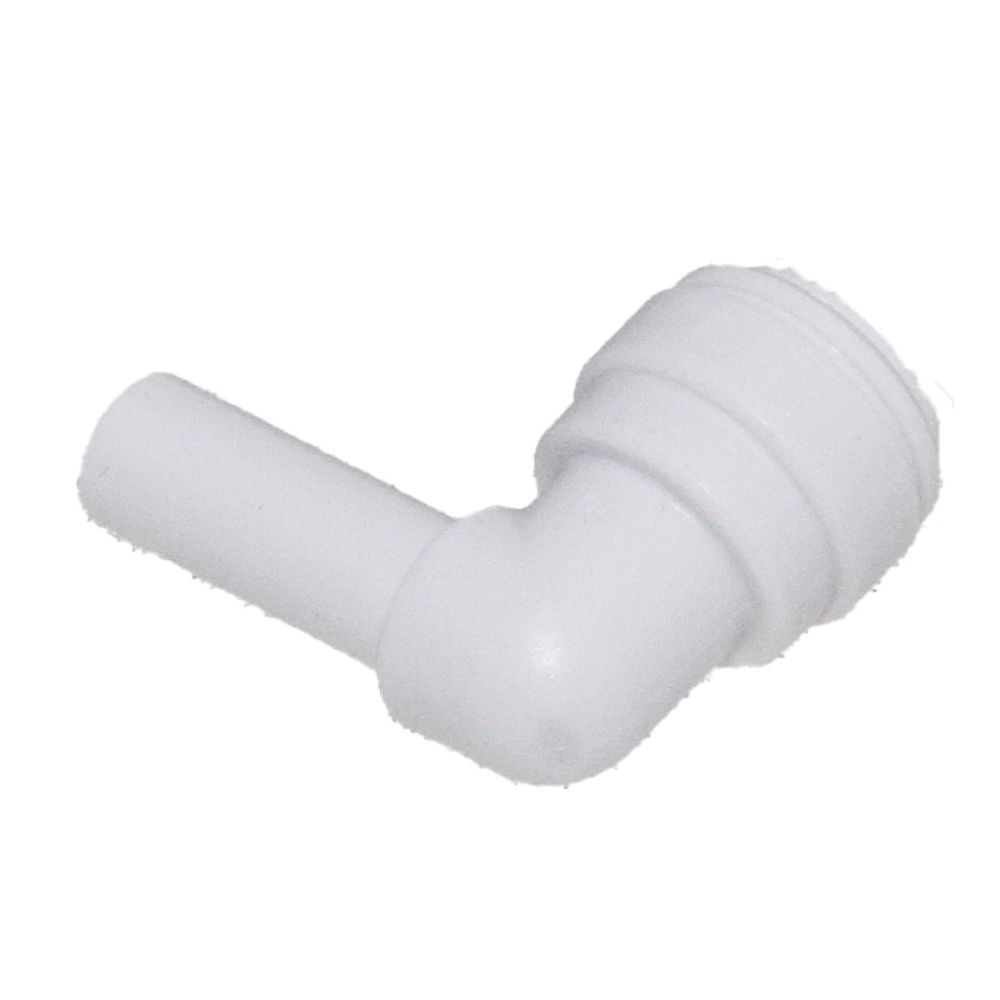

John Guest Stem Elbow Connector - 1/4 Stem x 1/4 - White

John Guest Stem Elbow Connector - 1/4 Stem x 1/4 - White

CI220808W:500PK

Pricing is available for wholesale customers only, please login to see prices.

Interested in becoming a partner?
Click here for more info.

In stock

Choose:
The John Guest Plug In Elbow makes connecting tubing quick and easy. The stem inserts into John Guest Push-fit fittings to change tubing direction 90 degrees. Manufactured in white acetal with food grade EPDM O-ring, these fittings were developed for the residential filtered water market but are also suitable for other potable liquids.

Features:

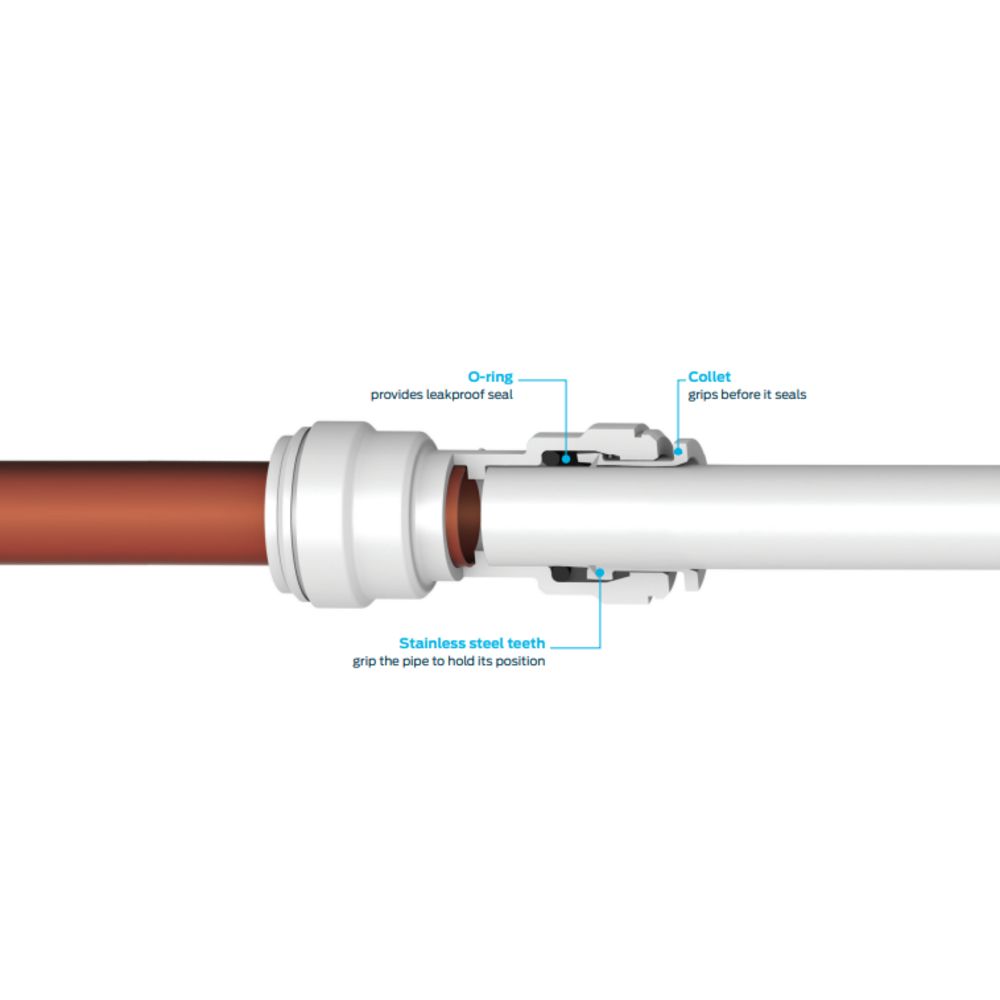

  • Push-fit Technology creates reliable, leak-free connections
  • Used to change tubing direction 90 degrees
  • Compatible with plastic or copper OD sized tubing
  • Connect, disconnect, and reconnect in seconds without tools
  • Food Quality and suitable for potable liquids and pure water applications
  • Acetal body with food grade EDPM O-Ring
  • Made with lead free materials
Working pressure and temperature:

  • Max. 150 psi at 70° F
  • Max. 100 psi at 150° F
Note: Not suitable for compressed air and vacuum applications.


Note: These items are not suitable air/pneumatic or vacuum applications.

JG white acetal is not suitable for air due to seal consisting of EPDM.



Compatible Tubing

Compatible tubing for John Guest fittings

Documents

John Guest Stem Elbow Connector - 1/4 Stem x 1/4 - White Manual

Shipping Information

Shipping costs are based on your order’s weight, location, and selected shipping option. We strive to ship orders quickly, with expedited orders (Next Day Air or 2 Day) going out the same business day if placed before 4:30PM EST.
