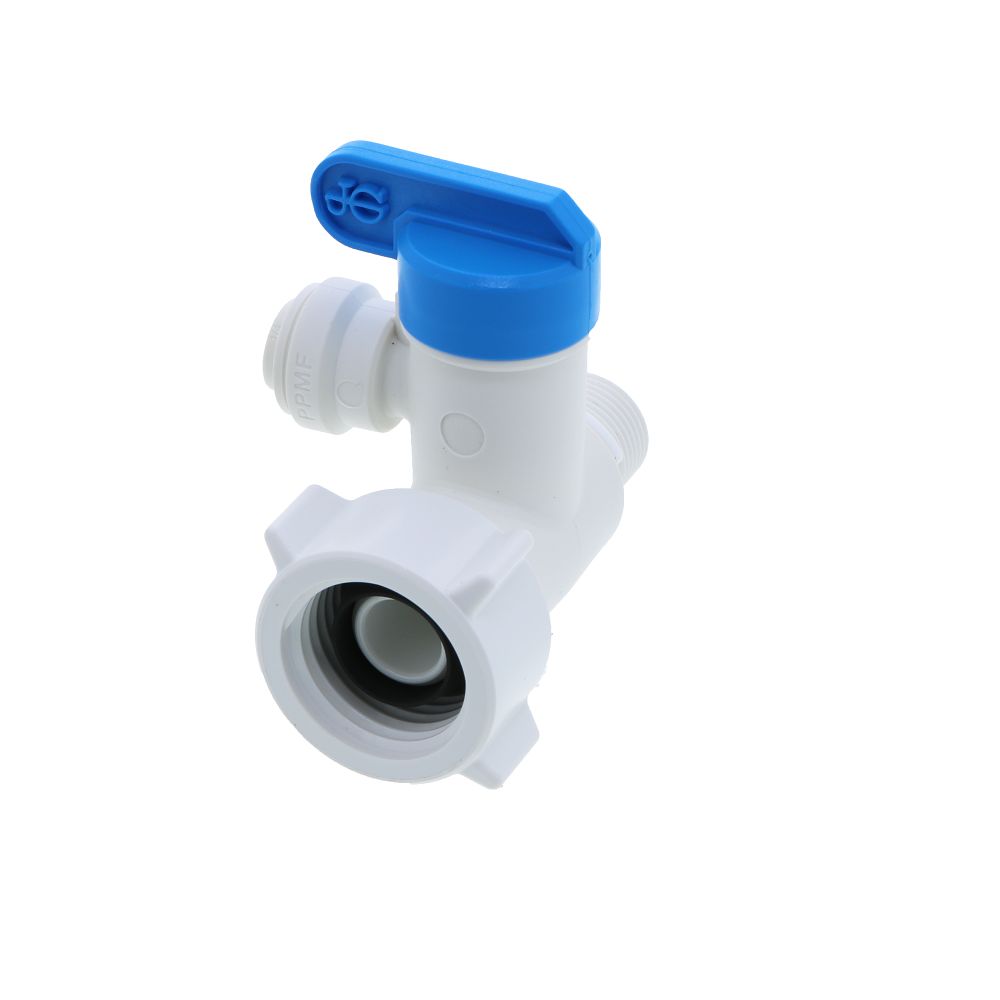

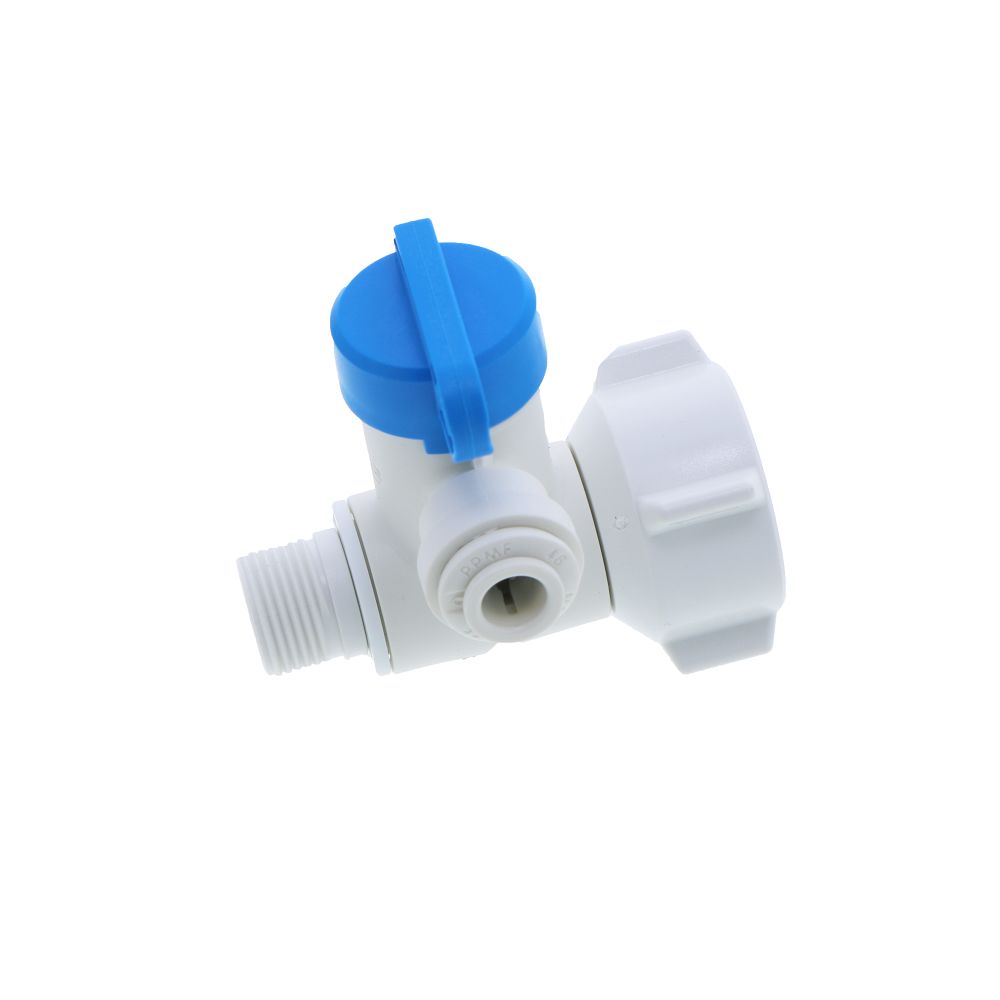

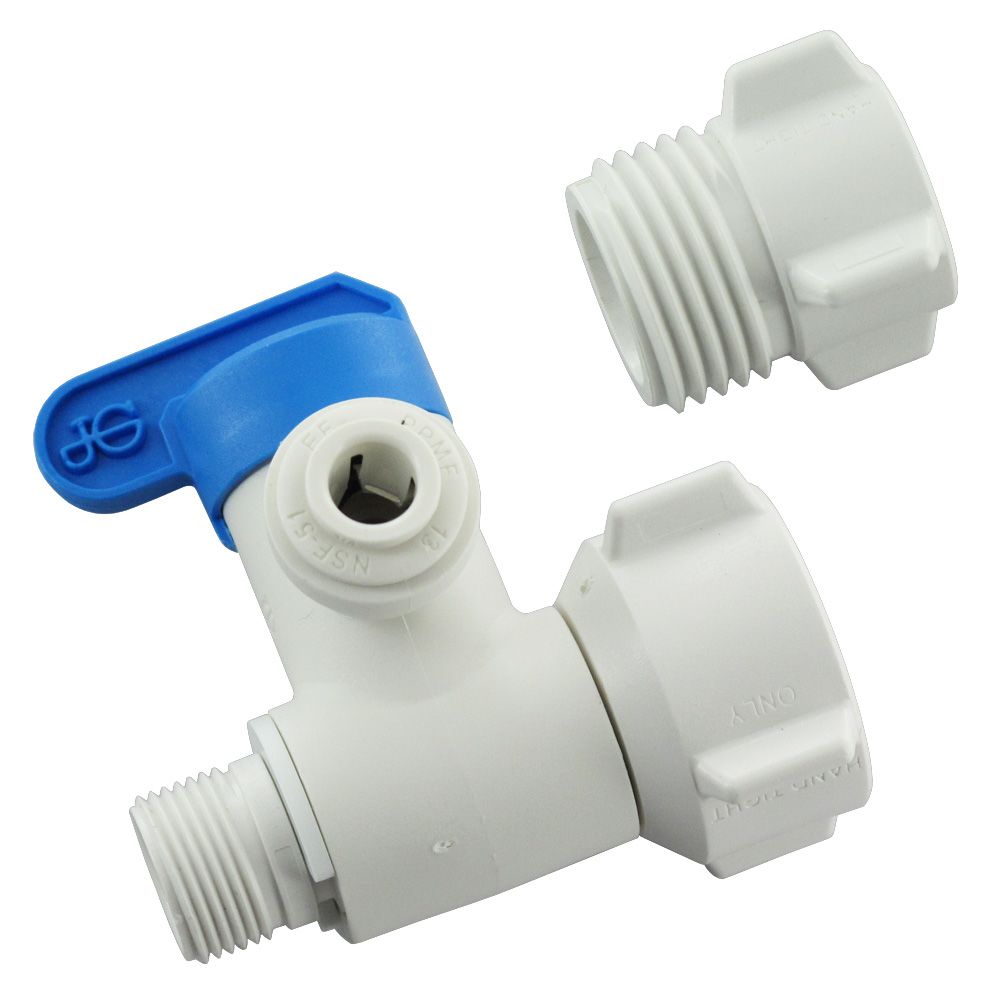

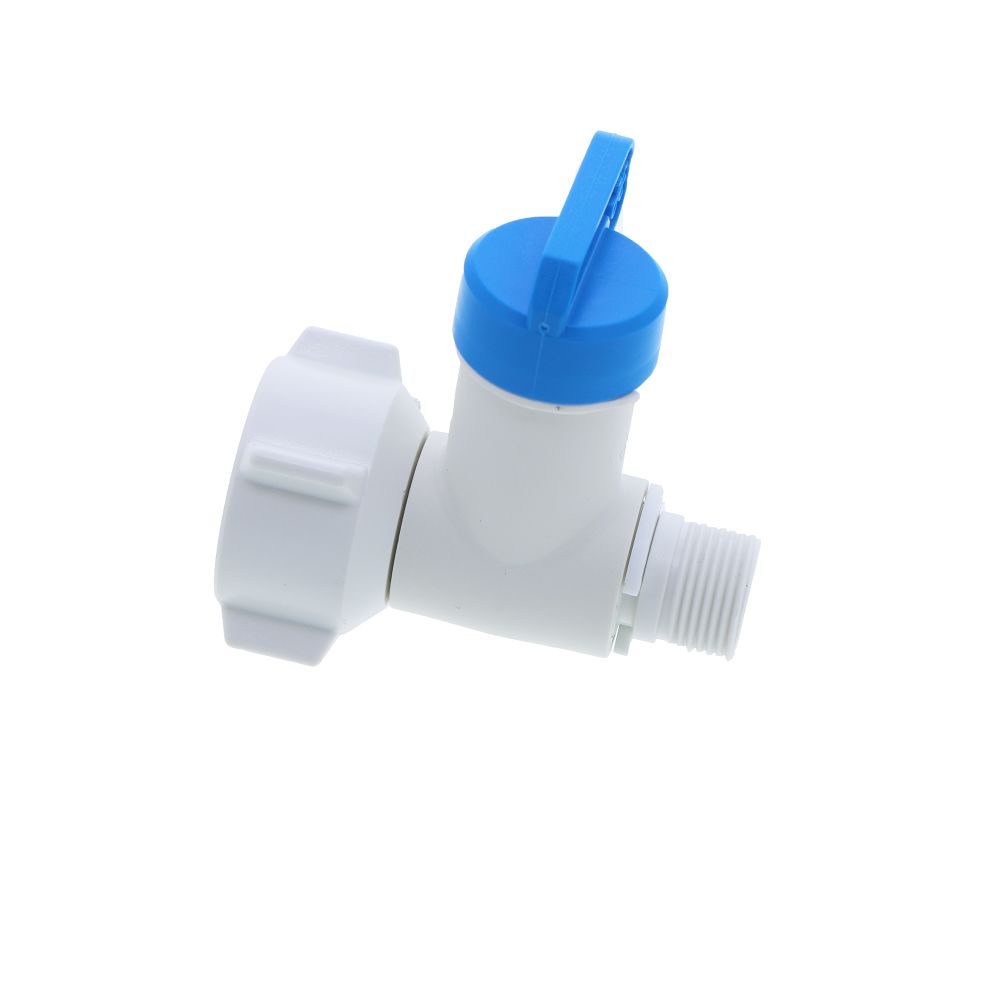

John Guest Plastic Angle Stop Adapter Valve Lead-Free - 3/8 x 1/2 x 1/4

John Guest Plastic Angle Stop Adapter Valve Lead-Free - 3/8 x 1/2 x 1/4

PASVPP5:25PK

Pricing is available for wholesale customers only, please login to see prices.

Interested in becoming a partner?
Click here for more info.

In stock

Choose:
The John Guest Angle Stop Adapter Valve connects between the stop valve and riser to provide a water supply feed line for applications in filtration systems, RO systems, coffee machines, and ice makers. The Push-fit technology makes installations quick and easy. They are manufactured in white polypropylene with food grade EPDM seals, with plated lead-free brass threads.

Features:
  • For use with plastic or copper OD sized tubing
  • For cold water supply use only
  • Quarter turn to open or close
  • White Polypropylene body, EPDM seals
  • Lead Free materials
  • Quick and easy connection/disconnection
  • NSF51 and NSF61 listed
  • Not suitable for compressed air, explosive gases, petroleum spirits and other fuels or for heating systems


Working pressure & temperature:
  • Max 145 psi at 68°F
  • Max 58 psi at 140°F
  • Min 34°F/1°C


Do Not Use these Valves:
  • In a partially open position to control flow
  • To provide a permanent termination
  • Without tubing assembled or plugged (or threaded connections sealed)
  • As a tap of “faucet”


Documents

John Guest Plastic Angle Stop Adapter Valve Lead-Free - 3/8 x 1/2 x 1/4 Manual
