John Guest

John Guest Male Connector NPTF - 1/4 x 1/8 NPTF - White

John Guest Male Connector NPTF - 1/4 x 1/8 NPTF - White

CI010821W:10PK

Pricing is available for wholesale customers only, please login to see prices.

Interested in becoming a partner?
Click here for more info.

In stock

Choose:
The John Guest male connector makes connecting tubing to female NPT threads quick and easy. Manufactured in white acetal with food grade EPDM O-ring, these fittings were developed for the residential filtered water market but are also suitable for other potable liquids.

Features:

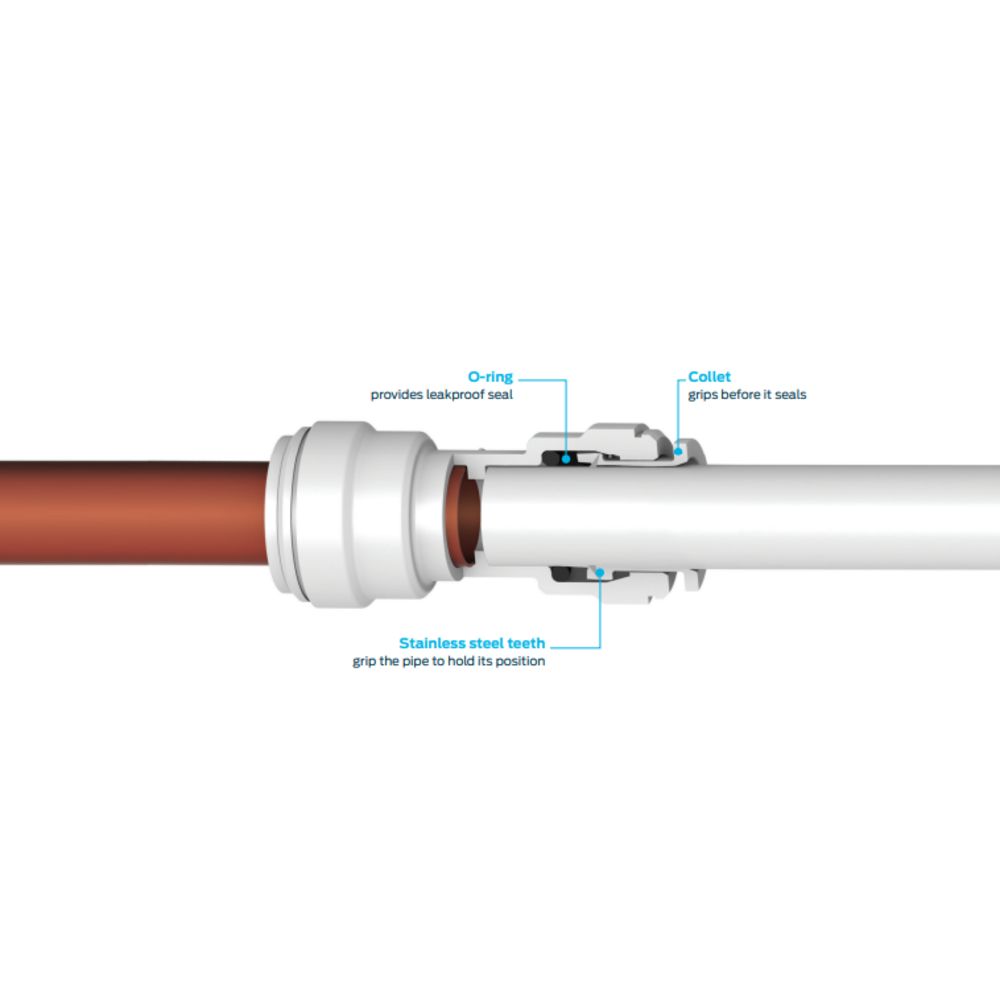

  • Push-fit Technology creates reliable, leak-free connections
  • Used to connect OD tubing sizes to female NPT threads
  • Compatible with plastic or copper OD sized tubing
  • Made with lead free materials
  • Acetal body with food grade EDPM O-Ring
  • Food Quality and suitable for potable liquids and pure water applications
  • Connect, disconnect, and reconnect in seconds without tools
Working pressure and temperature:
  • Max. 150 psi at 70° F
  • Max. 100 psi at 150° F
Note: Not suitable for compressed air and vacuum applications.

Note: These items are not suitable air/pneumatic or vacuum applications.

JG white acetal is not suitable for air due to seal consisting of EPDM.



Specifications

Application Water, food & beverage
Body Material Acetal Copolymer
Inlet/Outlet Connection 1/8" MPT
Max Pressure (Psi) 150
Max Temp (°F) 150
Min Pressure (Psi) 0
Min Temp (°F) 33
Mounting Options Thread
Push-In Size 1/4" OD
Seal Material EPDM
Series CI
Size 1/8"
Color / Finish White
Connection Type Male (MPT)
Origin UK
Sub-Type Male Adapter
Type Adapter
Certifications NSF 61, NSF 51, NSF 372

Documents

John Guest Male Connector NPTF - 1/4 x 1/8 NPTF - White Manual
