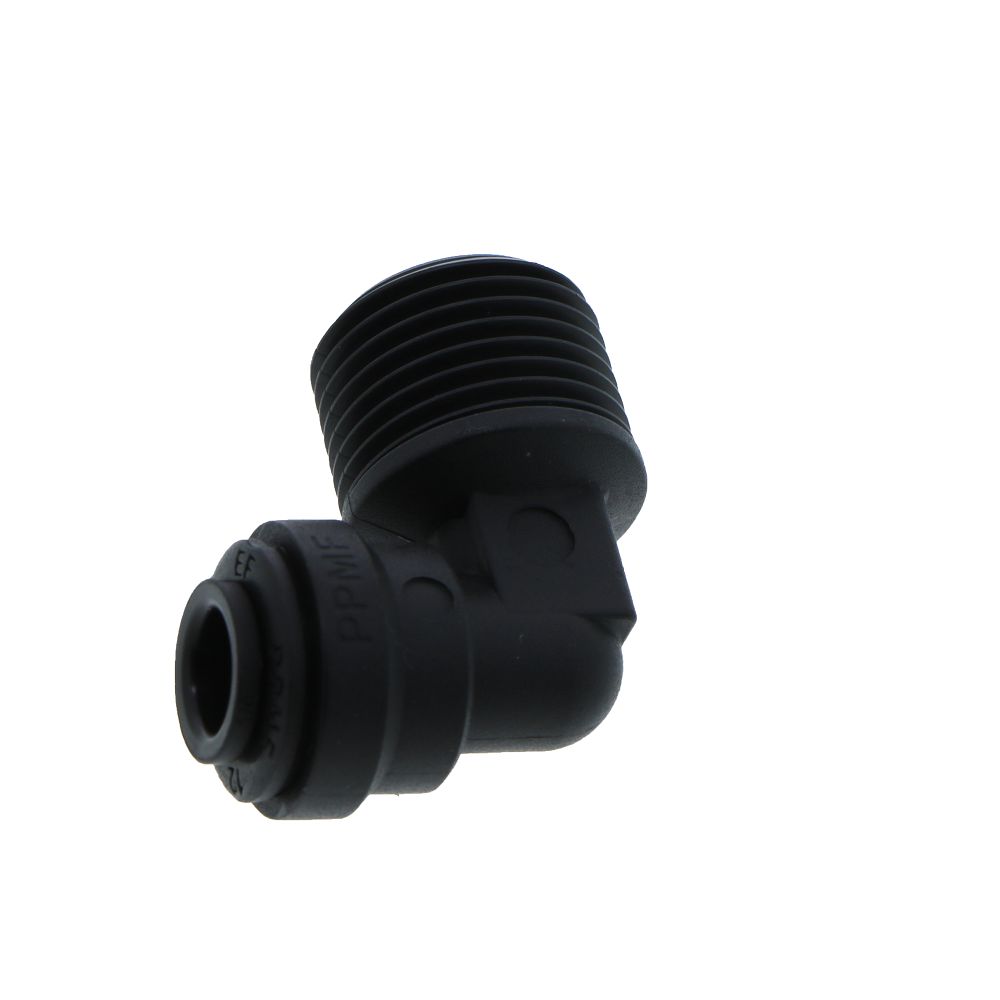

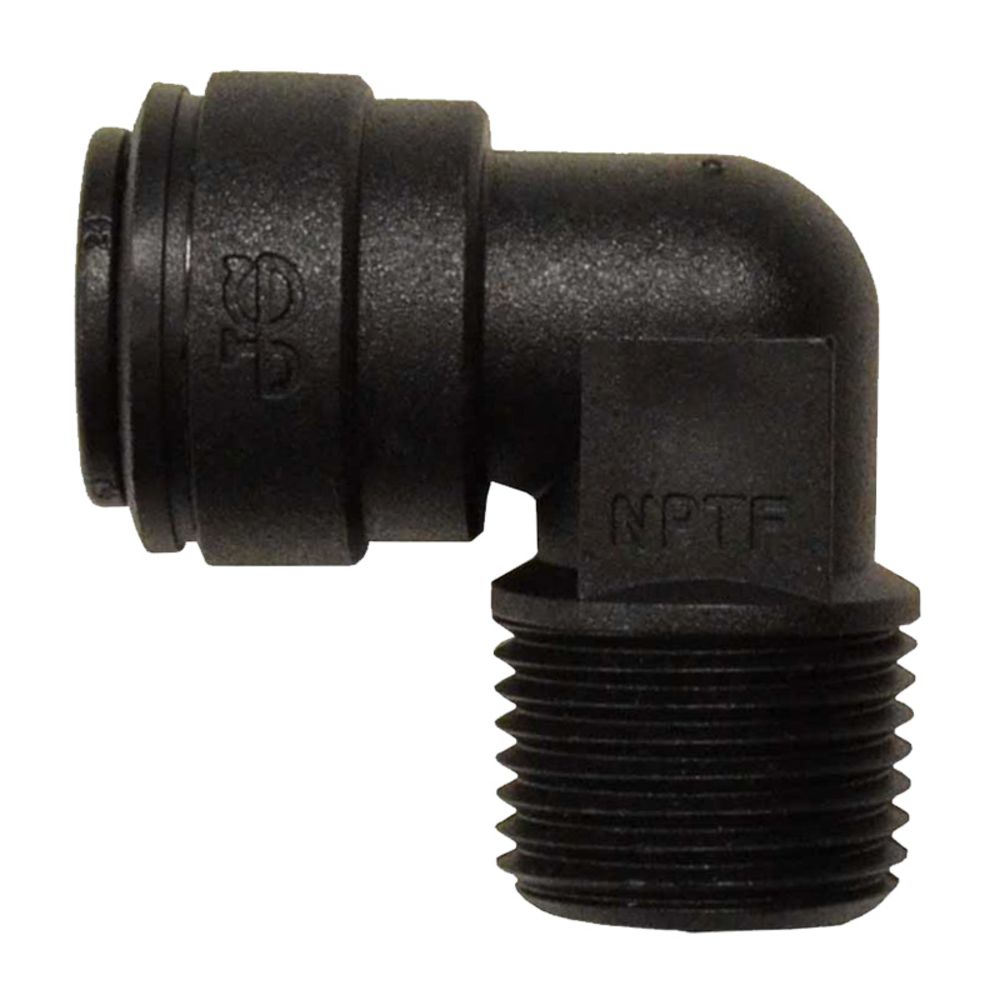

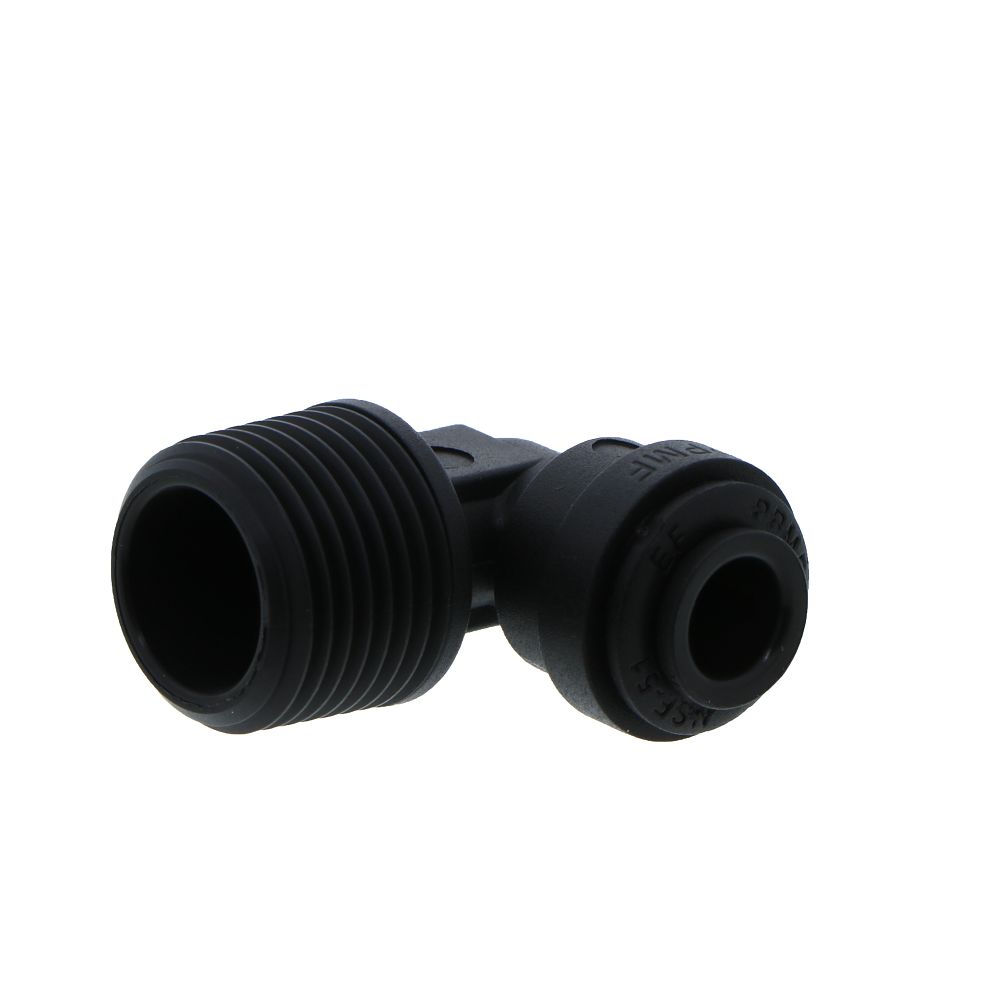

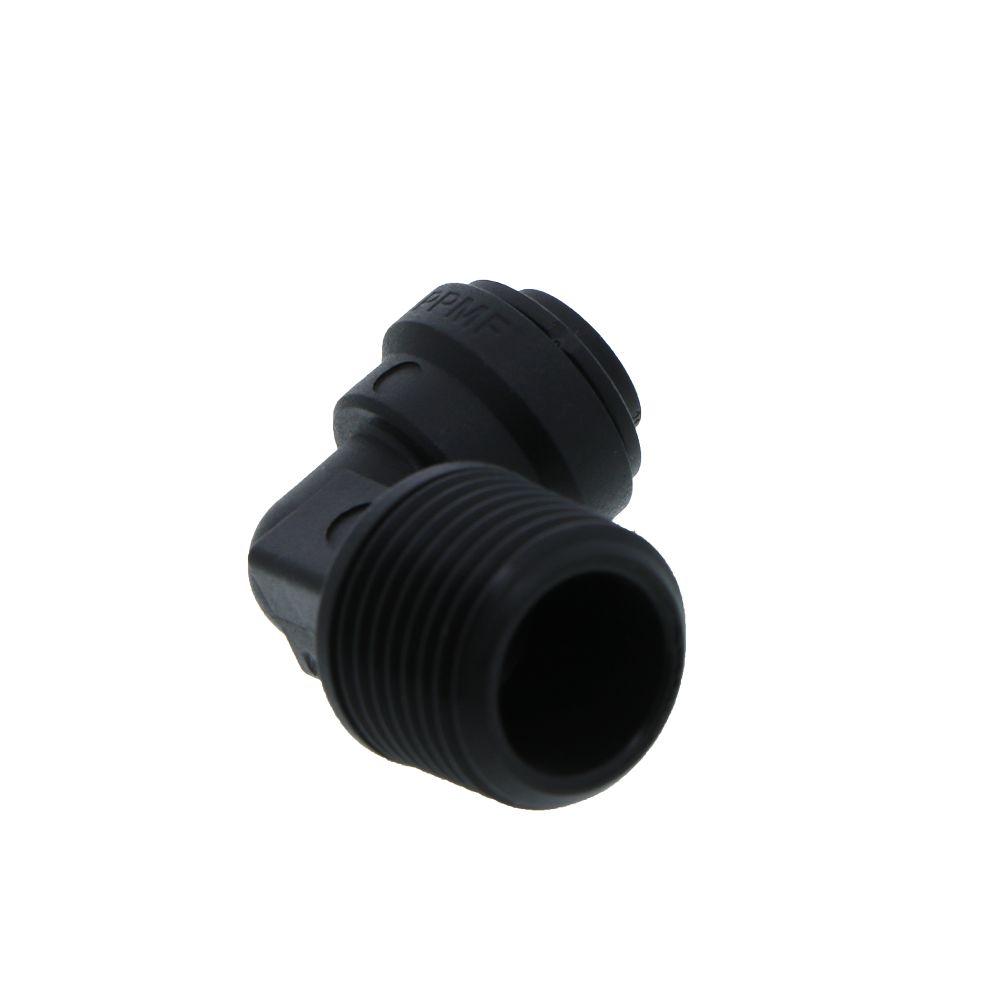

John Guest Fixed Elbow NPTF Black Polypropylene - 1/4 x 3/8 NPTF

The John Guest fixed elbow makes connecting OD tubing sizes to female NPT threads quick and easy. Manufactured in polypropylene with a food-grade EPDM O-ring, these fittings were developed for the water purification and beverage dispense markets. They are also suitable for use in agricultural spraying, farm/dairy equipment, chemical dispense, car washing, and a variety of other applications.

Features:

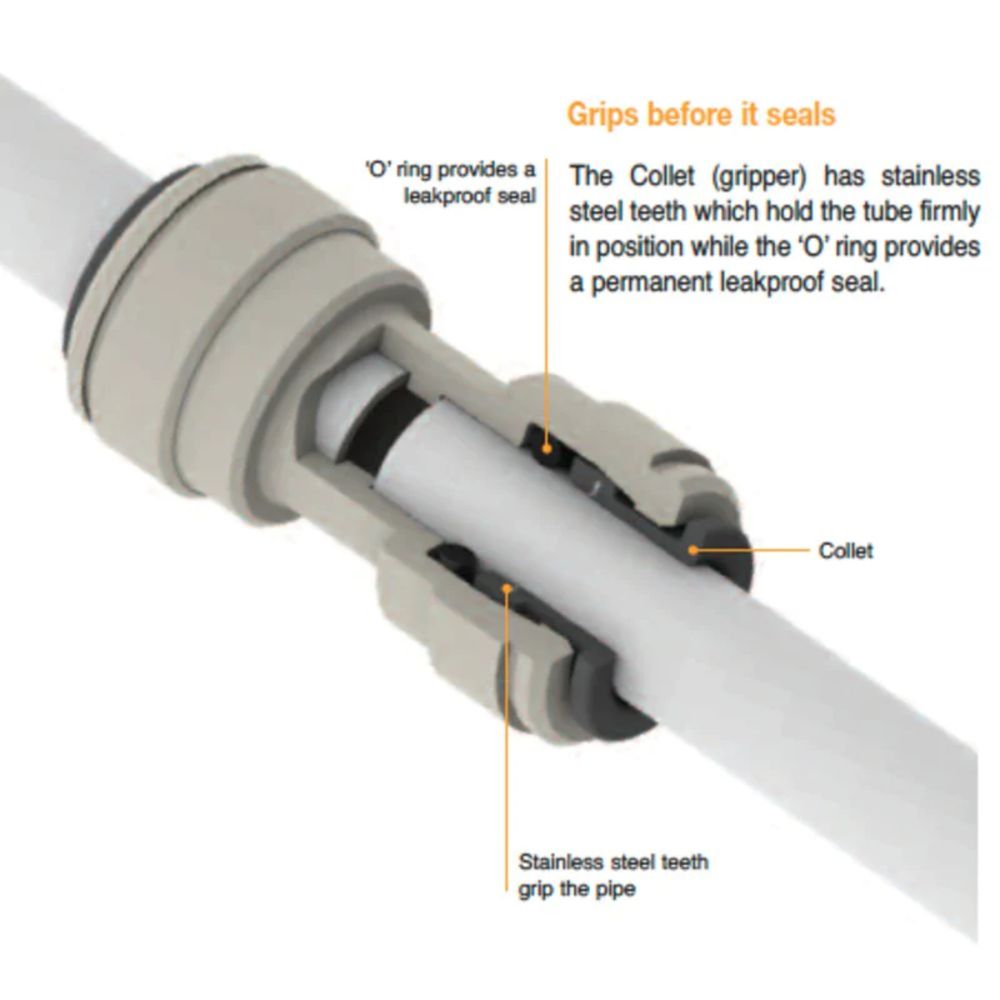

• Push-fit technology creates reliable, leak-free connections
• Used to connect OD tubing sizes to female NPT threads
• Compatible with plastic or copper OD-sized tubing
• Connect, disconnect, and reconnect in seconds without tools
• Food quality and suitable for potable liquids and pure water applications
• Polypropylene body with EPDM O-ring
• UV stabilized
• Made with lead-free materials

Working Pressure and Temperature:

• Max. 150 psi at 70°F
• Max. 60 psi at 140°F

Note: Not suitable for compressed air or vacuum applications.

Polypropylene (PP) fittings are for water only. The material is too soft, and the EPDM seal is unsuitable for compressed air applications.
