Home / Fittings & Valves / Fittings / John Guest Fixed Elbow NPTF - 1/4 QC x 1/8 MPT
  • John Guest Fixed Elbow NPTF - 1/4 QC x 1/8 MPT
  • John Guest Fixed Elbow NPTF - 1/4 QC x 1/8 MPT
  • John Guest Fixed Elbow NPTF - 1/4 QC x 1/8 MPT
  • John Guest Fixed Elbow NPTF - 1/4 QC x 1/8 MPT
  • John Guest Fixed Elbow NPTF - 1/4 QC x 1/8 MPT
  • John Guest Fixed Elbow NPTF - 1/4 QC x 1/8 MPT
  • John Guest Fixed Elbow NPTF - 1/4 QC x 1/8 MPT
1 7
John Guest

John Guest Fixed Elbow NPTF - 1/4 QC x 1/8 MPT

John Guest Fixed Elbow NPTF - 1/4 QC x 1/8 MPT

CI480821W-US:10PK

Pricing is available for wholesale customers only, please login to see prices.

Interested in becoming a partner?
Click here for more info.

In stock

Choose:

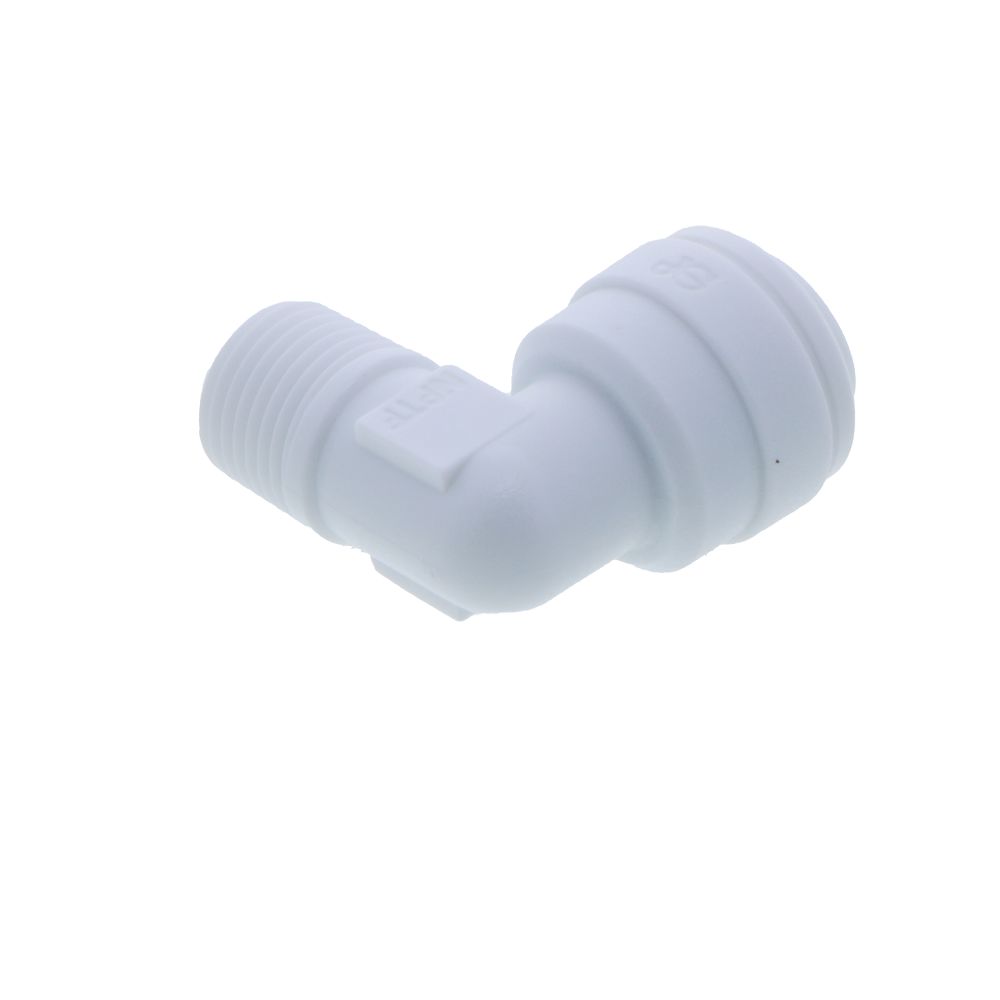

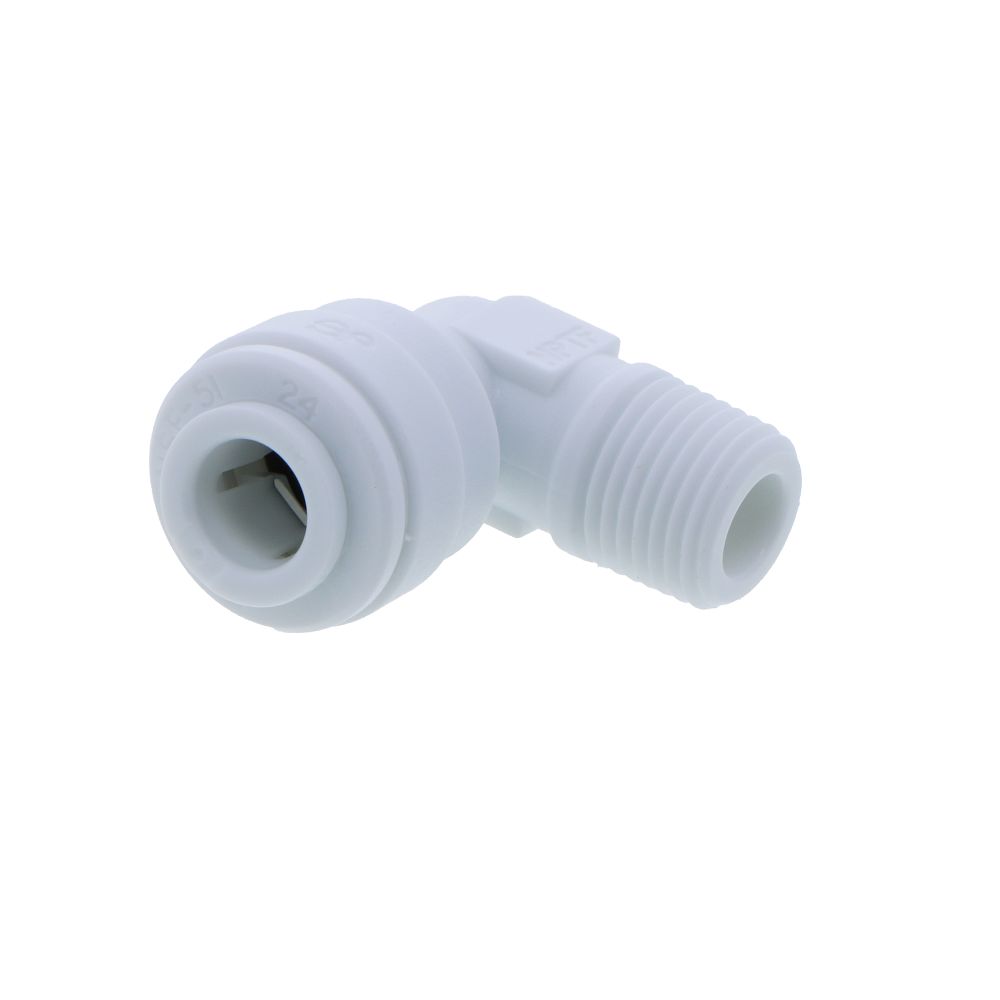

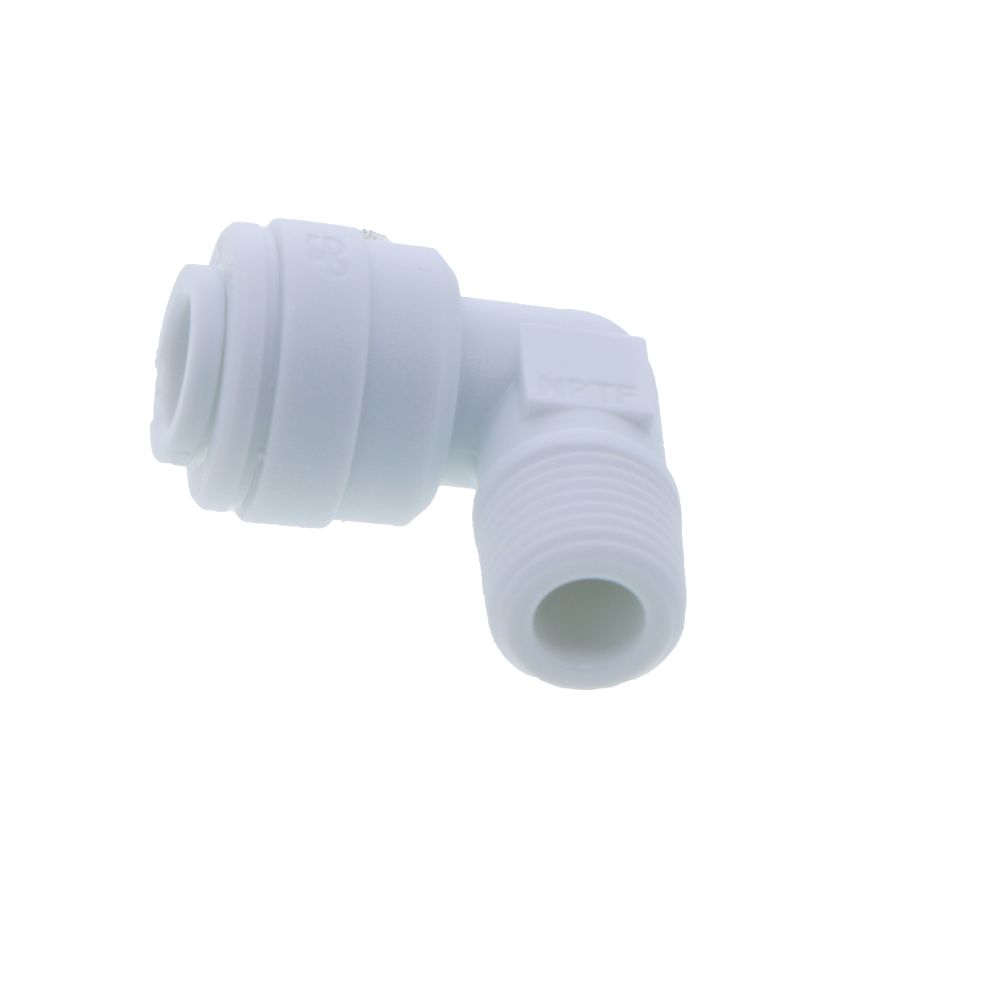

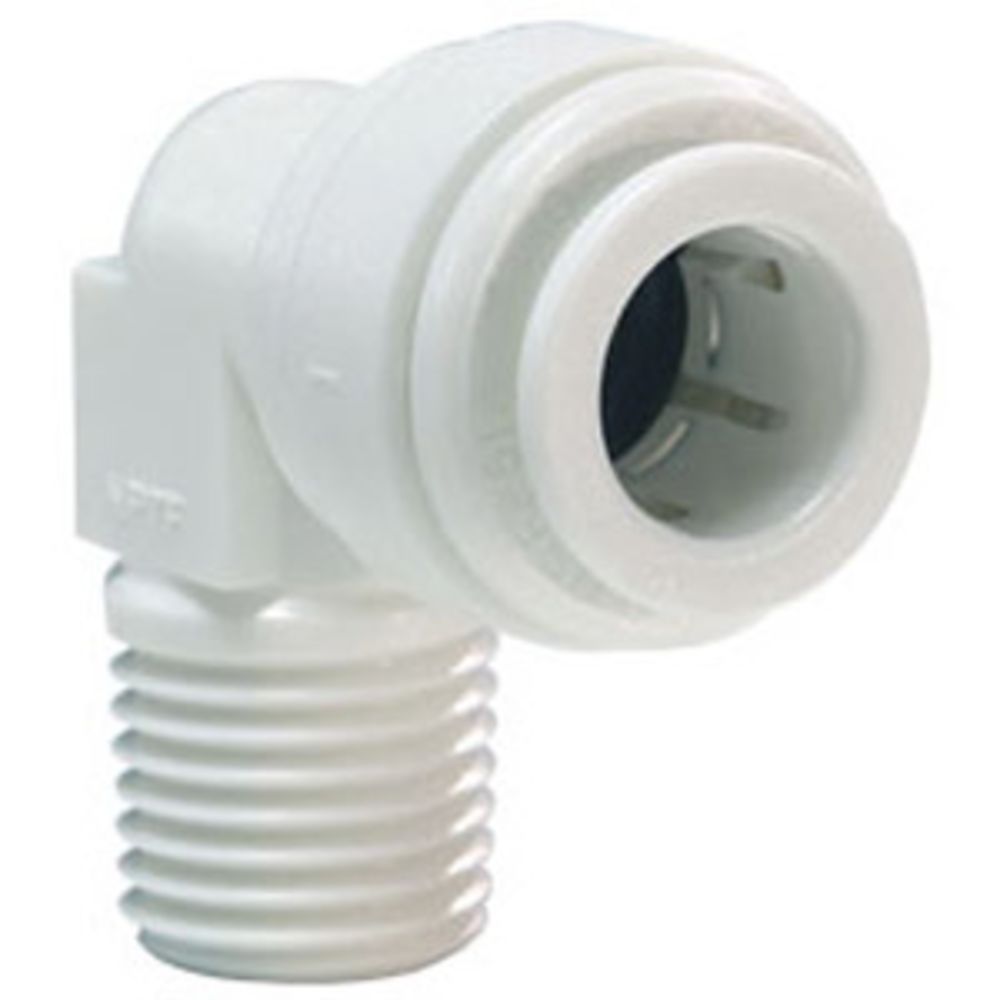

The John Guest fixed elbow makes connecting tubing to male (MPT) threads quick and easy. Manufactured in white acetal with food grade EPDM O-ring, these fittings were developed for the residential filtered water market but are also suitable for other potable liquids.

Features:

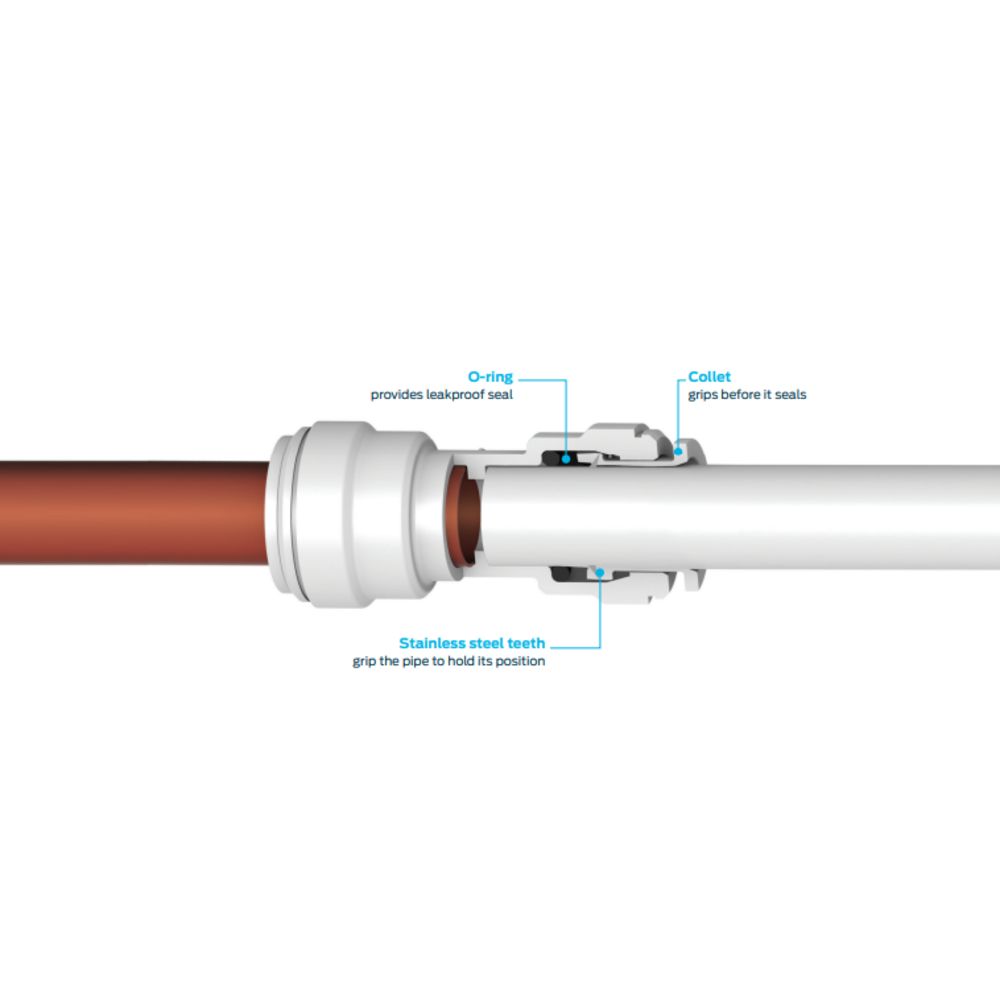

  • Push-fit Technology creates reliable, leak-free connections
  • Used to connect OD tubing sizes to female NPT threads
  • Compatible with plastic or copper OD sized tubing
  • Connect, disconnect, and reconnect in seconds without tools
  • Food Quality and suitable for potable liquids and pure water applications
  • Acetal body with food grade EDPM O-Ring
  • Made with lead free materials
Working pressure and temperature:

  • Max. 150 psi at 70° F
  • Max. 100 psi at 150° F
Note: Not suitable for compressed air and vacuum applications.


Note: These items are not suitable air/pneumatic or vacuum applications.

JG white acetal is not suitable for air due to seal consisting of EPDM.



Compatible Tubing

Compatible tubing for John Guest fittings

Documents

John Guest Fixed Elbow NPTF - 1/4 QC x 1/8 MPT Manual
