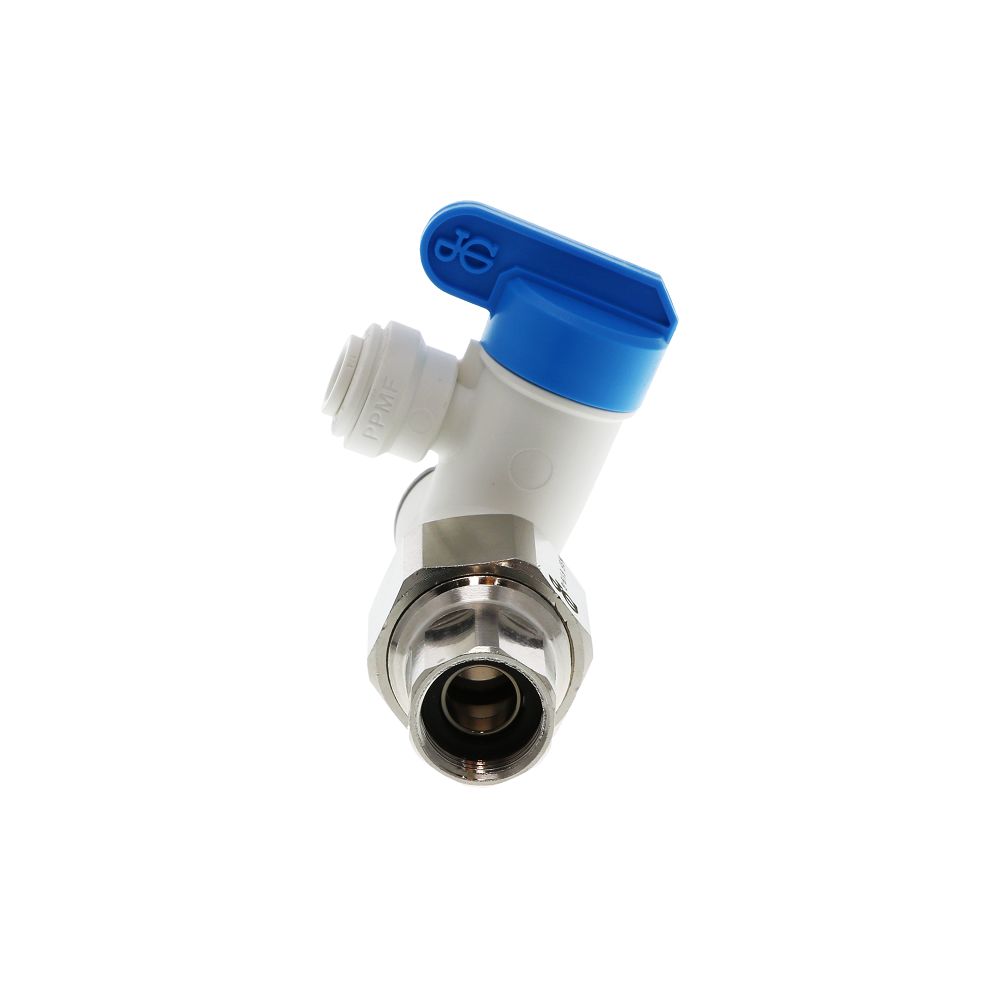

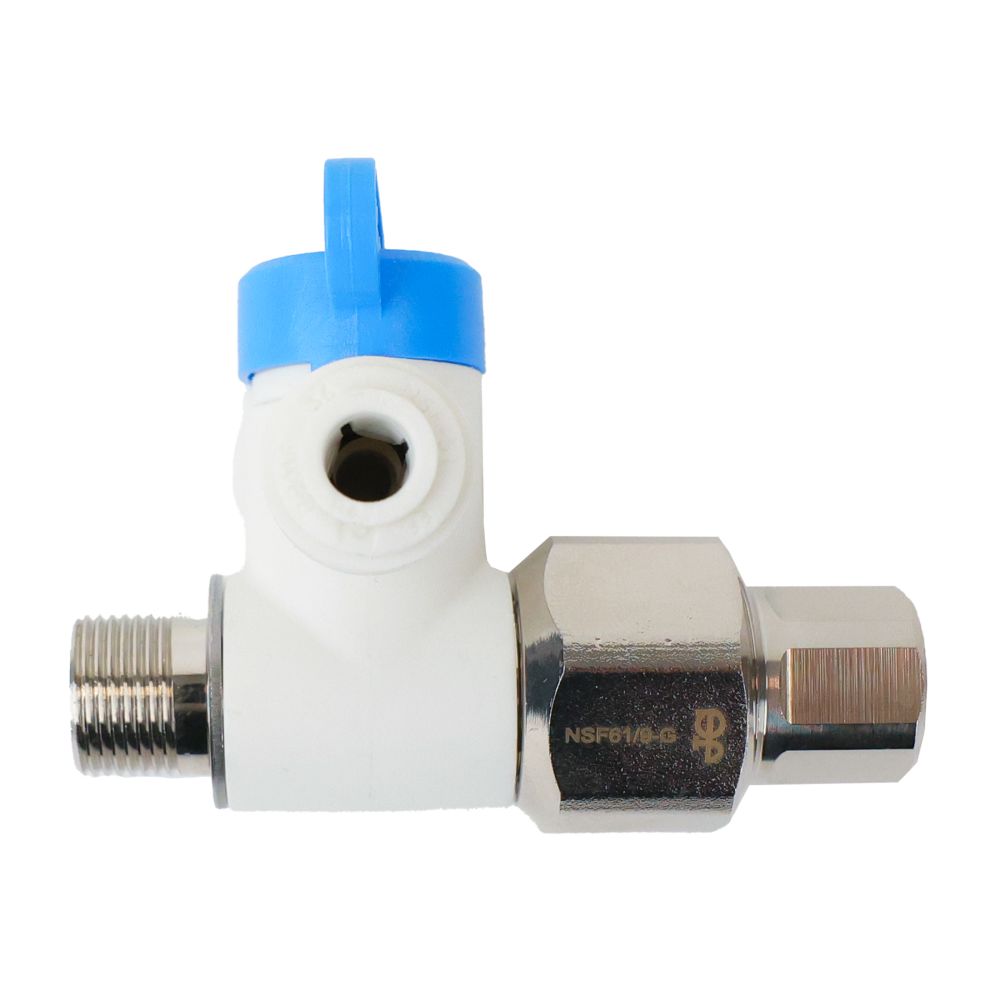

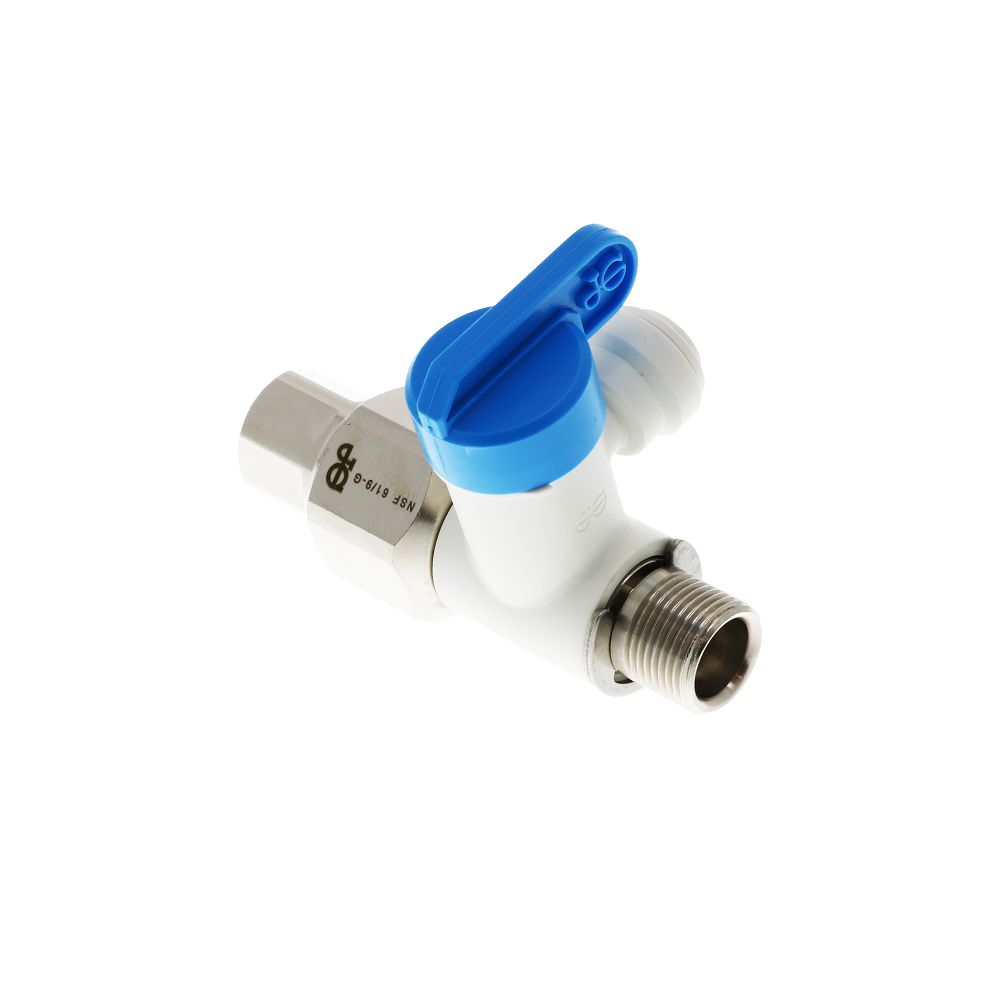

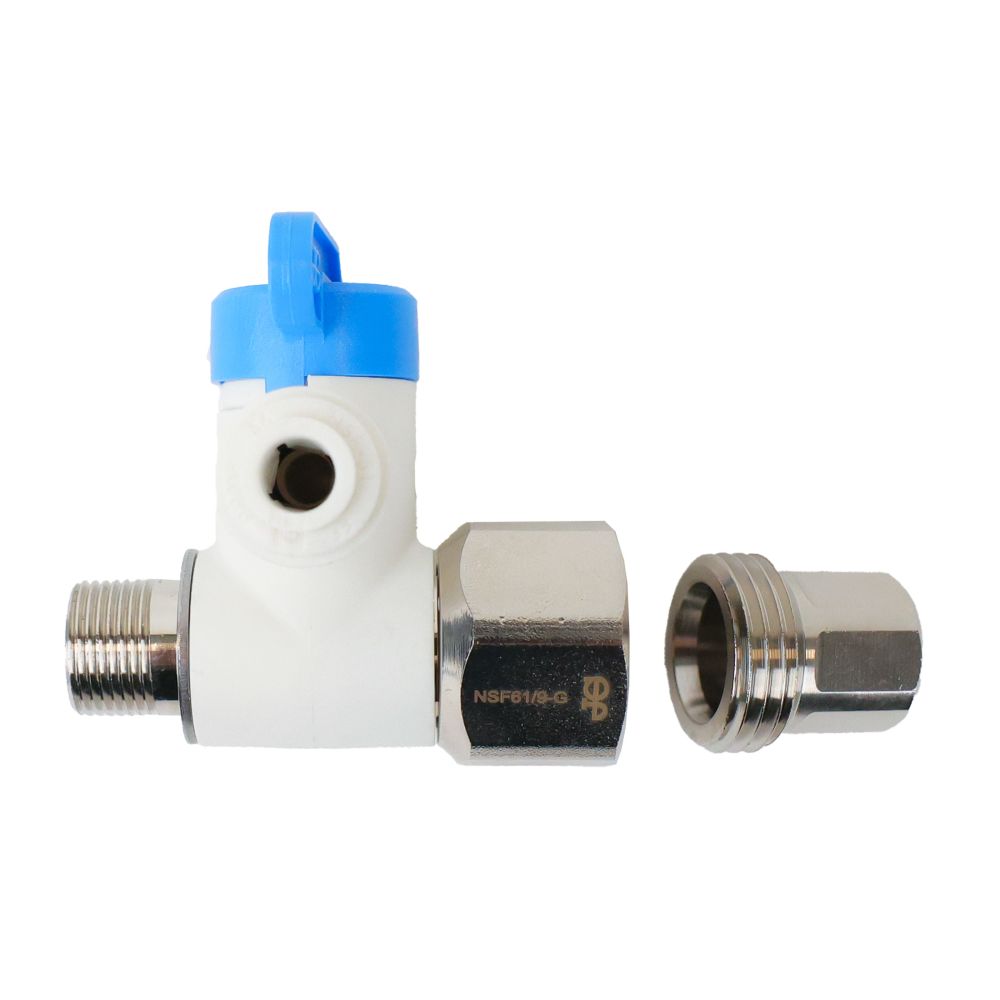

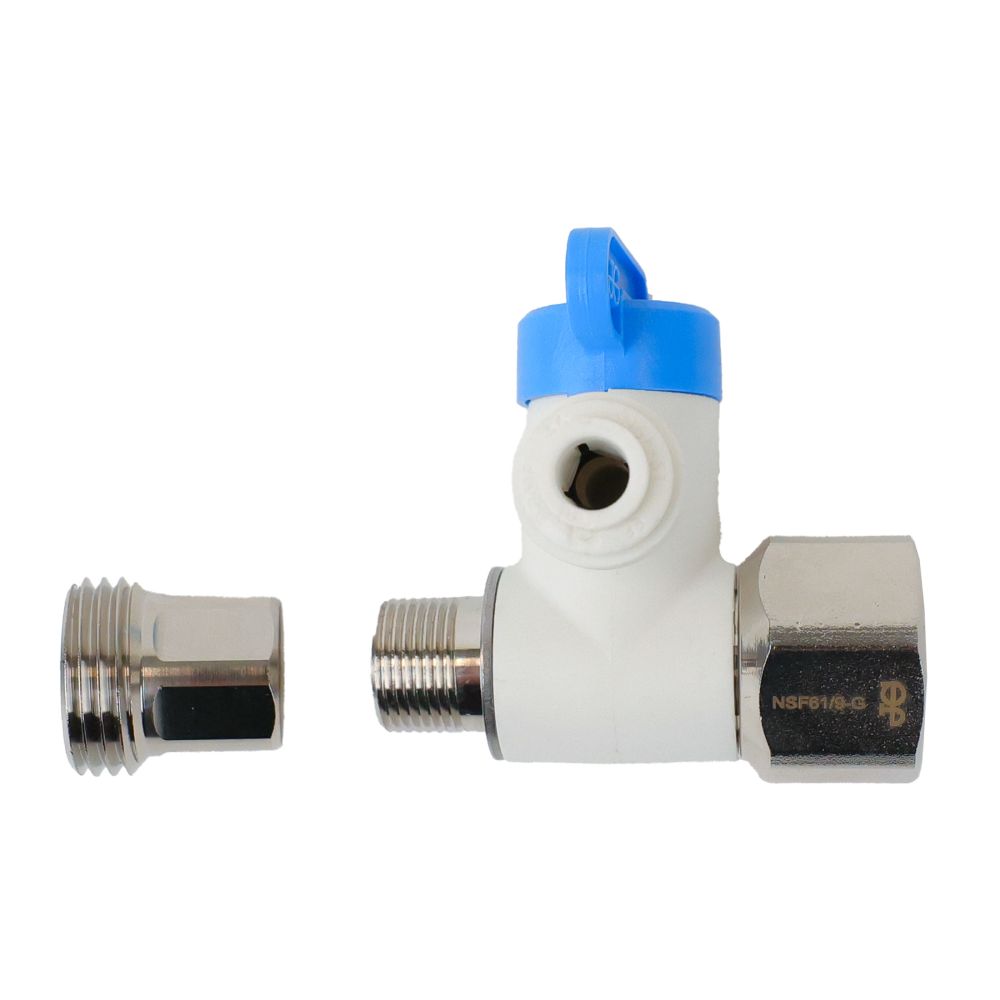

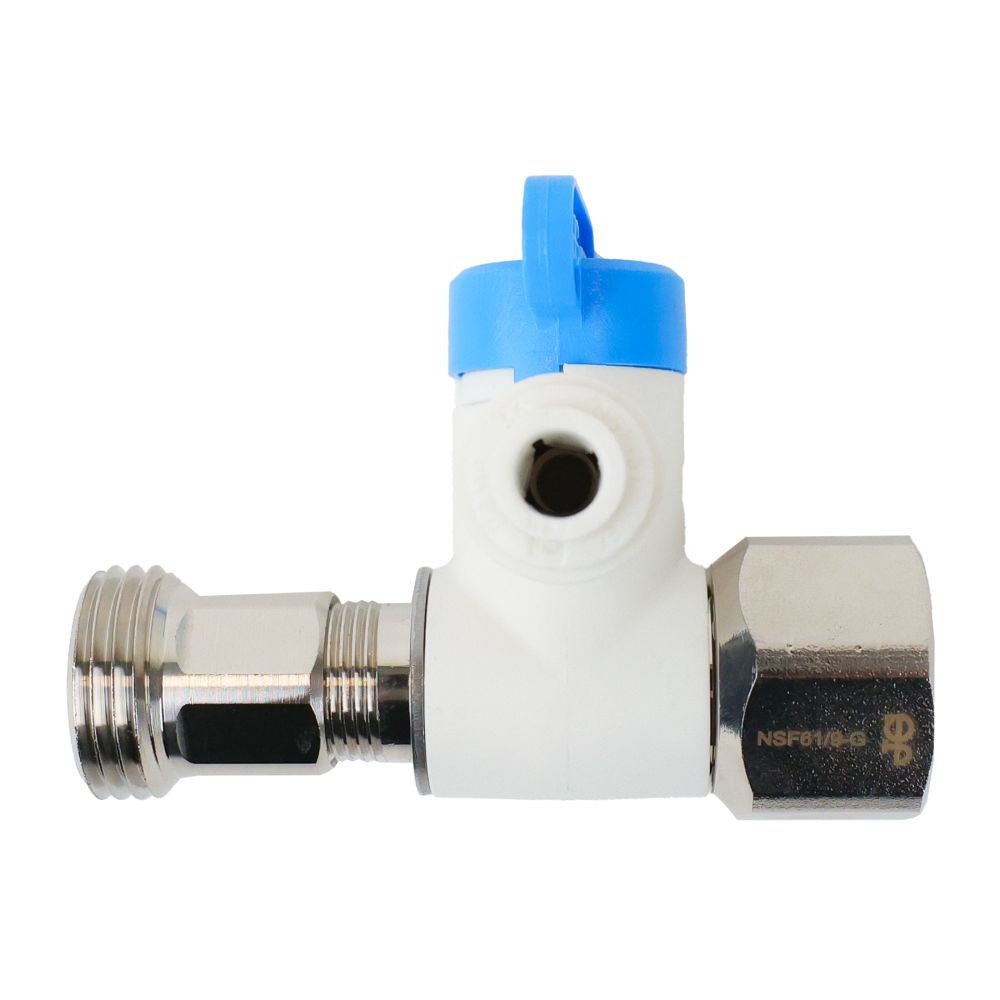

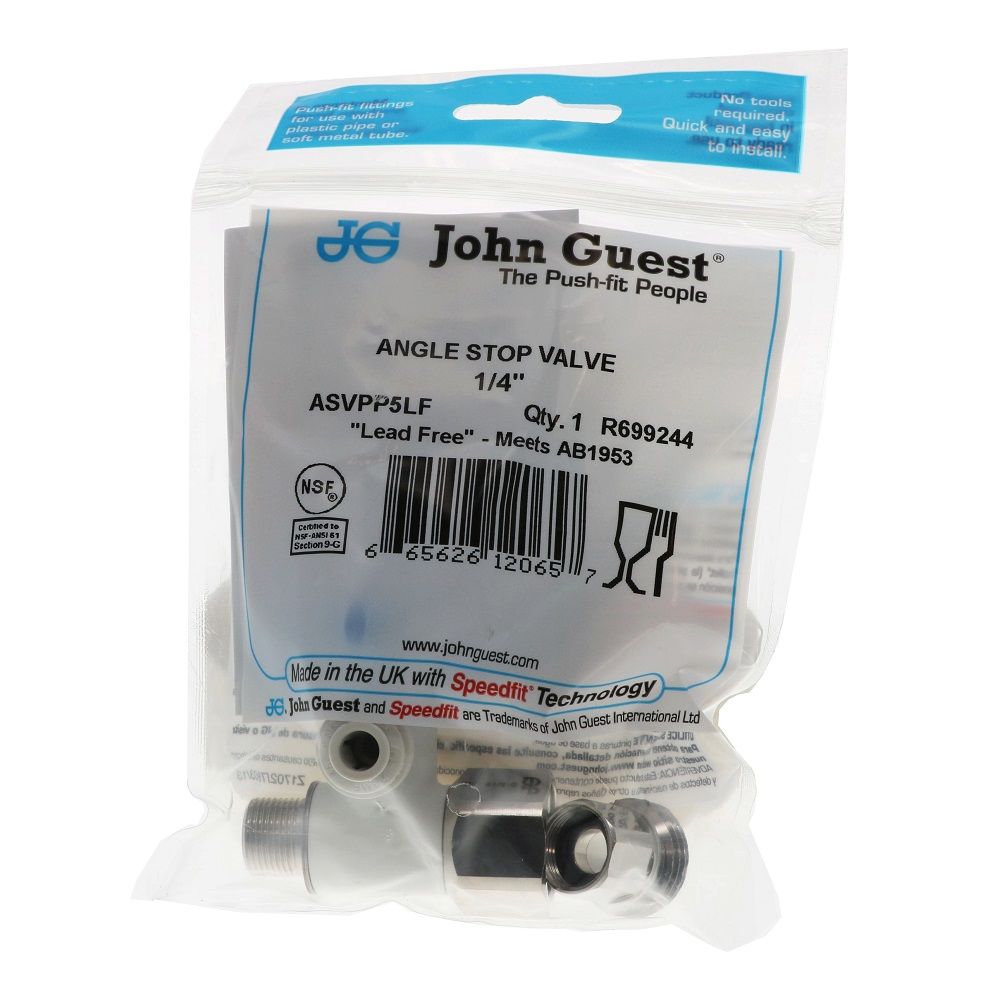

John Guest Angle Stop Adapter Valve Lead-Free - 1/2 x 3/8 x 1/4

SKU:ASVPP5LF:30PK

Pricing is available for wholesale customers only, please login to see prices.

Interested in becoming a partner?
Click here for more info.

Low stock

Choose: Box of 30 Box of 150 Box of 300

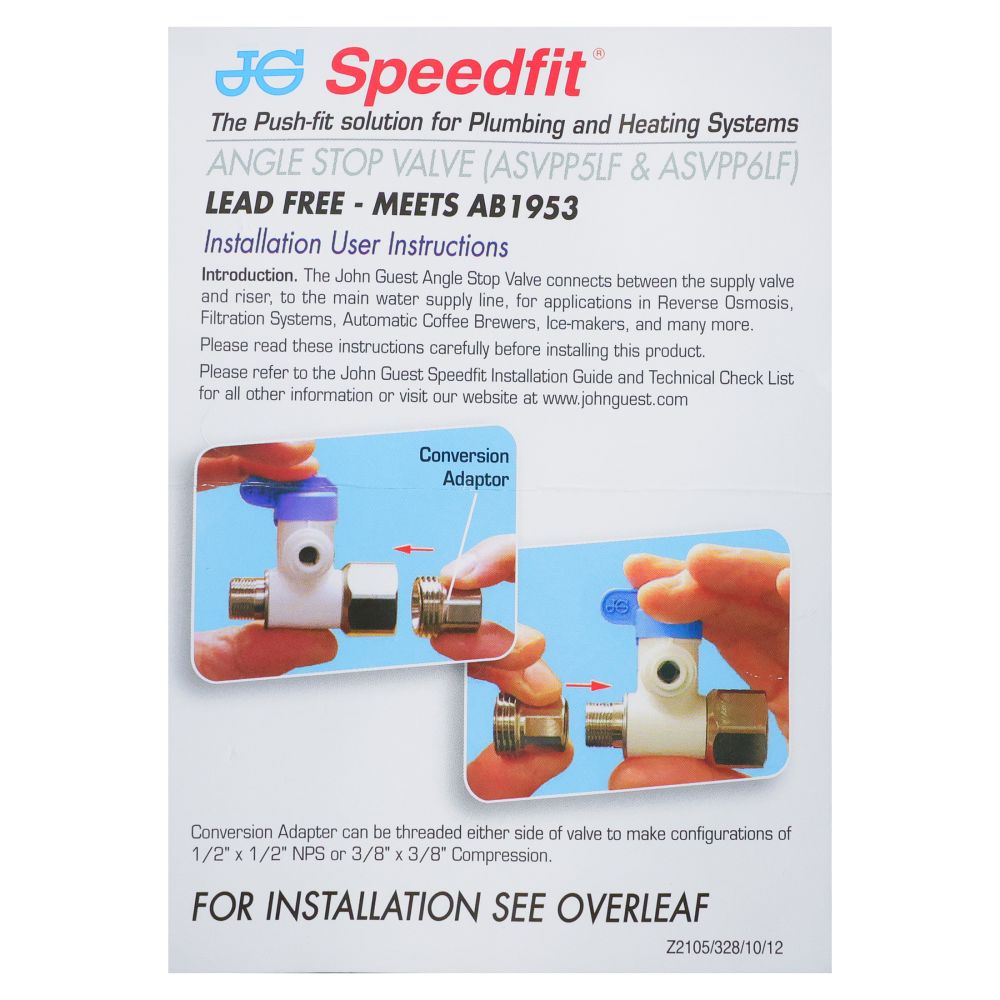

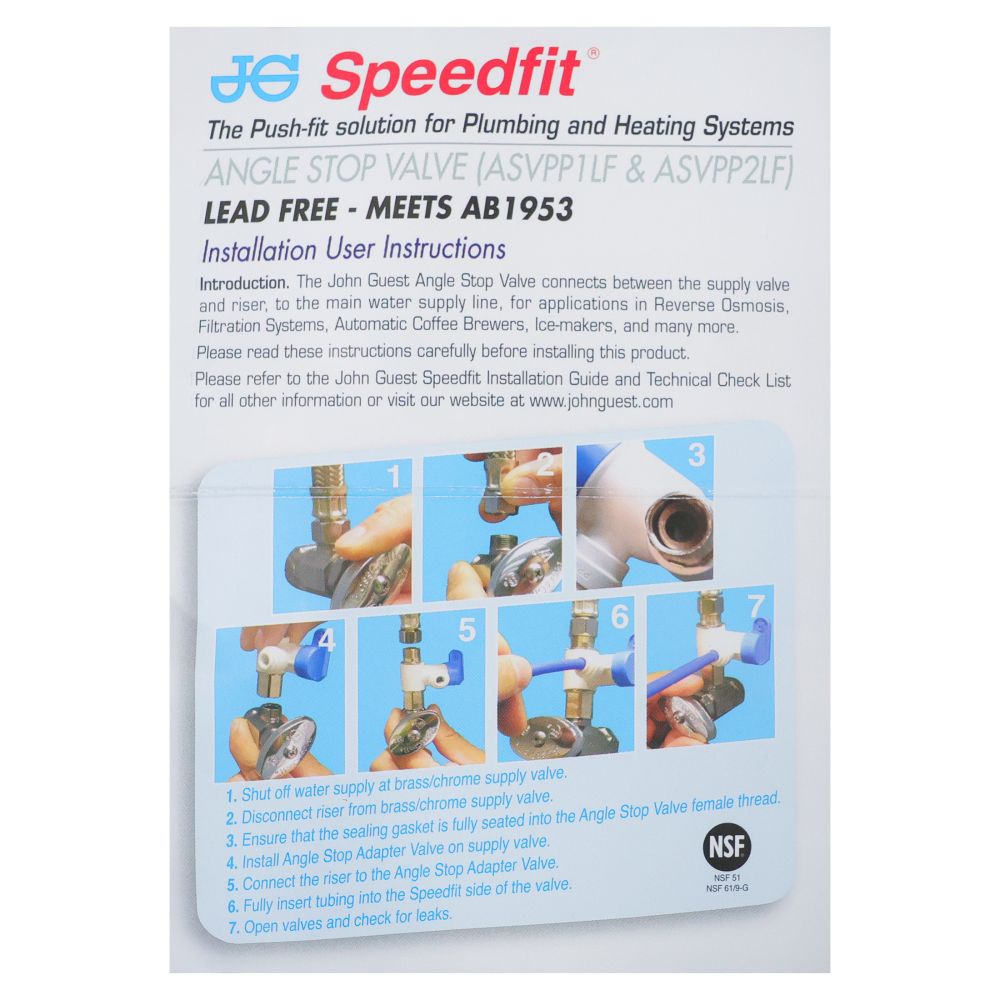

The John Guest Angle Stop Adapter Valve provides an easy way to add a water feed supply from an existing chrome supply stop valve. These valves connect between the chrome supply stop and riser to provide a water supply feed line for water filtration systems, RO systems, coffee machines, and ice makers. The Push-fit technology makes installations quick and easy. They are manufactured in white polypropylene with food grade EPDM seals, with plated lead-free brass threads.

Features:

For use with plastic or copper OD sized tubing
For cold water supply use only
Threads onto 3/8 in compression chrome supply stop
Quarter turn to open or close
White Polypropylene body, EPDM seals
Lead Free materials

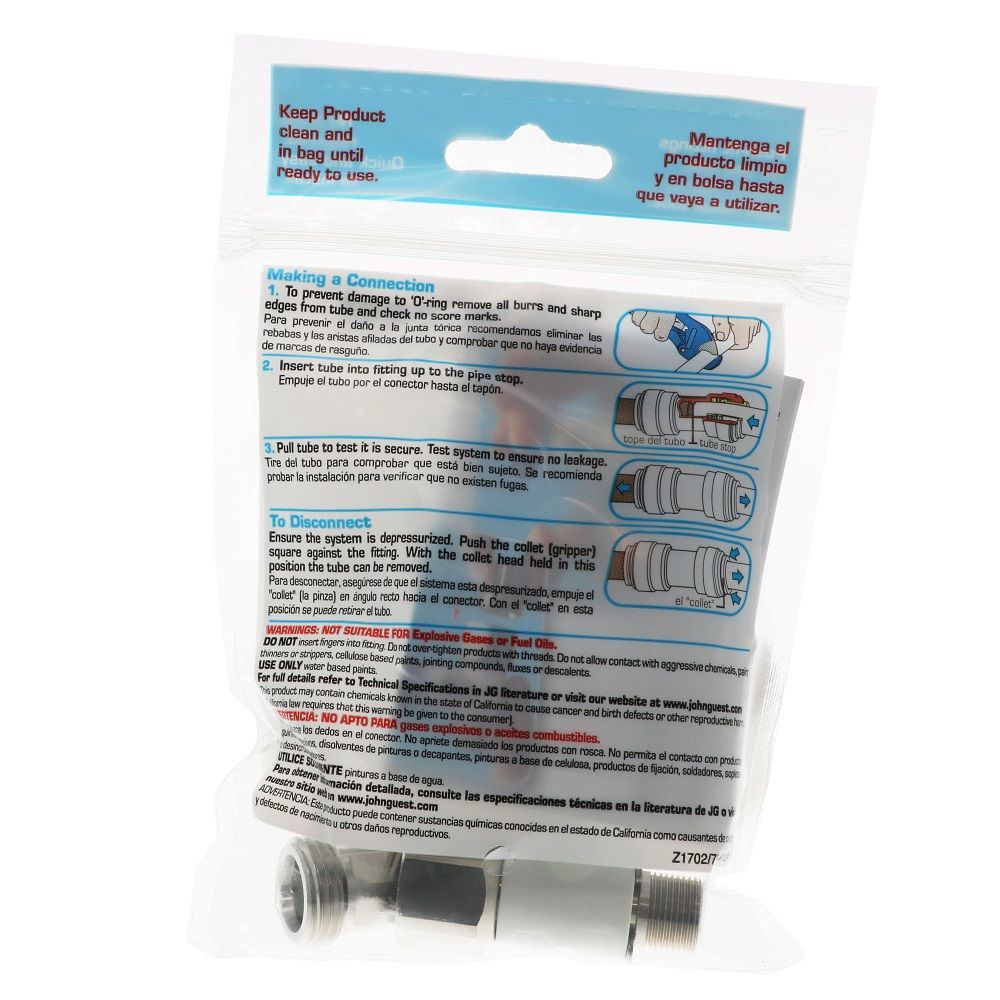

Quick and easy connection/disconnection
NSF51 and NSF61 listed
Not suitable for compressed air, explosive gases, petroleum spirits and other fuels or for heating systems

Working pressure & temperature:

Max 150 psi at 70°F
Max 60 psi at 140°F

Do Not Use these Valves:

In a partially open position to control flow
To provide a permanent termination
Without tubing assembled or plugged (or threaded connections sealed)
As a tap of “faucet”
