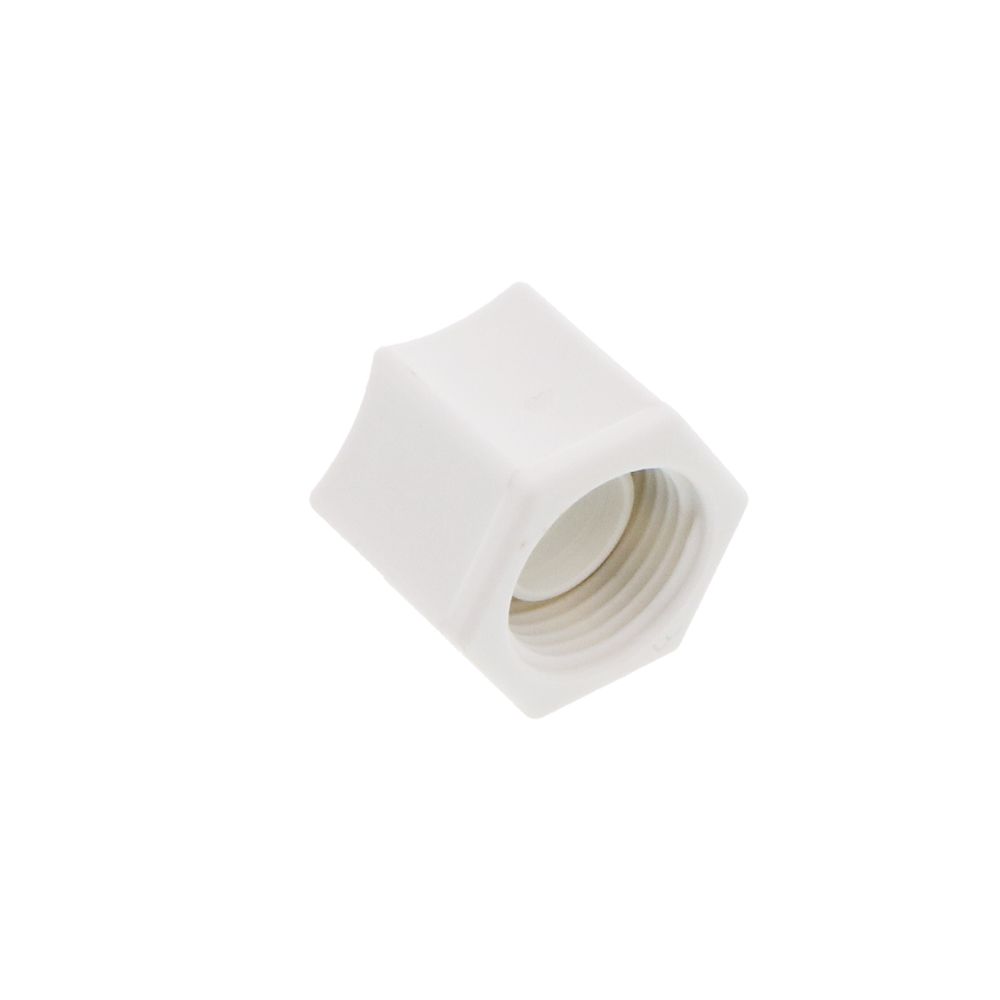

JACO P-PG-6 Polypropylene Plastic Gripper Nut 3/8 OD Tube

JACO polypropylene fittings have good chemical resistance
and are unaffected by most weak acids and alkalies. Below 175°F they have good resistance to organic solvents. They should not be used with oxidants or strong acids or in continuous sunlight. The polypropylene used in JACO fittings is 20% glass filled for improved stiffness and is NSF listed.

Advantages of JACO fittings over metal compression fittings:

• Good electrical insulating qualities. This eliminates the electrolytic action that corrodes tubing, caused by a dissimilar metal meeting a fitting.
• Low density and softness of plastic gives JACO fittings the ability to absorb mechanical and acoustical vibrations.
• Low resistance to flow due to the smooth internal surface of the fittings.
• Resistance to scale buildup.

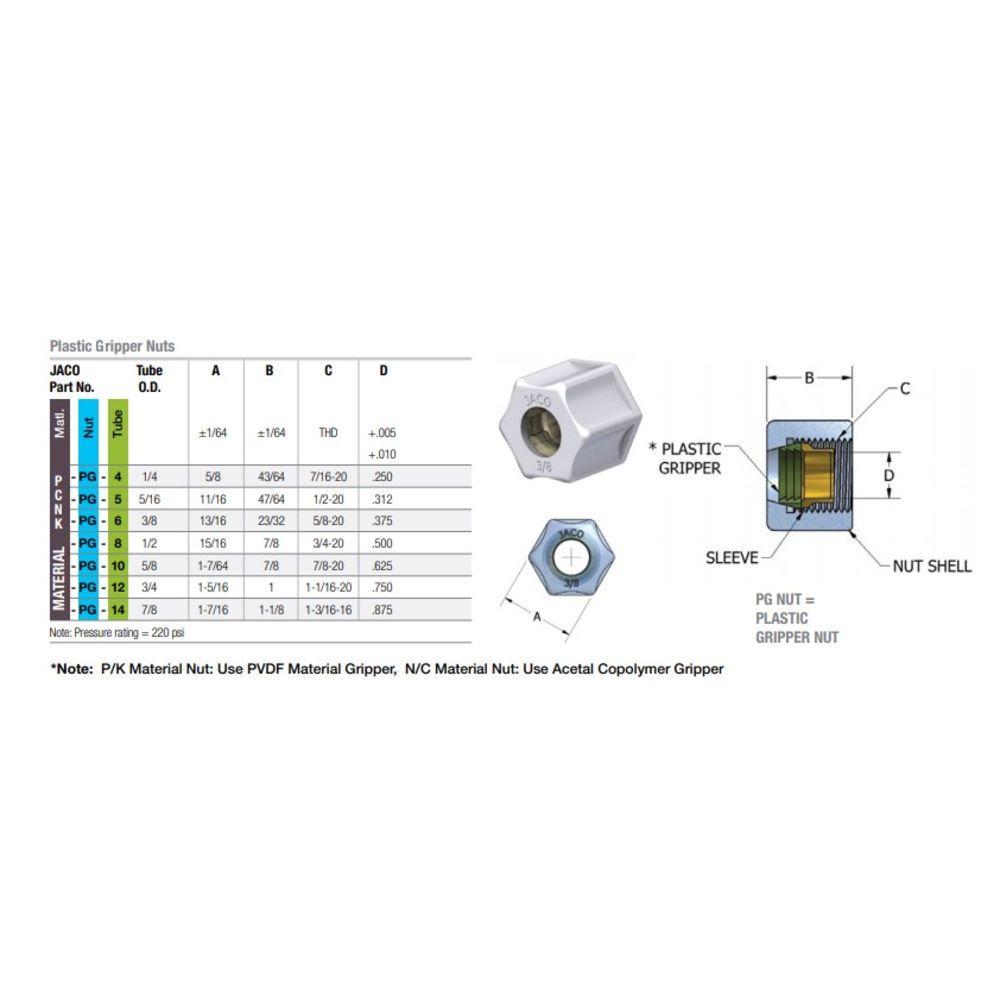

Specifications
:

• Connections: 3/8" OD tube
• Fitting Material: polypropylene
• Ferrule nut with plastic gripper for use with plastic tubing
• Ferrule nut thread size: 5/8-20
• Max Pressure: 220 psi
• Temperature Range: -30° - 215° F
• Color: opaque white
• Compatible With: Stenner Connecting nut 3/8"

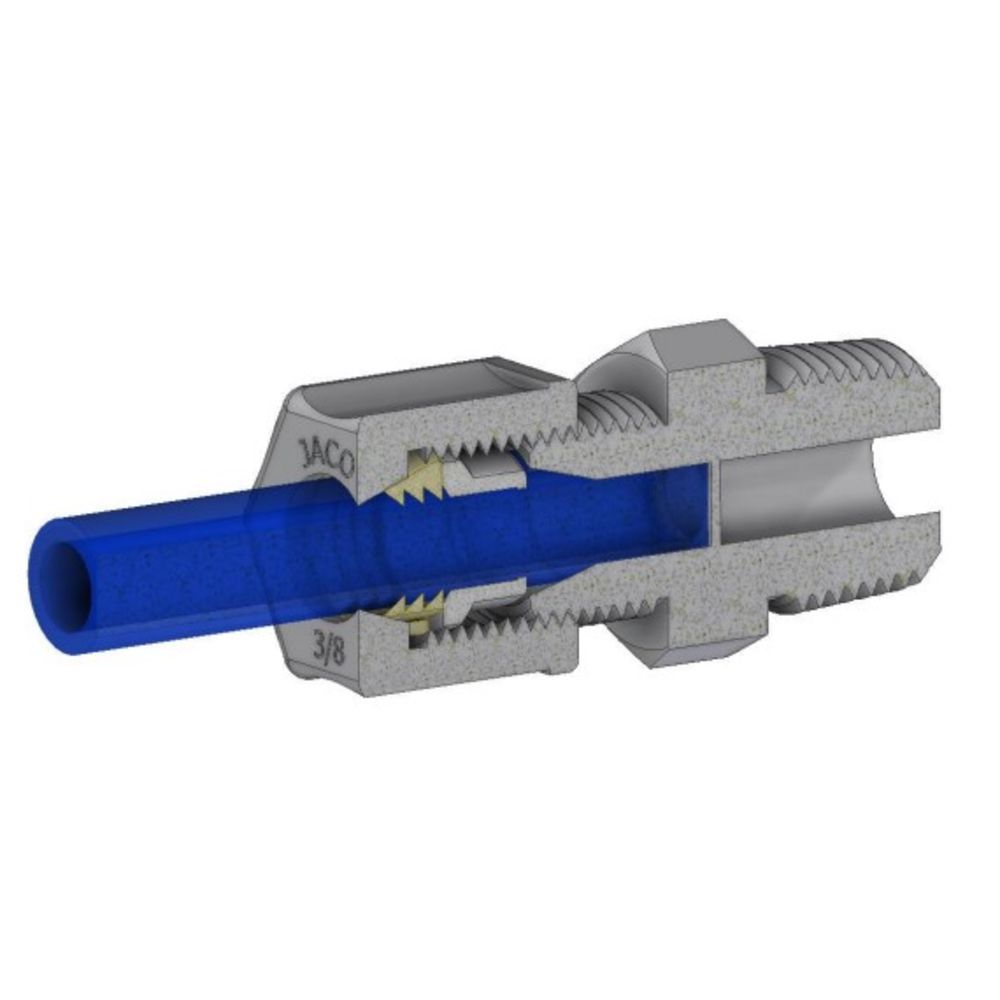

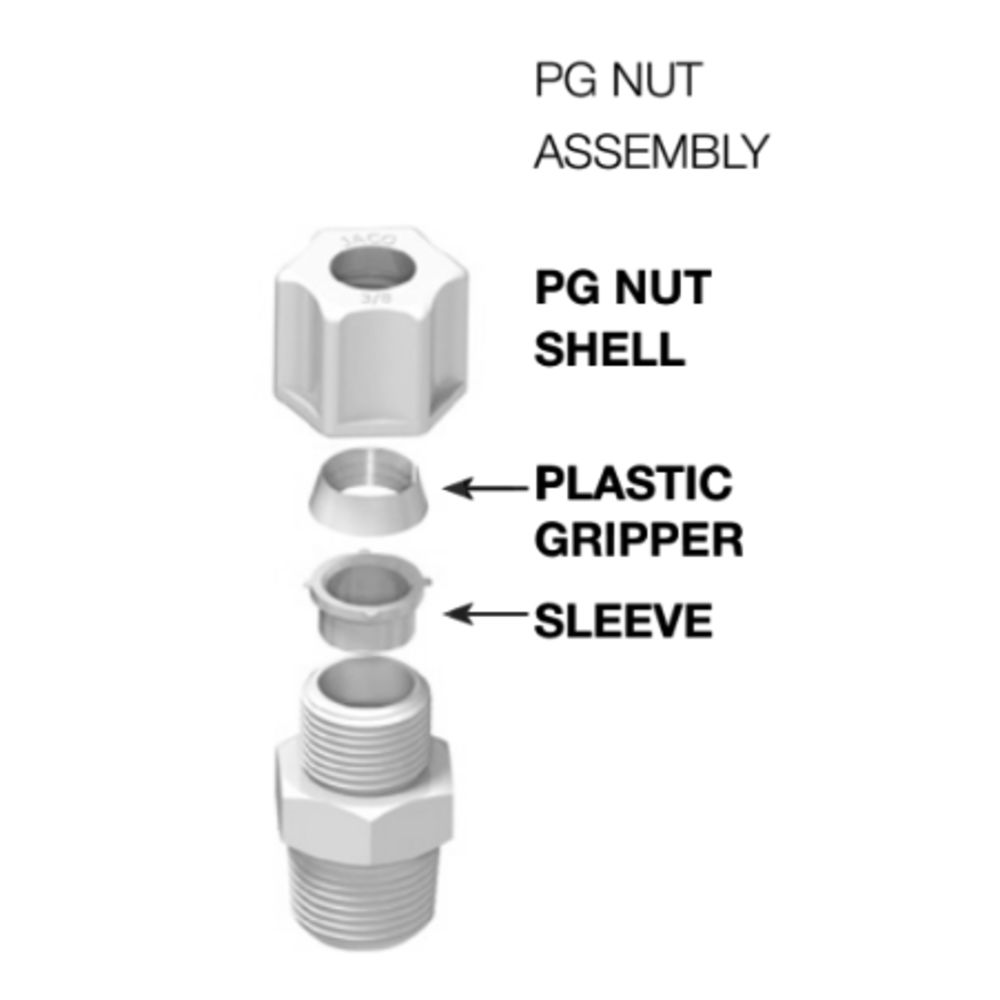

Note: Parts are pre-assembled as shown in the first and second image.
