JACO P-P-8 Polypropylene Tube Insert For 1/2" OD Tubing

SKU:P-P-8:100PK

Pricing is available for wholesale customers only, please login to see prices.

Interested in becoming a partner?
Click here for more info.

In stock

Choose: 100-Pack

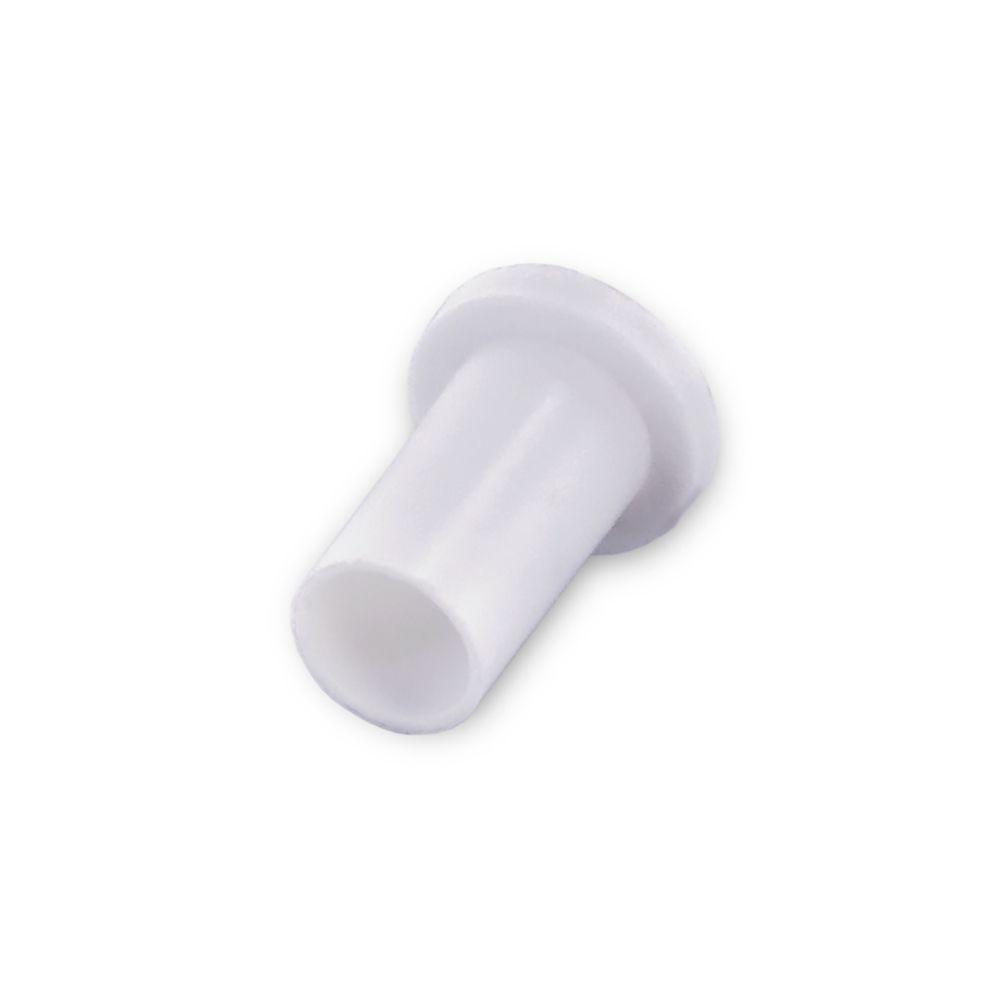

Jaco P-P-8 Polypropylene Insert Tube Fittings are used in soft or thin wall tubing's. The inserts will not wear a hole in the tubing and provides a grip to prevent sliding due to heat expansion. Polypropylene insert eliminates the need for special high temperature inserts.

Specifications:

Tubing Size: 1/2" OD
Inner Diameter of Fitting: 0.3"
Length Of Fitting: 9/16"

Advantages of JACO fittings over metal compression fittings:

Good electrical insulating qualities. This eliminates the electrolytic action that corrodes tubing, caused by a dissimilar metal meeting a fitting.
Low density and softness of plastic gives JACO fittings the ability to absorb mechanical and acoustical vibrations.
Low resistance to flow due to the smooth internal surface of the fittings.
Resistance to scale buildup.

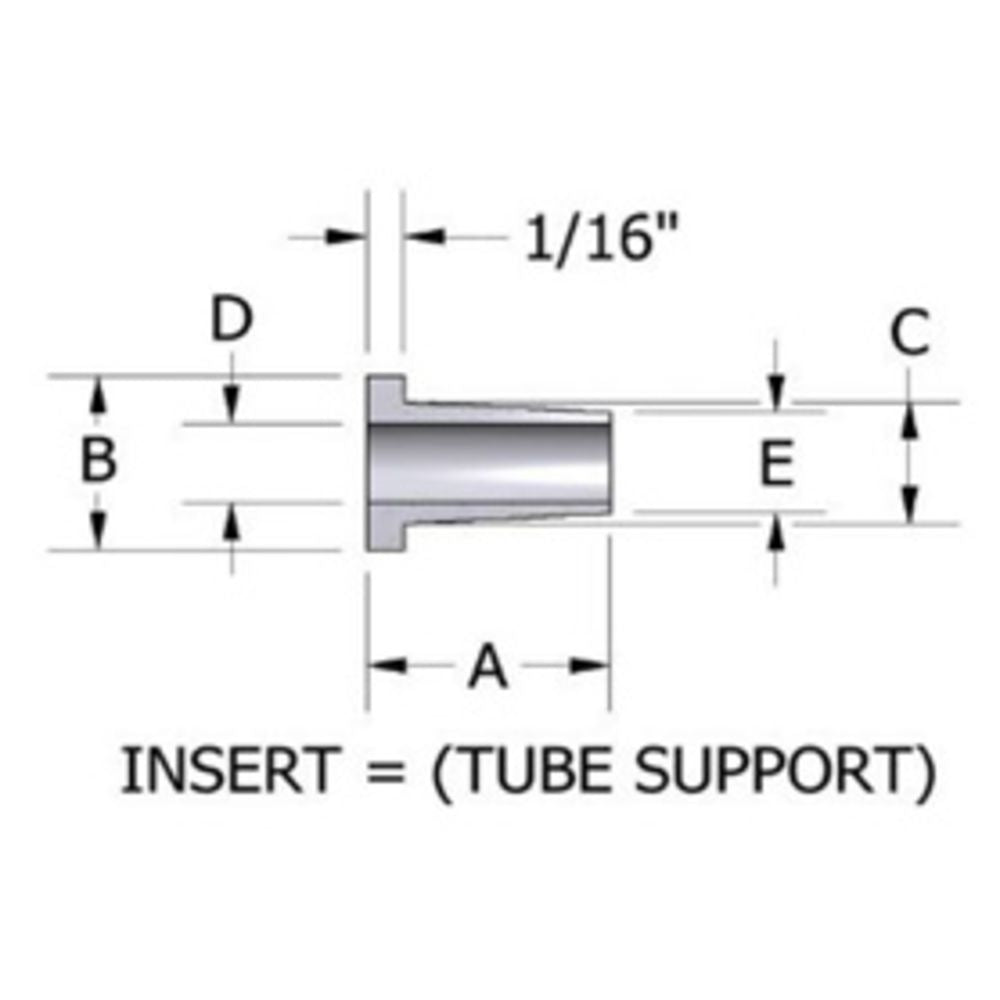

Jaco Part Numbers	Tube Size (O.D.)	A	B	C	D	E
P-P-4	1/4	3/8	.240 - .250	.199	1/8	.167
P-P-5	5/16	13/32	.300 - .312	.217	9/64	.180
P-P-6	3/8	1/2	.360 - .370	.245 - .250	.200	.235
P-P-8	1/2	9/16	.475 - .490	.370 - .375	.300	.350
All Measurements listed above are in Inches
