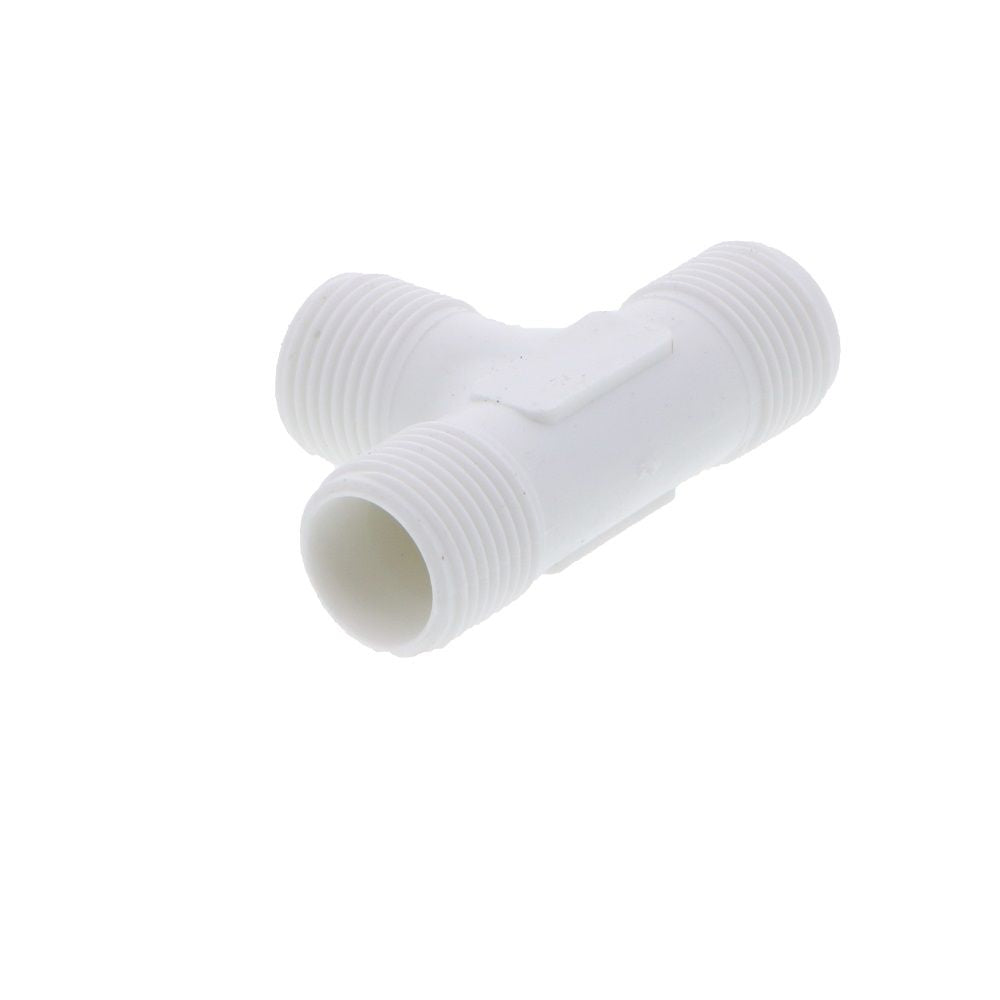

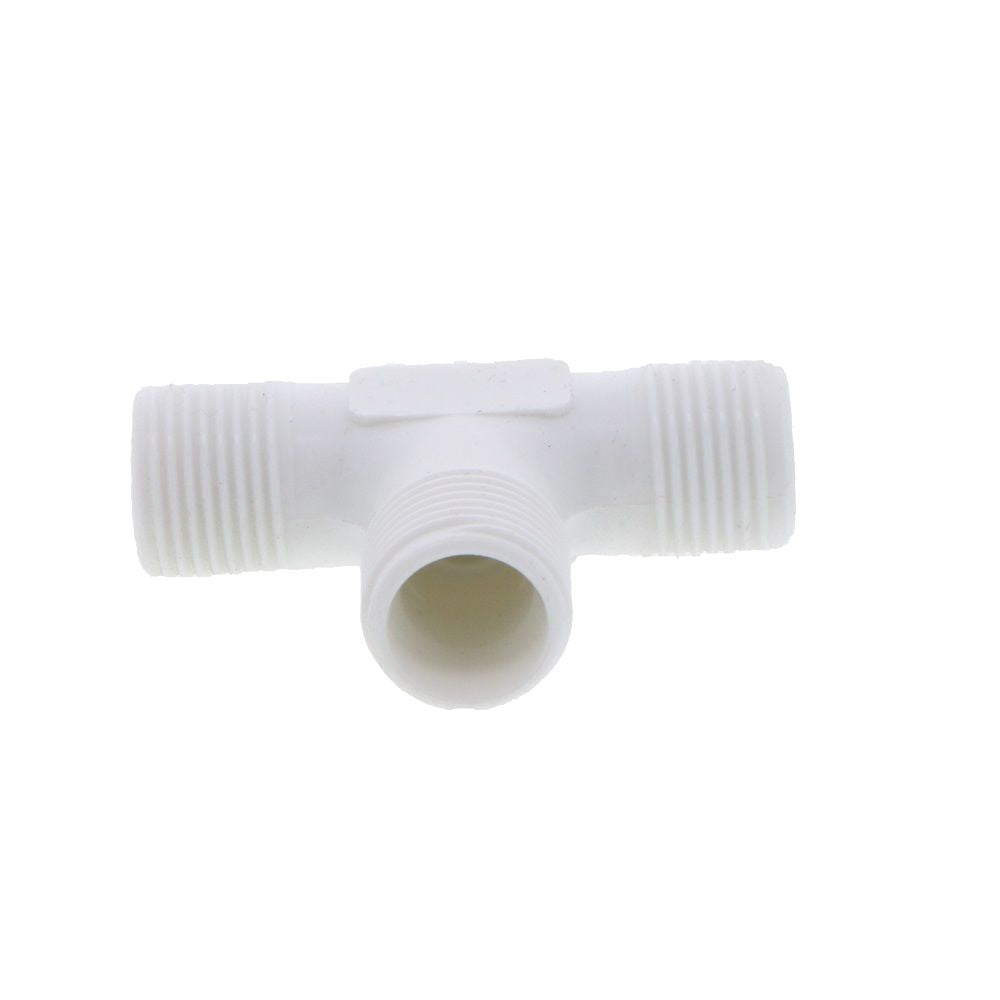

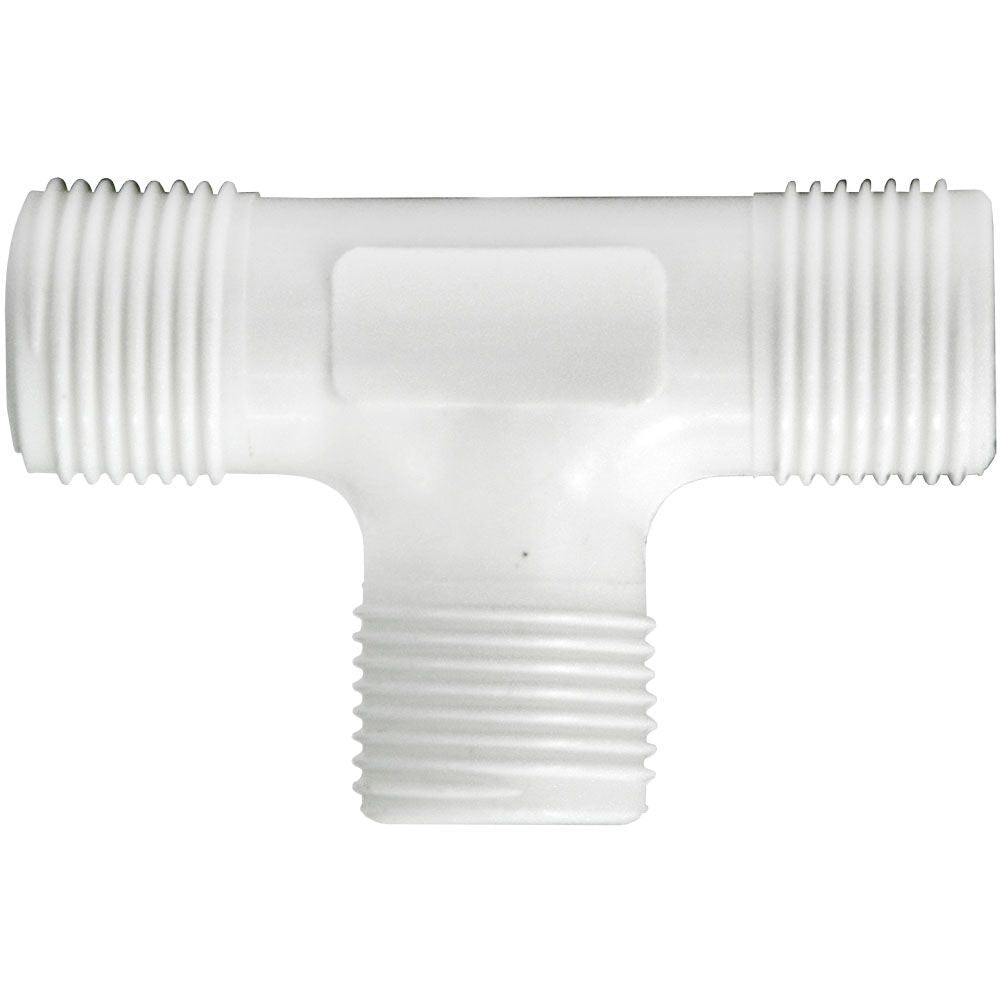

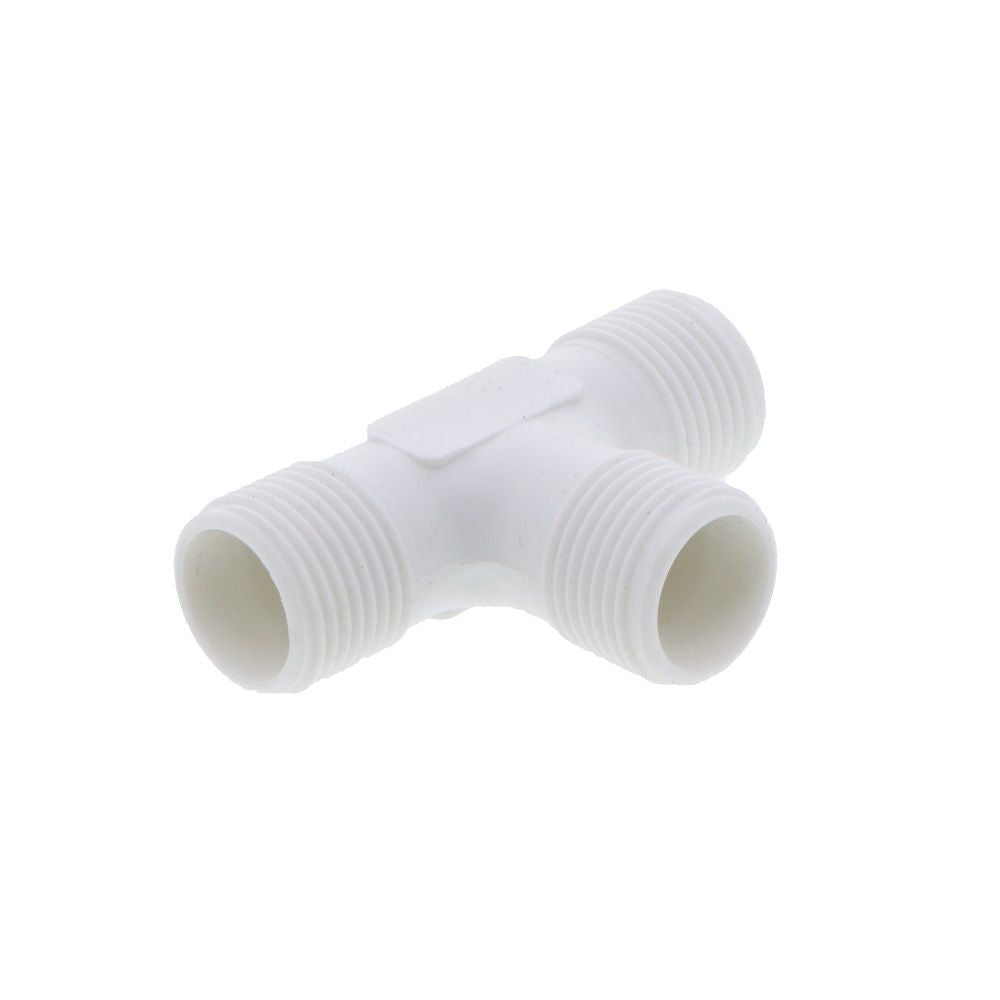

JACO 70-6-P Polypropylene Union Tee 3/8 OD Tube x 3/8 OD Tube x 3/8 OD Tube - Single

JACO polypropylene fittings have good chemical resistance and are unaffected by most weak acids and alkalies. Below 175°F they have good resistance to organic solvents. They should not be used with oxidants or strong acids or in continuous sunlight. The polypropylene used in JACO fittings is 20% glass filled for improved stiffness and is NSF listed.

Advantages of JACO fittings over metal compression fittings:

• Good electrical insulating qualities. This eliminates the electrolytic action that corrodes tubing, caused by a dissimilar metal meeting a fitting.
• Low density and softness of plastic gives JACO fittings the ability to absorb mechanical and acoustical vibrations.
• Low resistance to flow due to the smooth internal surface of the fittings.
• Resistance to scale buildup.

Specifications:

• Connections: 3/8" OD Tube x 3/8" OD Tube x 3/8" OD Tube
• Fitting Material: Polypropylene
• No Ferrule Nut
• Max Pressure: 220 psi
• Temperature Range: -30° - 215° F
• Color: Opaque white
