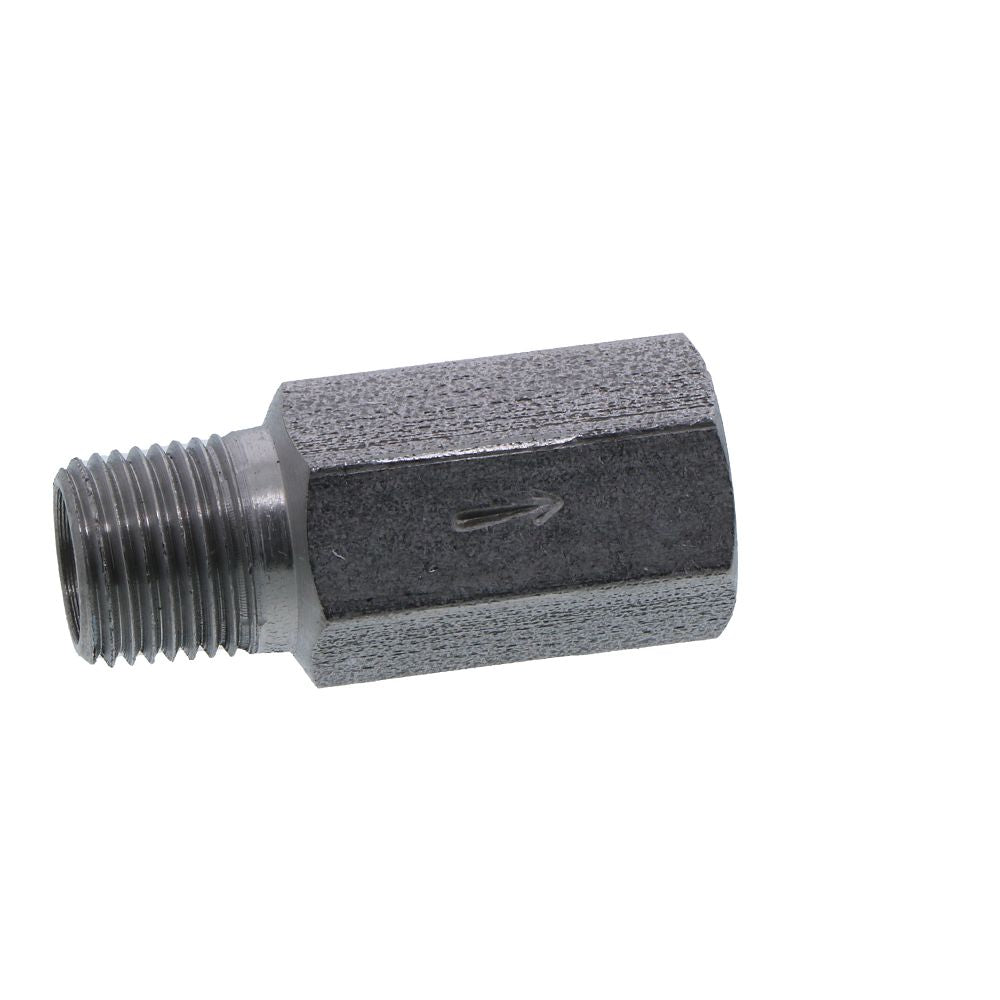

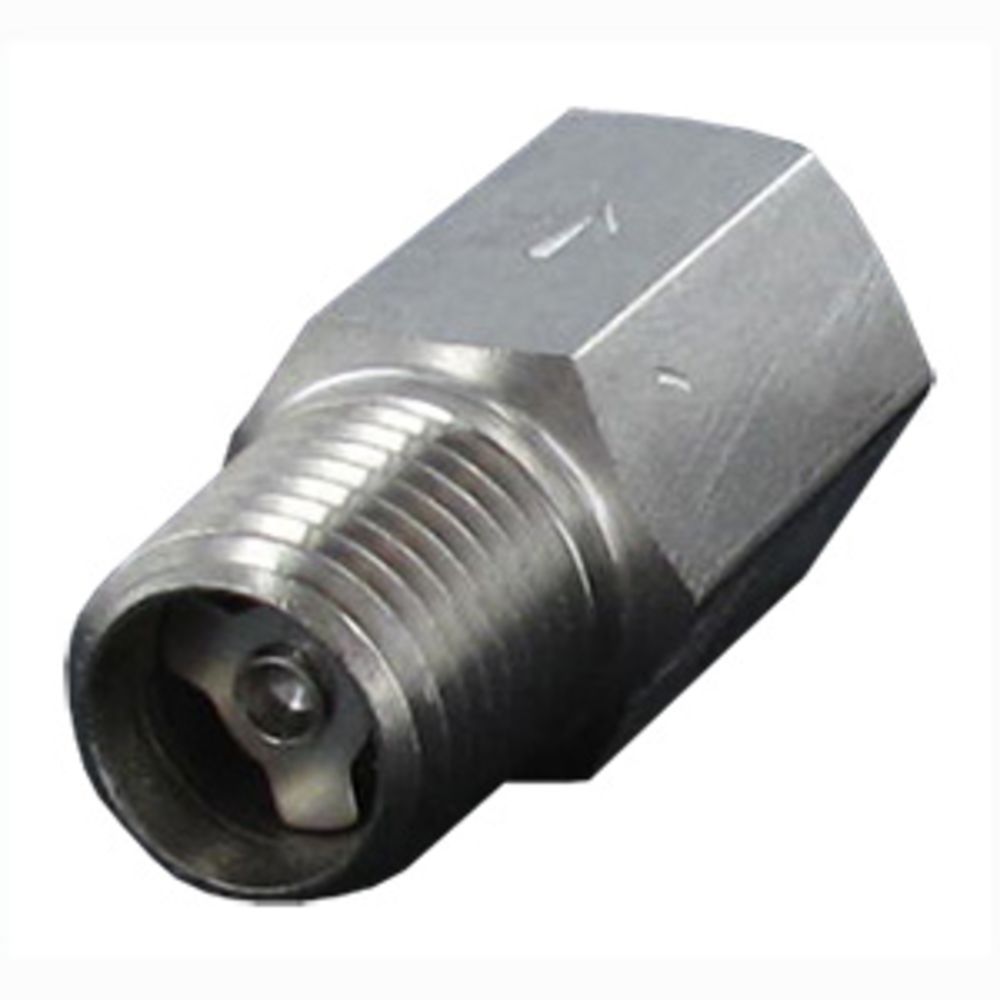

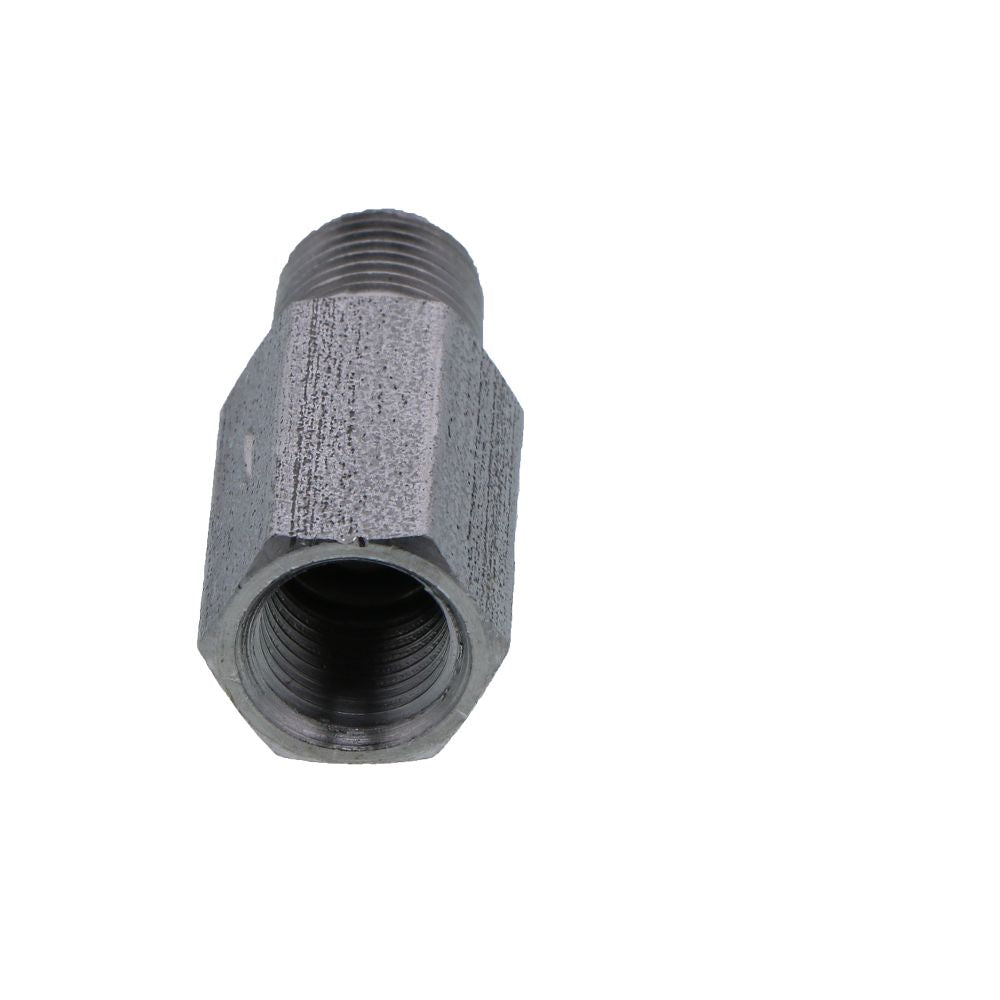

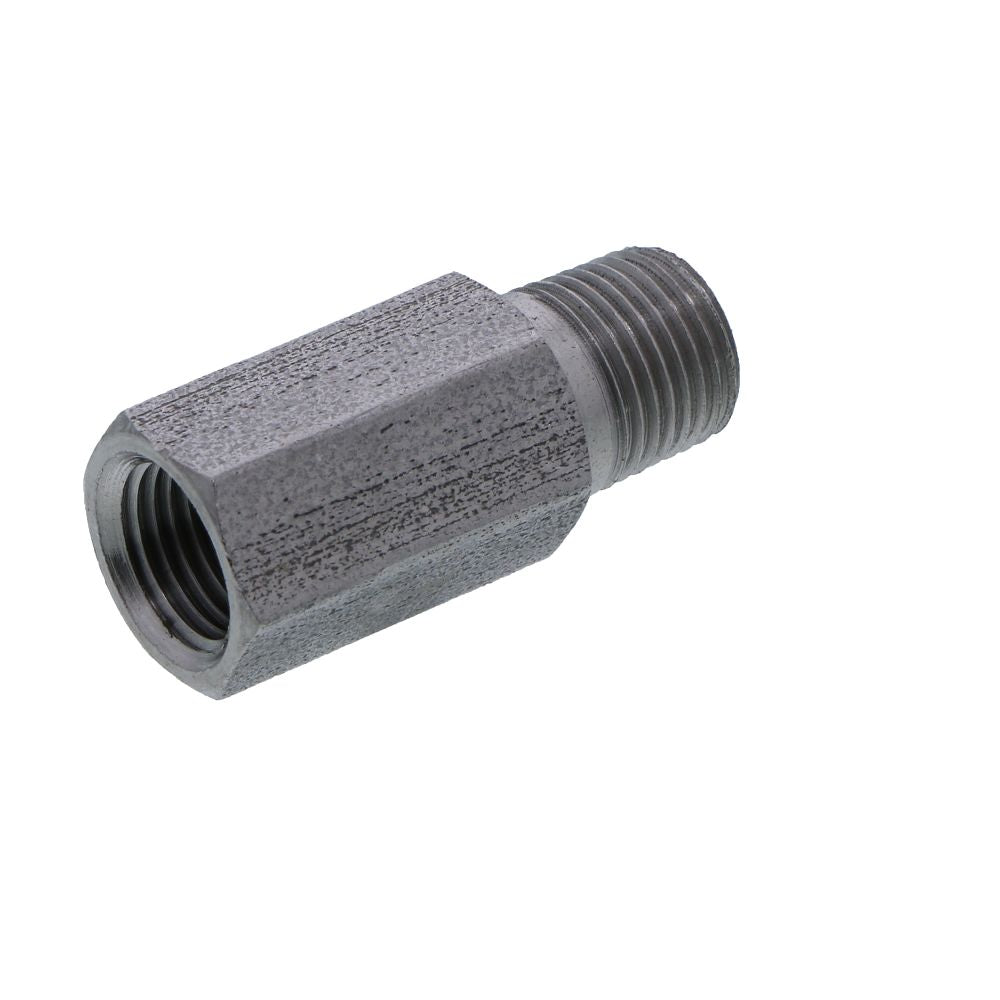

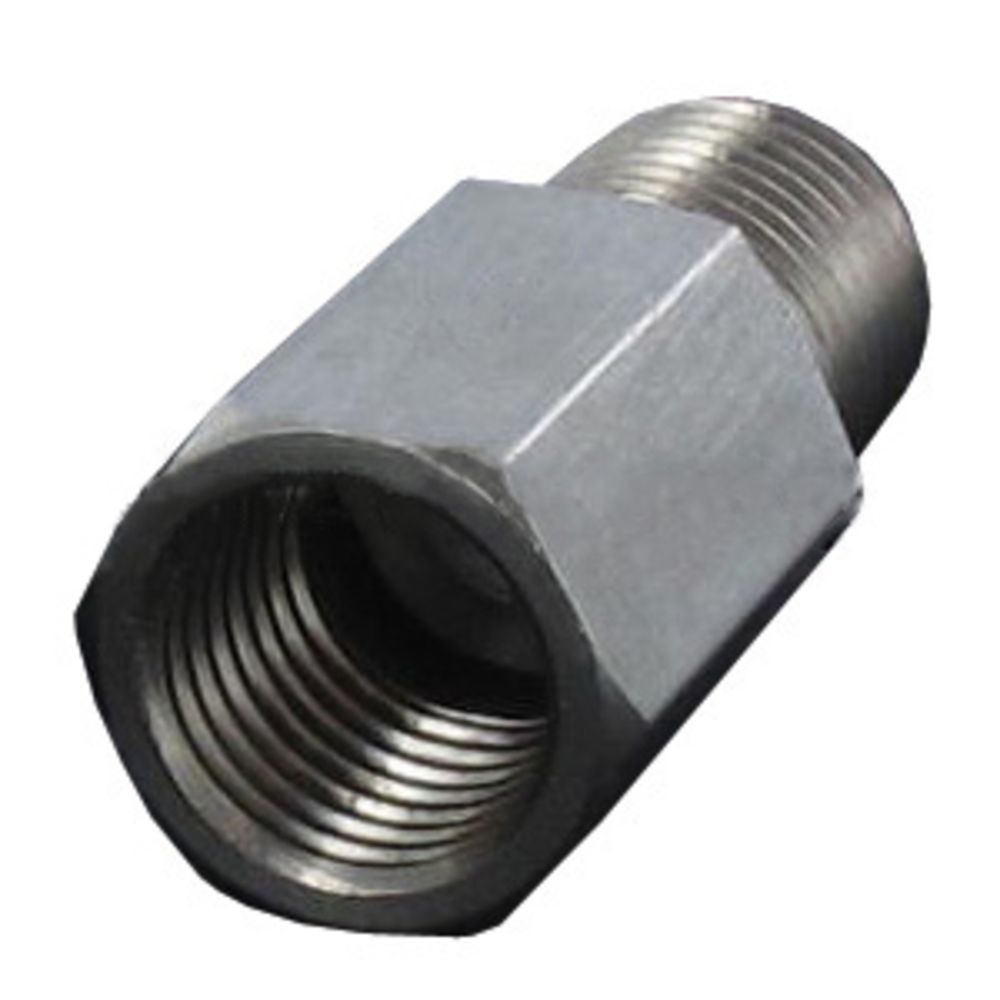

Inline Stainless Steel Check Valve - 1/8 mpt Inlet x 1/8 fpt Outlet

Inline Stainless Steel Check Valve - 1/8 mpt Inlet x 1/8 fpt Outlet

CV18S-MF:10PK

Pricing is available for wholesale customers only, please login to see prices.

Interested in becoming a partner?
Click here for more info.

In stock

Choose:

Check valves are spring-activated, poppet style design to create a positive seal to prevent reverse flow and cross contamination.

Specifications:

  • Material: Stainless Steel
  • Connection: 1/8" Male NPTF Inlet x 1/8" Female NPTF Outlet
  • Dimensions:1.04" x 1/2 Hex
  • Cracking Pressure: 1.0 psi +/- 1/2 psi
  • Flow Rates: .35 gpm @ 5 psi, .64 gpm @ 10 psi, .73 gpm @ 15 psi, .84 gpm @ 20 psi
  • O-Rings: Buna-N FDA grade
