Home / Fittings & Valves / Valves / Inline Stainless Check Valve Viton O-Ring - 1/4" MPT Inlet x 1/4" FPT Outlet

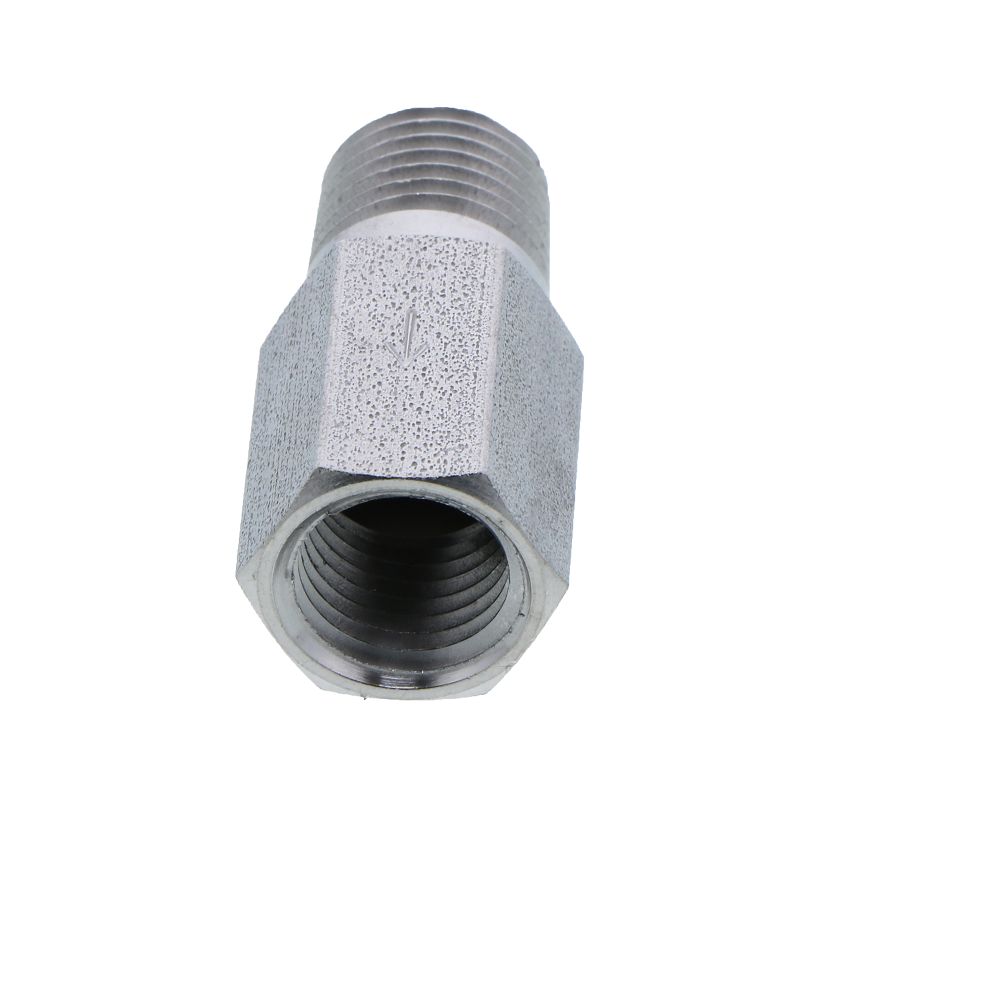

  • Inline Stainless Check Valve Viton O-Ring - 1/4" MPT Inlet x 1/4" FPT Outlet

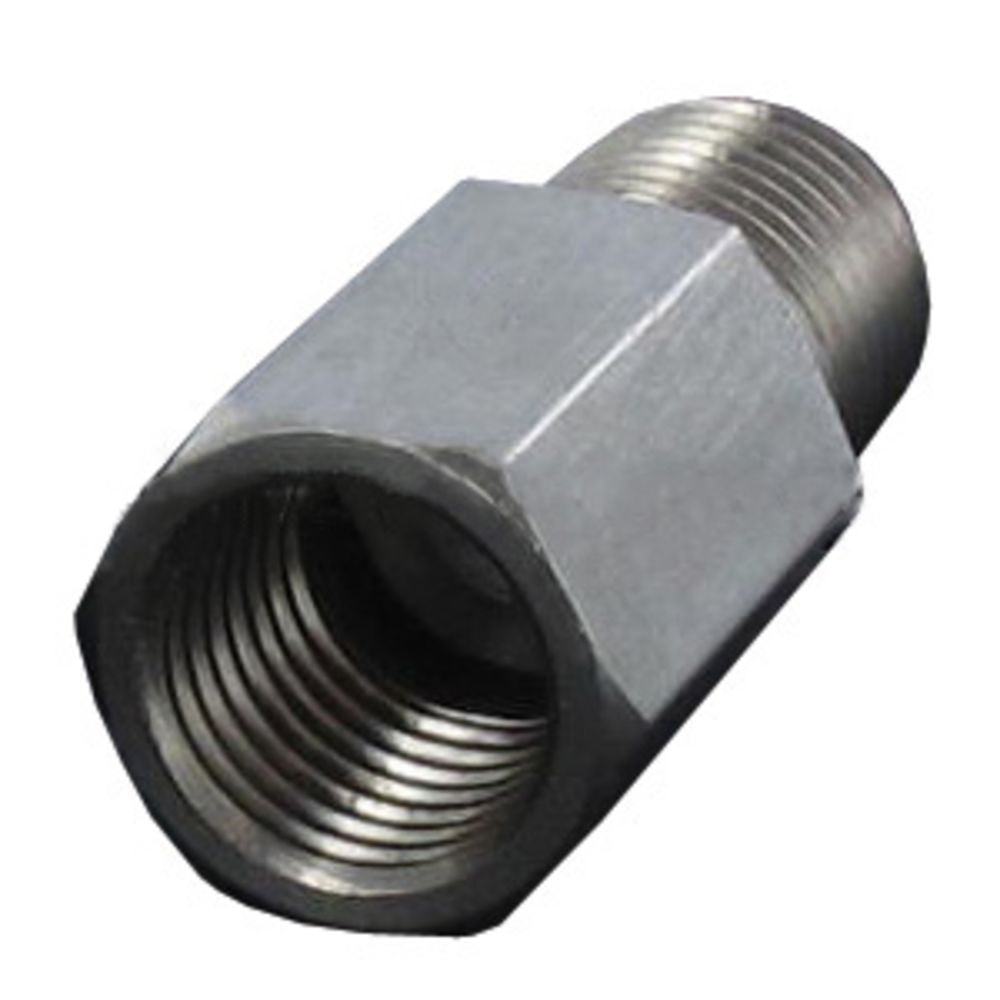

  • Inline Stainless Check Valve Viton O-Ring - 1/4" MPT Inlet x 1/4" FPT Outlet

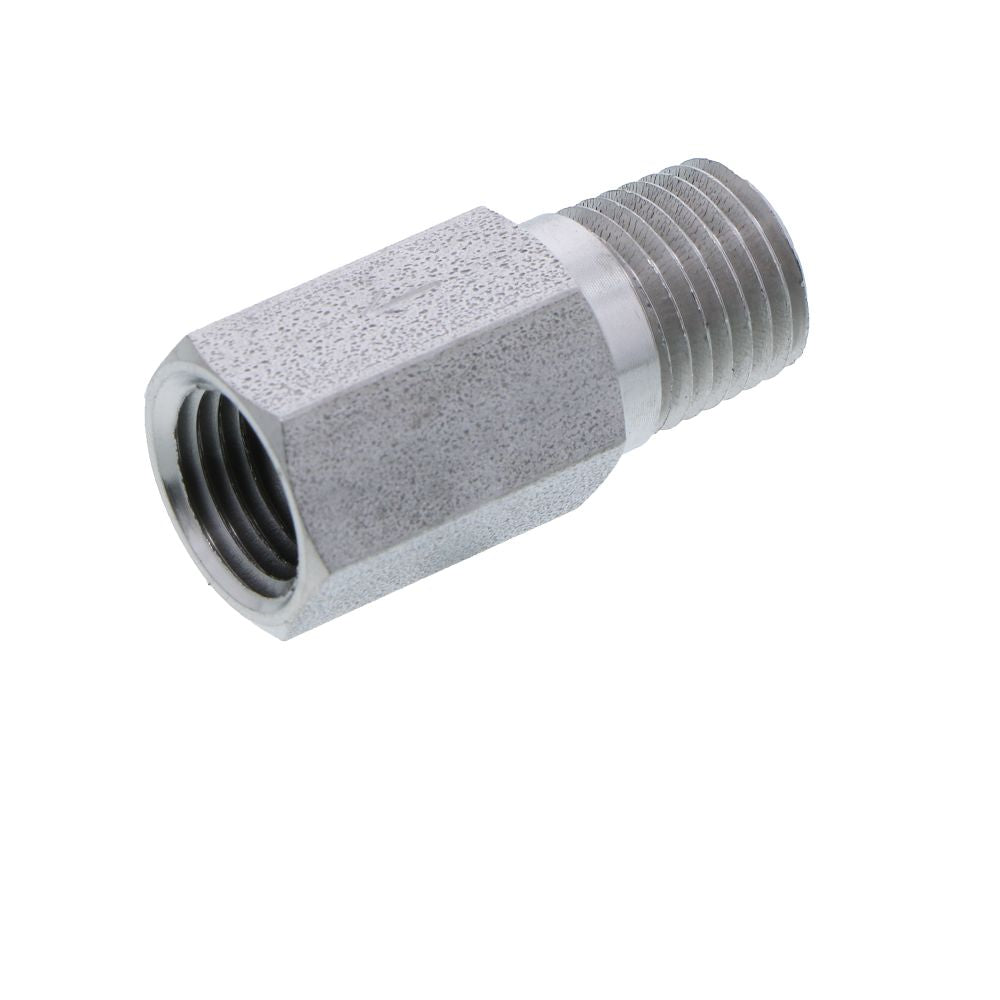

  • Inline Stainless Check Valve Viton O-Ring - 1/4" MPT Inlet x 1/4" FPT Outlet

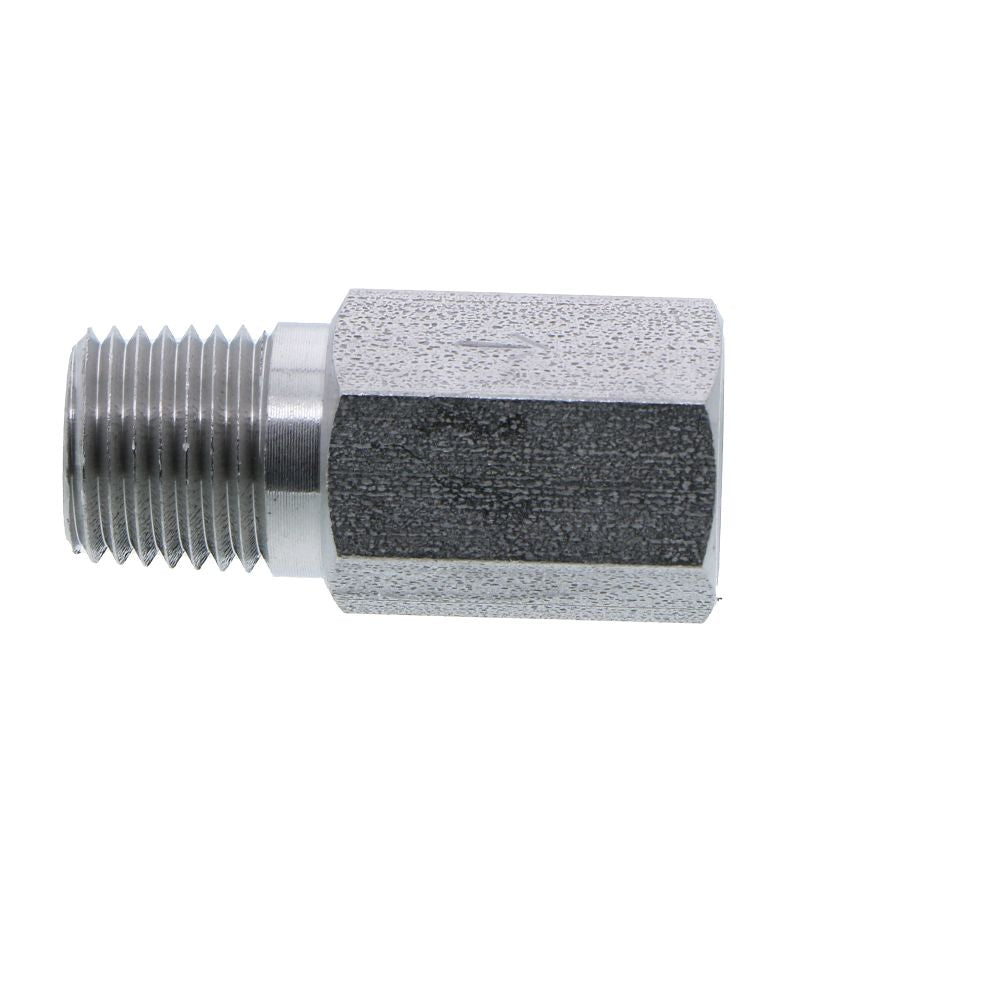

  • Inline Stainless Check Valve Viton O-Ring - 1/4" MPT Inlet x 1/4" FPT Outlet

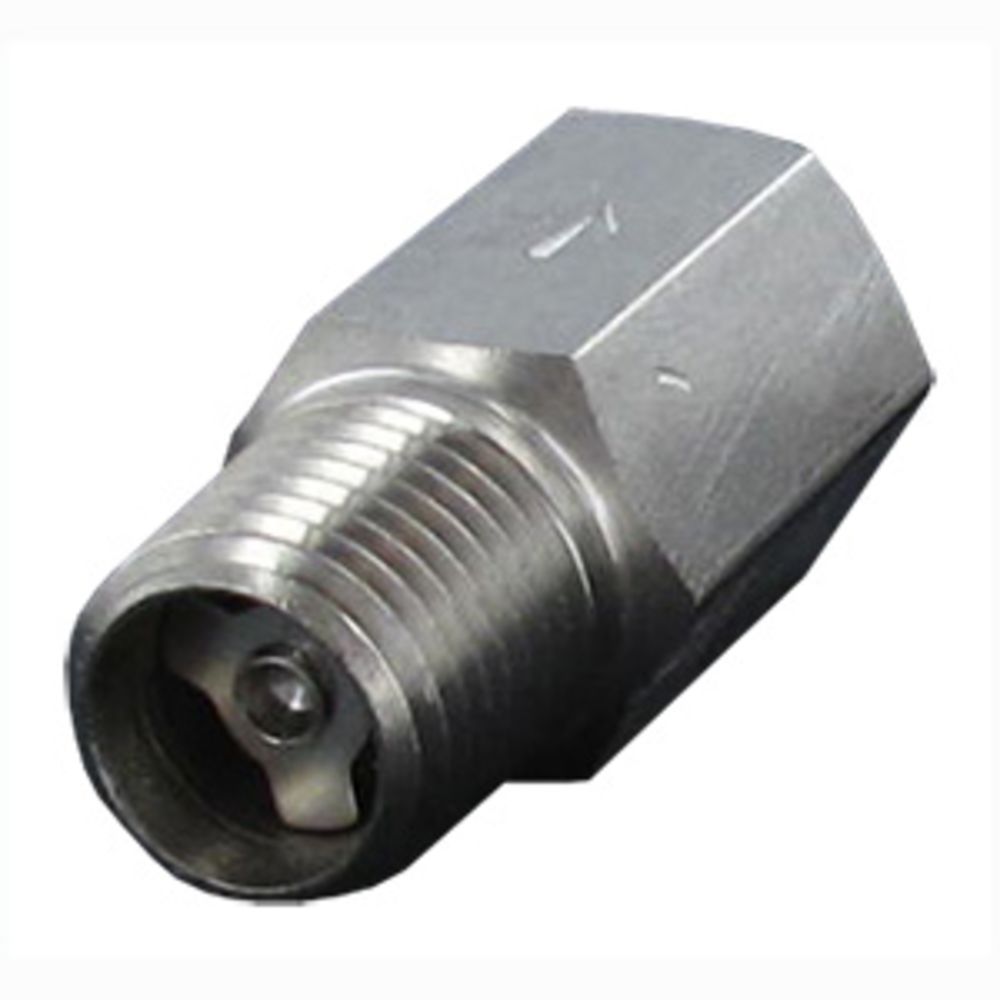

  • Inline Stainless Check Valve Viton O-Ring - 1/4" MPT Inlet x 1/4" FPT Outlet
1 5
Hydronamic Engineering

Inline Stainless Check Valve Viton O-Ring - 1/4" MPT Inlet x 1/4" FPT Outlet

Inline Stainless Check Valve Viton O-Ring - 1/4" MPT Inlet x 1/4" FPT Outlet

CV14SV-MF:10PK

Pricing is available for wholesale customers only, please login to see prices.

Interested in becoming a partner?
Click here for more info.

Low stock

Choose:

Check valves are spring-activated, poppet style design to create a positive seal to prevent reverse flow and cross contamination.

Specifications:

  • Material: Stainless Steel
  • Connection: 1/4" MPT Inlet x 1/4" FPT Outlet
  • Dimensions: 1.41" x 11/16" Hex
  • Cracking Pressure: 1.0 psi +/- 1/2 psi
  • Flow Rates: 1.28 gpm @ 5 psi, 1.92 gpm @ 10 psi, 2.36 gpm @ 15 psi, 2.8 gpm @ 20 psi
  • O-Rings: Viton, FDA grade
