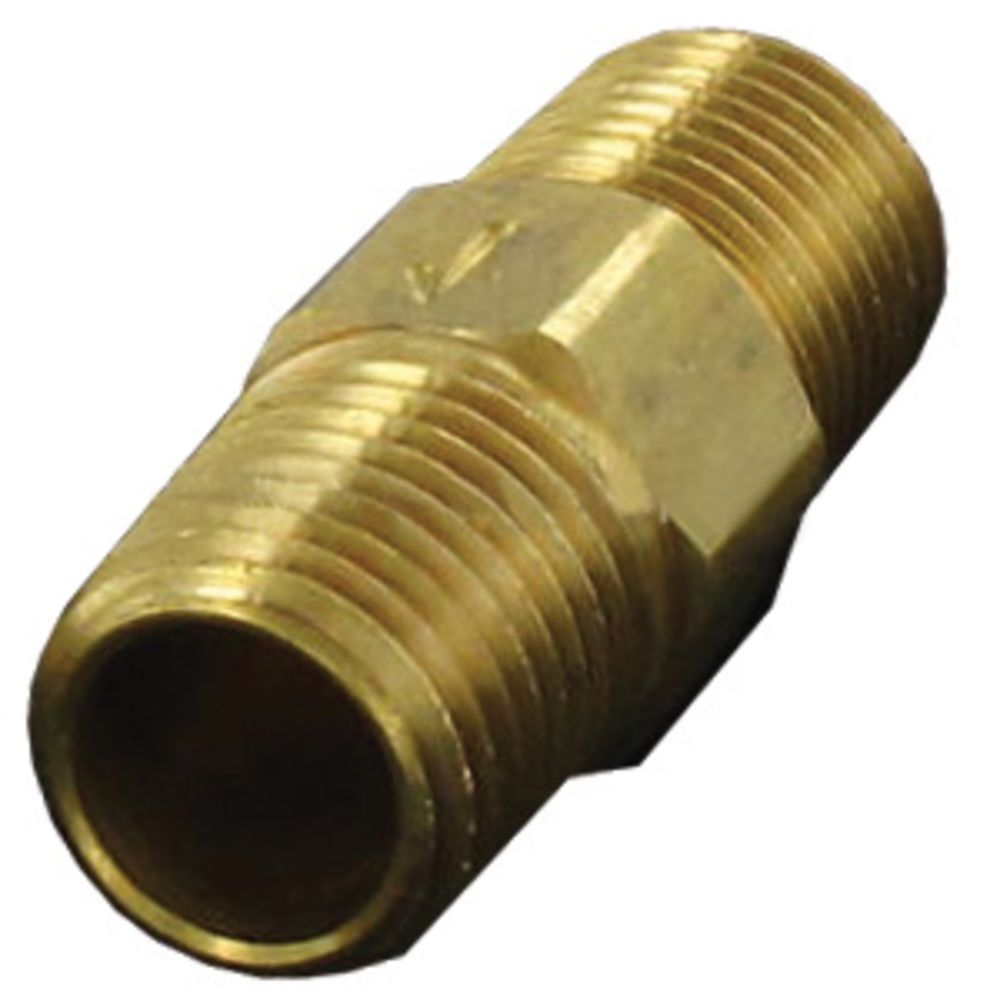

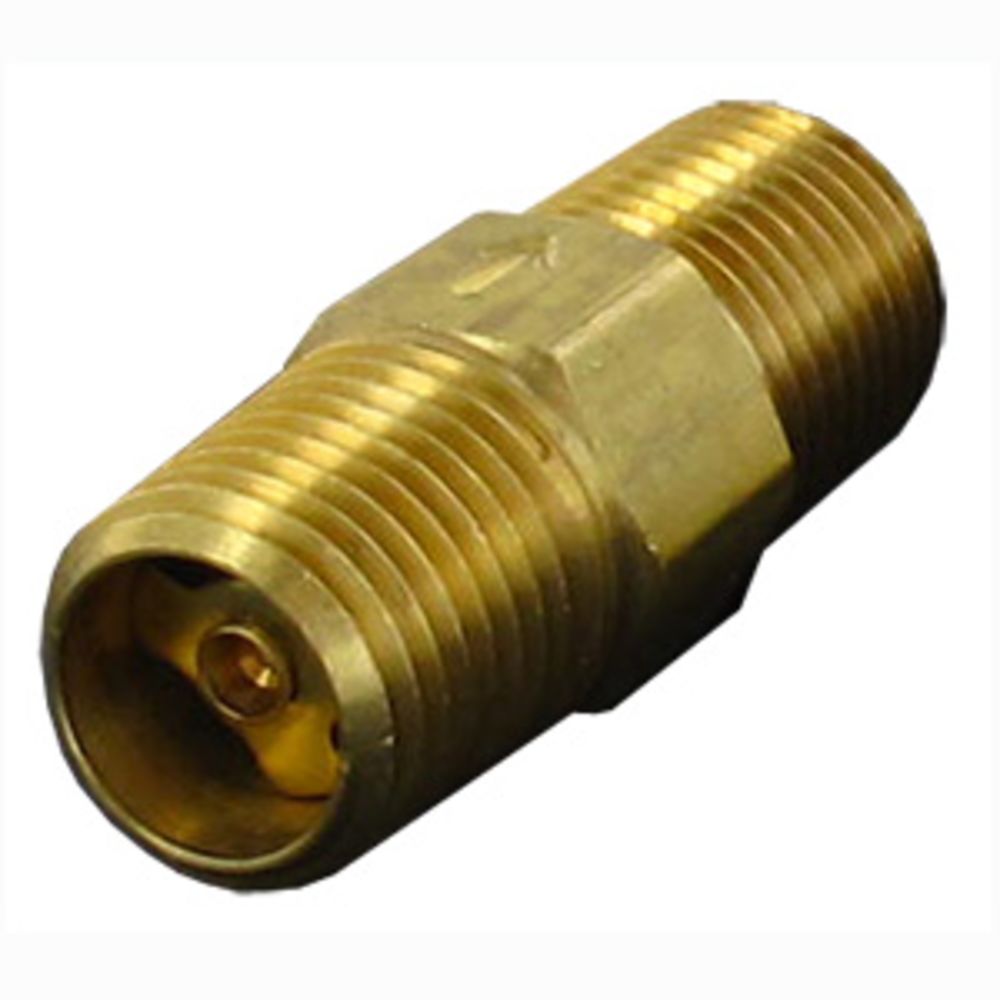

Inline Brass Check Valve - 1/4" MPT Inlet x 1/4" MPT Outlet

Inline Brass Check Valve - 1/4" MPT Inlet x 1/4" MPT Outlet

CV14B-MM:10PK

Pricing is available for wholesale customers only, please login to see prices.

Interested in becoming a partner?
Click here for more info.

In stock

Choose:

Check valves are spring-activated, poppet style design to create a positive seal to prevent reverse flow and cross contamination.
Also Replaces MarkVII Brass Check valves FJ7050 and 4604M4M.

Specifications:

  • Material: Brass
  • Connections: 1/4" MPT Inlet x 1/4" MPT Outlet
  • Dimensions: 1½" x 9/16" Hex
  • Cracking Pressure: 1.0 psi +/- 1/2 psi
  • Flow Rates: 1.28 gpm @ 5 psi, 1.92 gpm @ 10 psi, 2.36 gpm @ 15 psi, 2.8 gpm @ 20 psi
  • O-Rings: Buna-N FDA grade (Viton available by special order)



PLEASE NOTE: This Inline Brass Check Valve is intended for low-flow water applications, and is not suitable for air applications.
