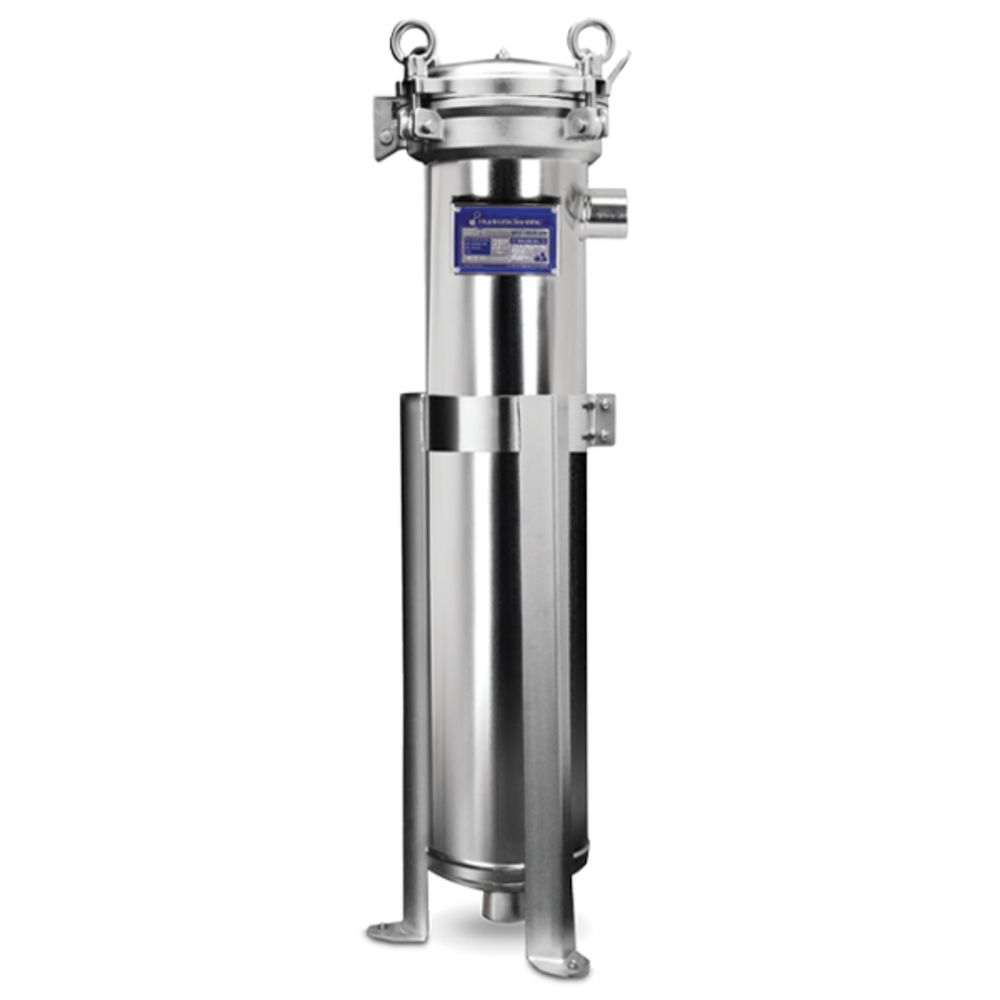

HydroScientific™ BF1-316-2NBC Band Clamp Single Bag Housing

This HydroScientific™ BF1-316-2NBC Band Clamp Single Bag Housing is made of high grade 316 stainless steel, and can accept #1 (7" x 16 1/2") filter bags. This is ideal for most commercial/industrial applications. Commonly used for pre-filtration for Reverse Osmosis (RO) systems, food service, carwashes, agriculture and many other uses.

Features:

• Band Clamp Closure
• Heavy duty 316 Stainless Steel for durability
• Electropolish standard on all models
• Single bag housing
• Accepts #1 (7" x 16 1/2") filter bags
• Positive O-ring Seal
• NSF/ANSI/CAN 61 & NSF/ANSI 372 certified

Applications:

• Liquid Process
• Food and Beverage
• Chemicals
• Oil/Gas Industry
• Coolants
• Inks/Coatings/Paints
• Wastewater

Materials of Construction:

• Housing Shell: 316 Stainless Steel
• Band Clamp Closure: 316 Stainless Steel
• Vent and Drain Plugs: 316 Stainless Steel
• Heavy Duty Mounting Legs: 316 Stainless Steel
• O-Ring/Gasket: EPDM - FDA Grade (Viton, Silicone and EPR Options)

Operational Data:

• Max Working Pressure: 150 psi at 250 Deg. F (10.3 bar at 121 Deg. C)
• Max Operating Temperature: 250 Deg. F (121 Deg. C)
