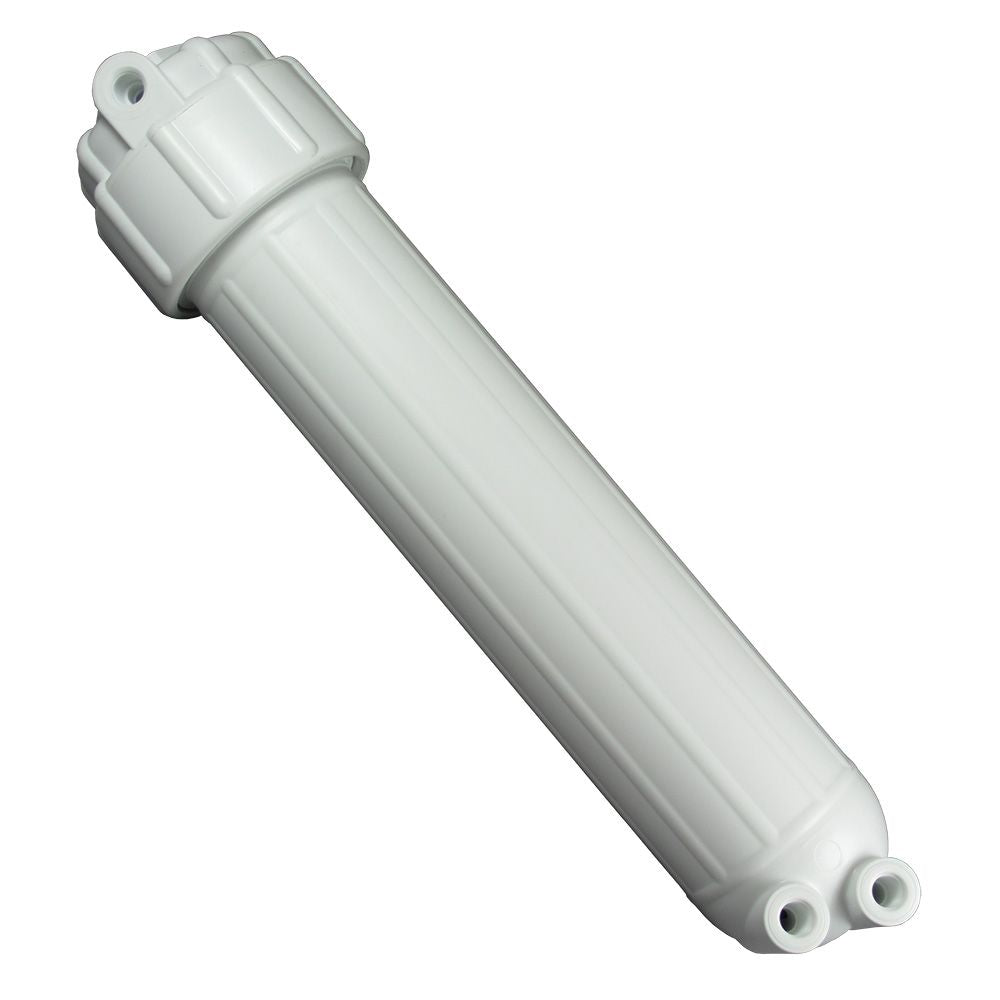

Housing for Standard Membrane Size 1/8" FPT

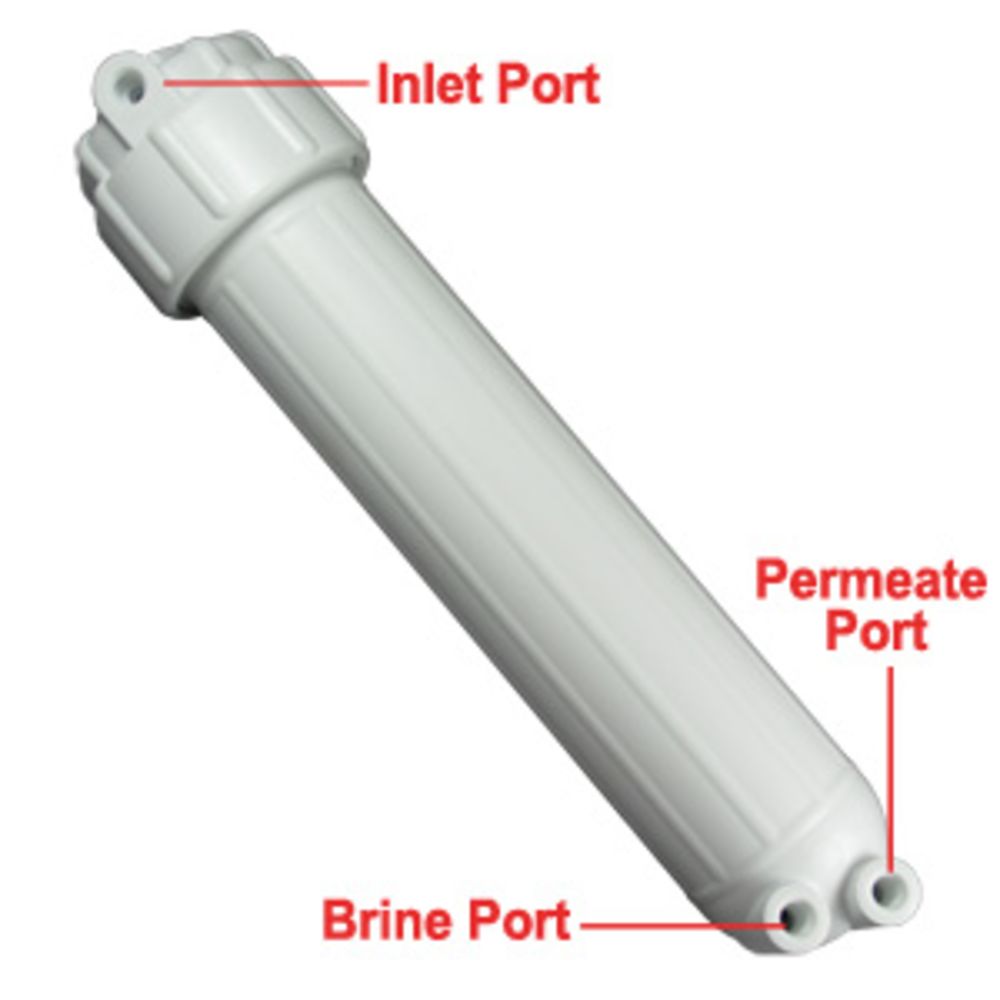

Reverse Osmosis Membrane housing accepts all 12" standard size membranes and are manufactured using the highest quality NSF listed, FDA grade materials. The RO membrane housing inlet/outlet ports are 1/8" FPT. The drain (brine) and product (permeate) ports exit at 90°.

Brine port requires an external flow control (flow restrictor) that is sized to the membrane capacity, typically a 3:1 ratio.

Permeate (RO or Product water) port requires an external inline check valve.
