Payne

Housing for Standard 12" Membrane Size 1/8" Permeate

Housing for Standard 12" Membrane Size 1/8" Permeate

PPV-111W

Pricing is available for wholesale customers only, please login to see prices.

Interested in becoming a partner?
Click here for more info.

Low stock

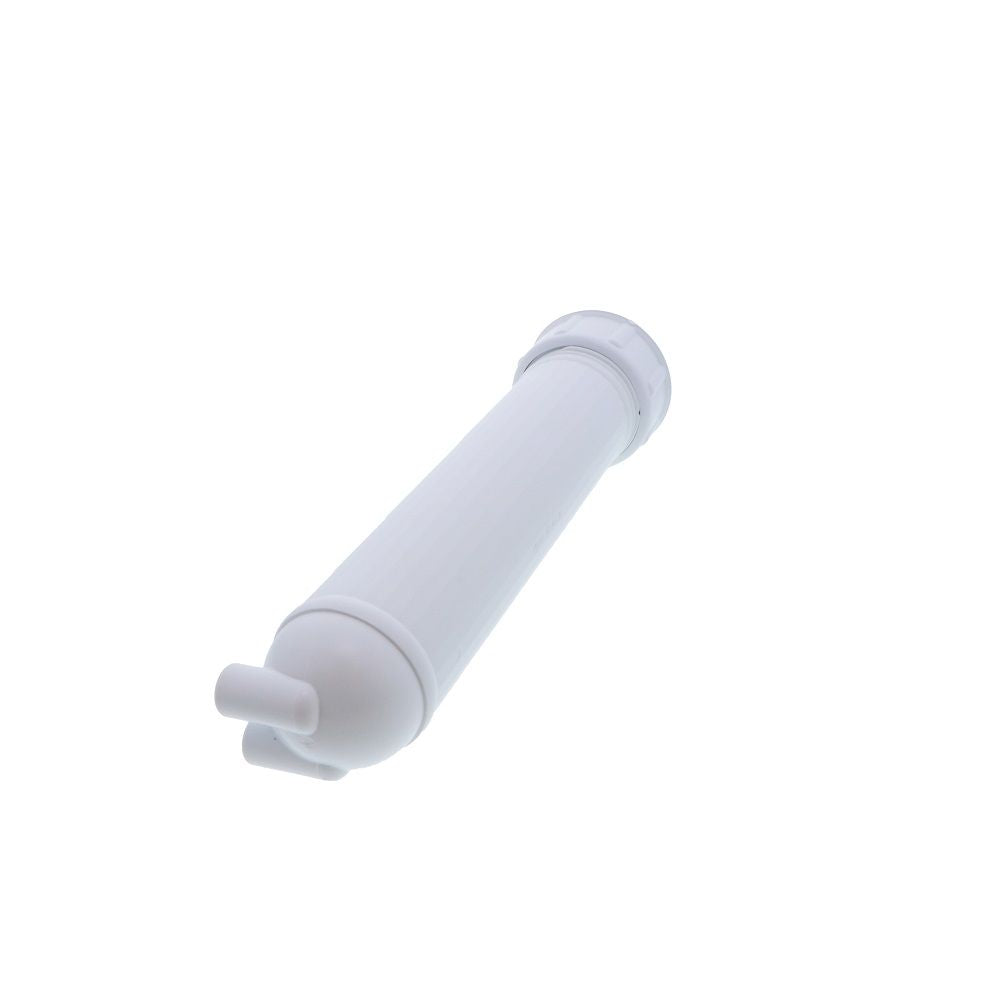

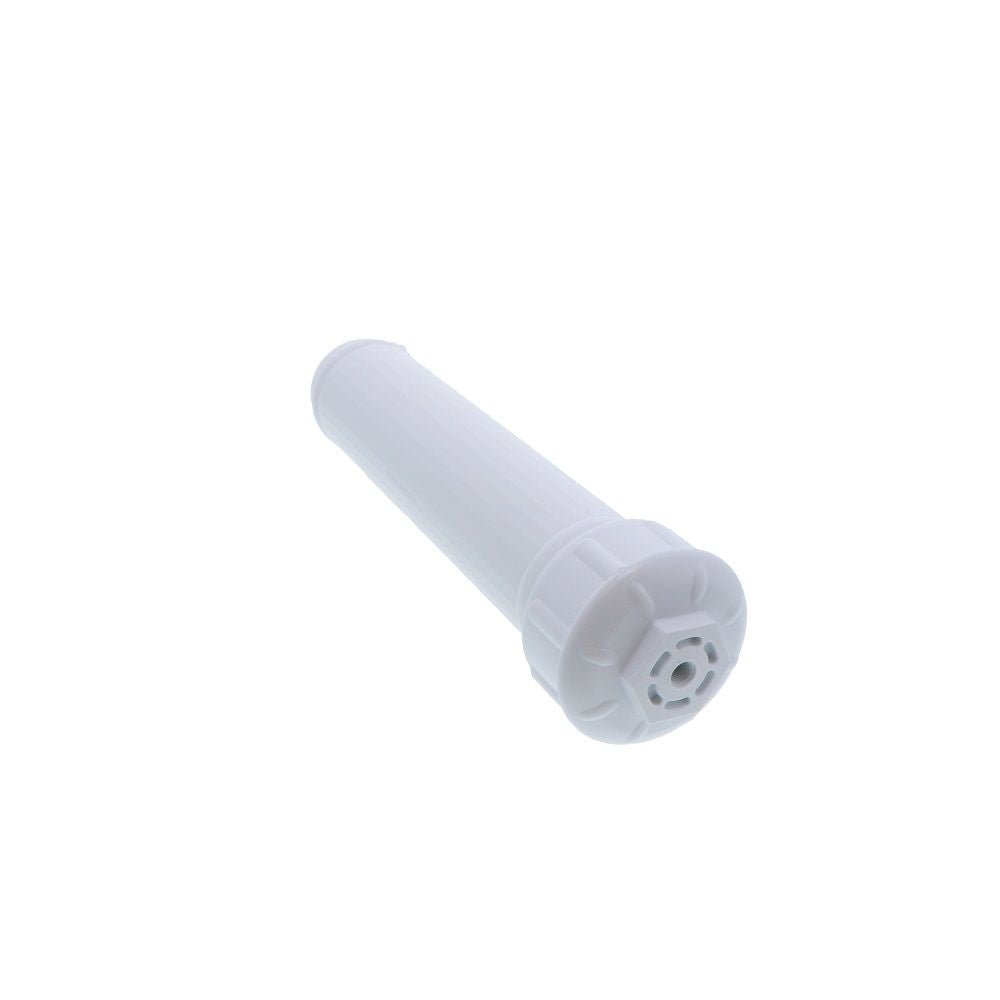

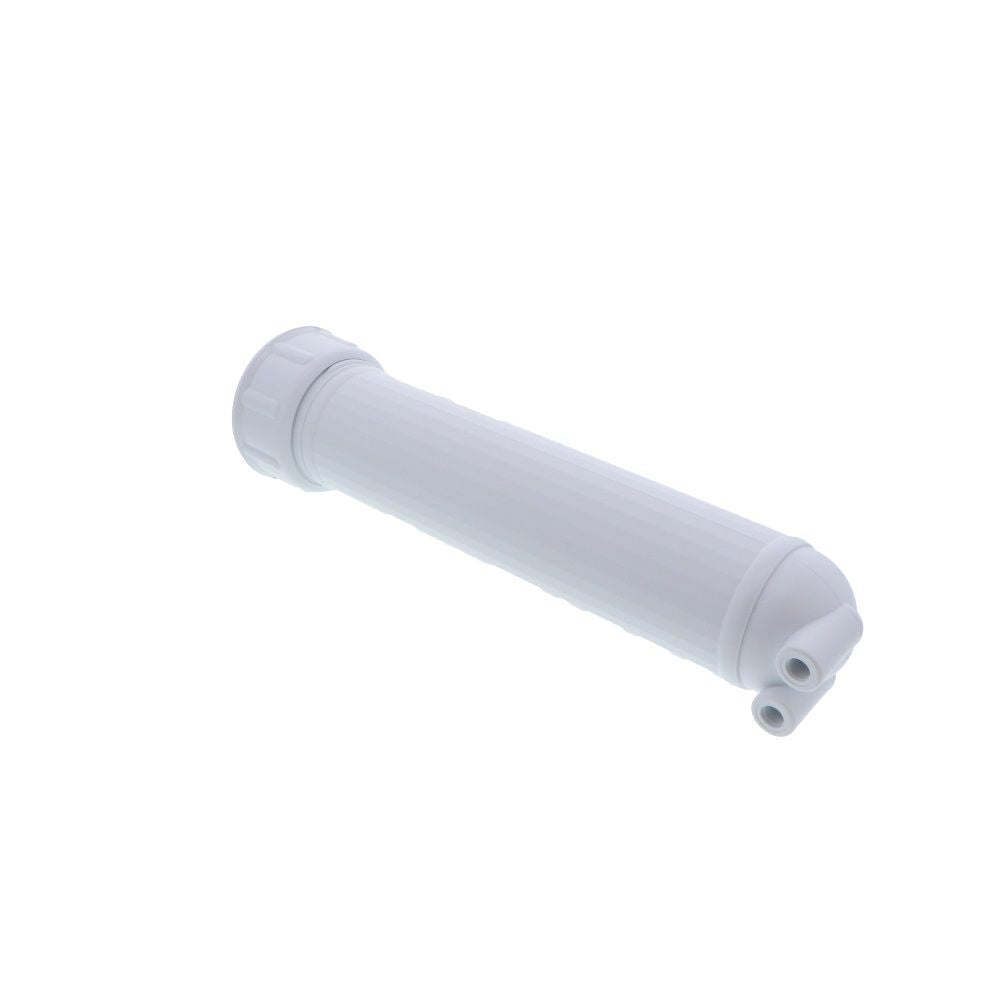

The PPV-111W Reverse Osmosis Membrane Housing accepts all 12" standard size membranes and is manufactured using the highest quality FDA grade polypropylene. The RO membrane housing inlet/outlet ports are 1/8" FPT. The drain (brine) and product (permeate) ports exit at 90°.

Specifications:
  • Material: Polypropylene
  • Inlet Port: 1/8" FPT
  • Brine Out: 1/8" FPT
  • Permeate Out: 1/8" FPT
NOTE: Brine port requires an external flow control (flow restrictor) that is sized to the membrane capacity, typically a 3:1 ratio.
Permeate (RO or Product water) port requires an external inline check valve.
