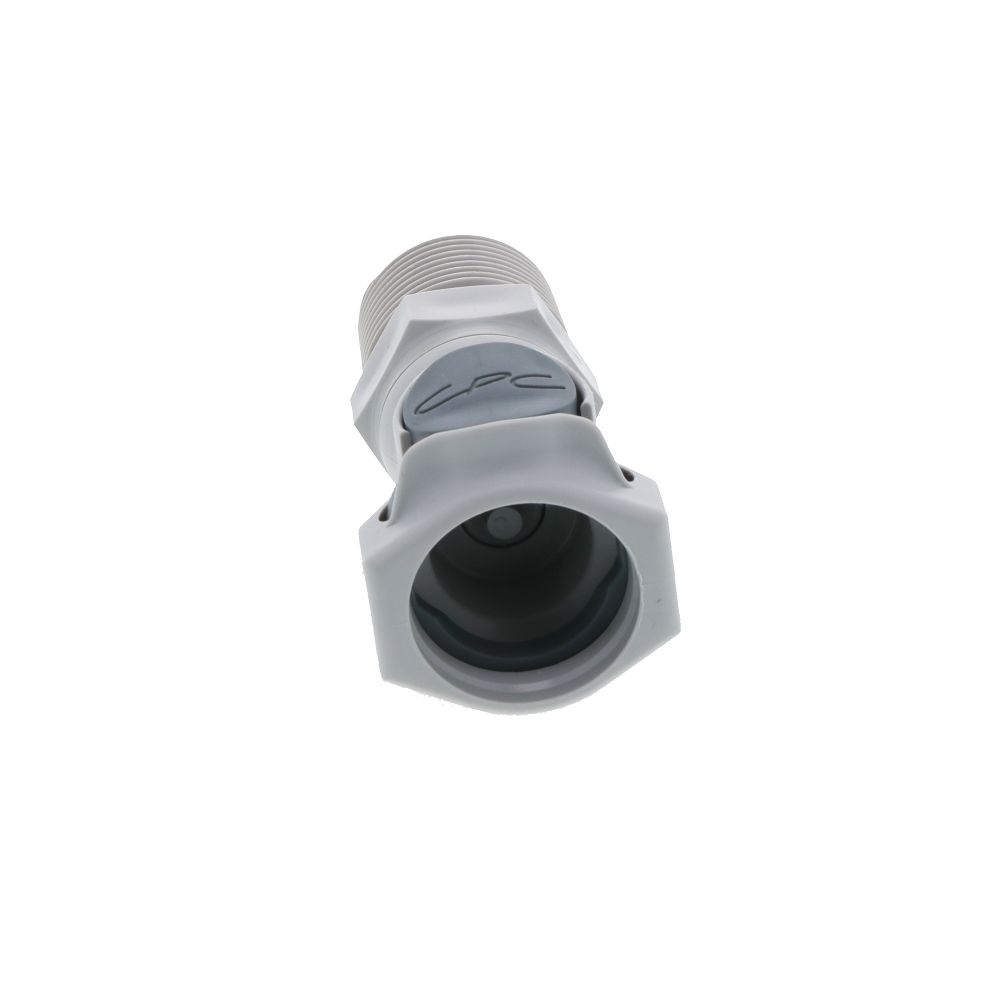

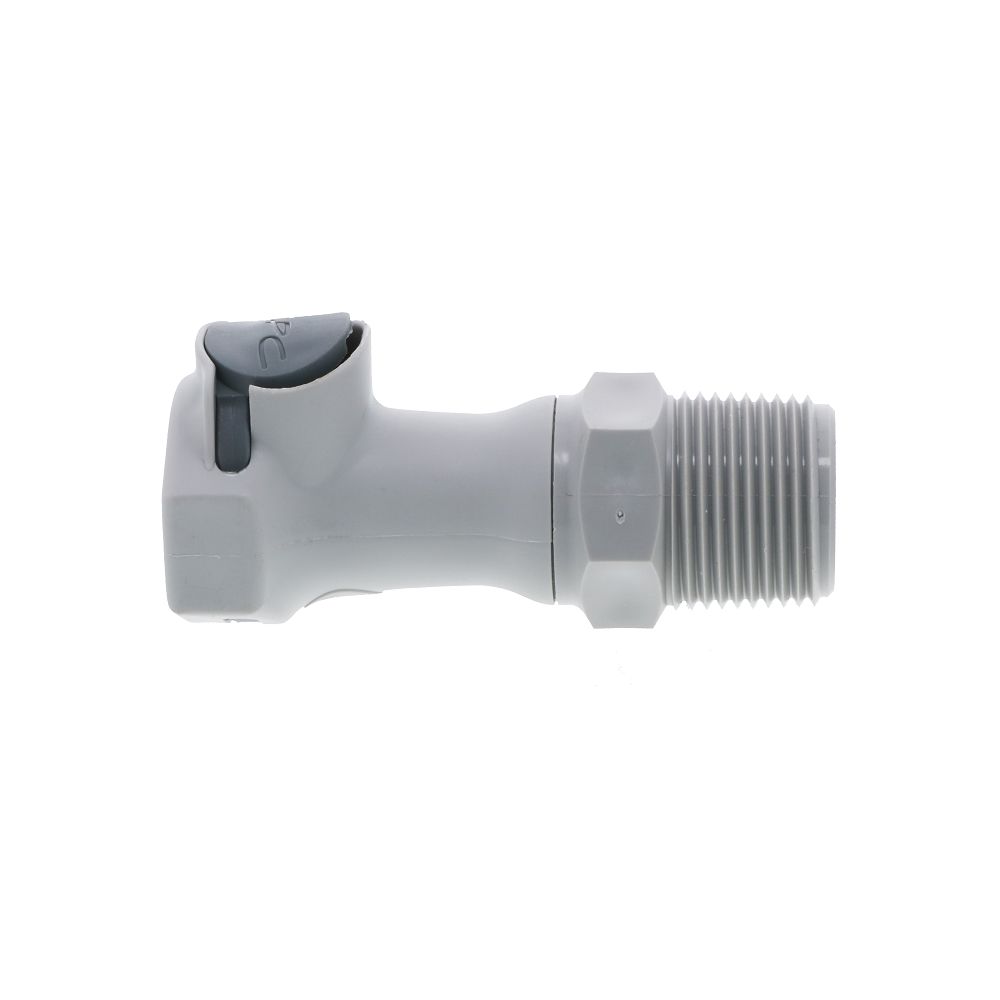

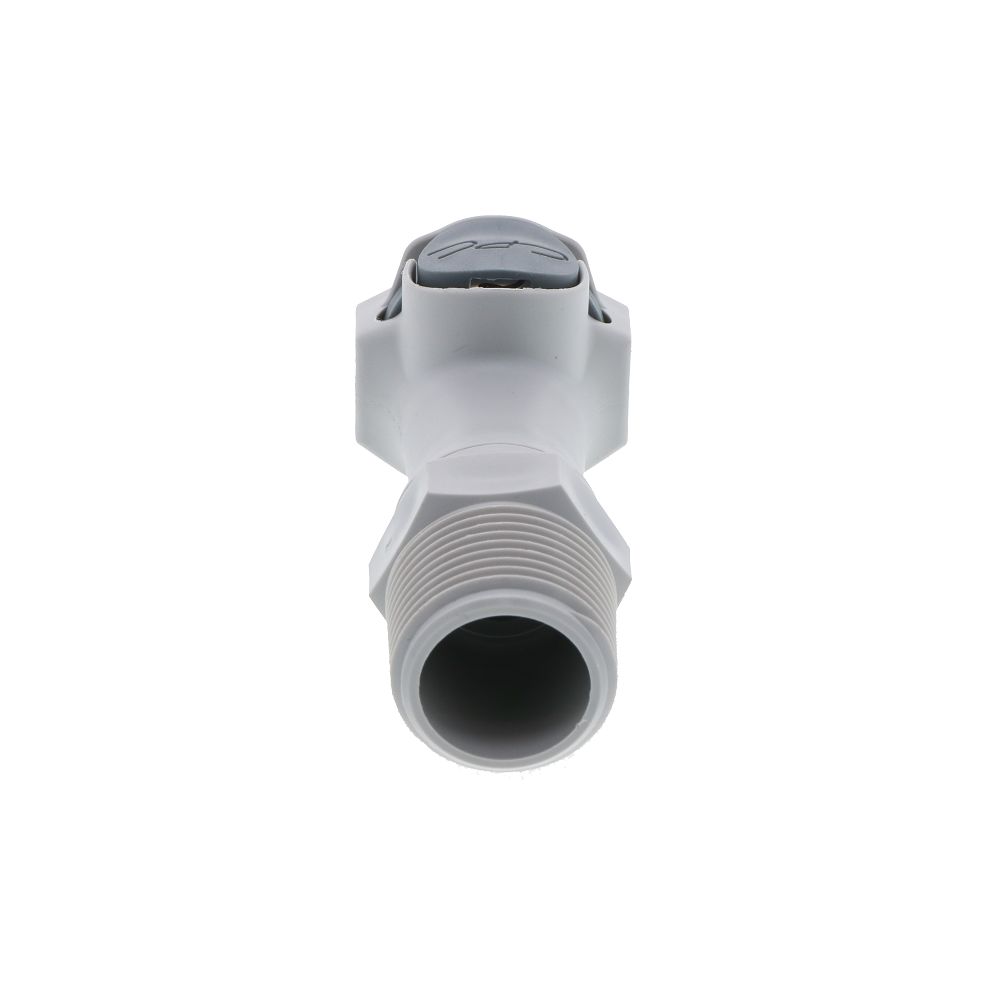

HFCD101212 Valved Male Thread Coupling Body 3/4 NPT

The HFC12 Series has flow comparable to many 1/2" flow couplings in a 3/8" body size. They are compact and lightweight, making them an excellent replacement for bulky and heavy metal ball-and-sleeve couplings in a wide range of applications. HFC couplings are ergonomically designed with a large, shrouded thumb latch pad resulting in a coupling that is easy to grip and simple to operate. The efficient valve design leads to high flow and low spillage.

Specifications:

• Material: Polypropylene
• Color: Gray
• Pressure Range: Vacuum to 60 psi, 4.2 bar
• Mounting Option: NPT threads
• Valve Option: Valved
• Temperature Range: 32ºF to 160ºF
• Seal Options: EPDM
• Available in Bags of 10 units
• NSF Listed Version (part # 61800) Available Upon Request
