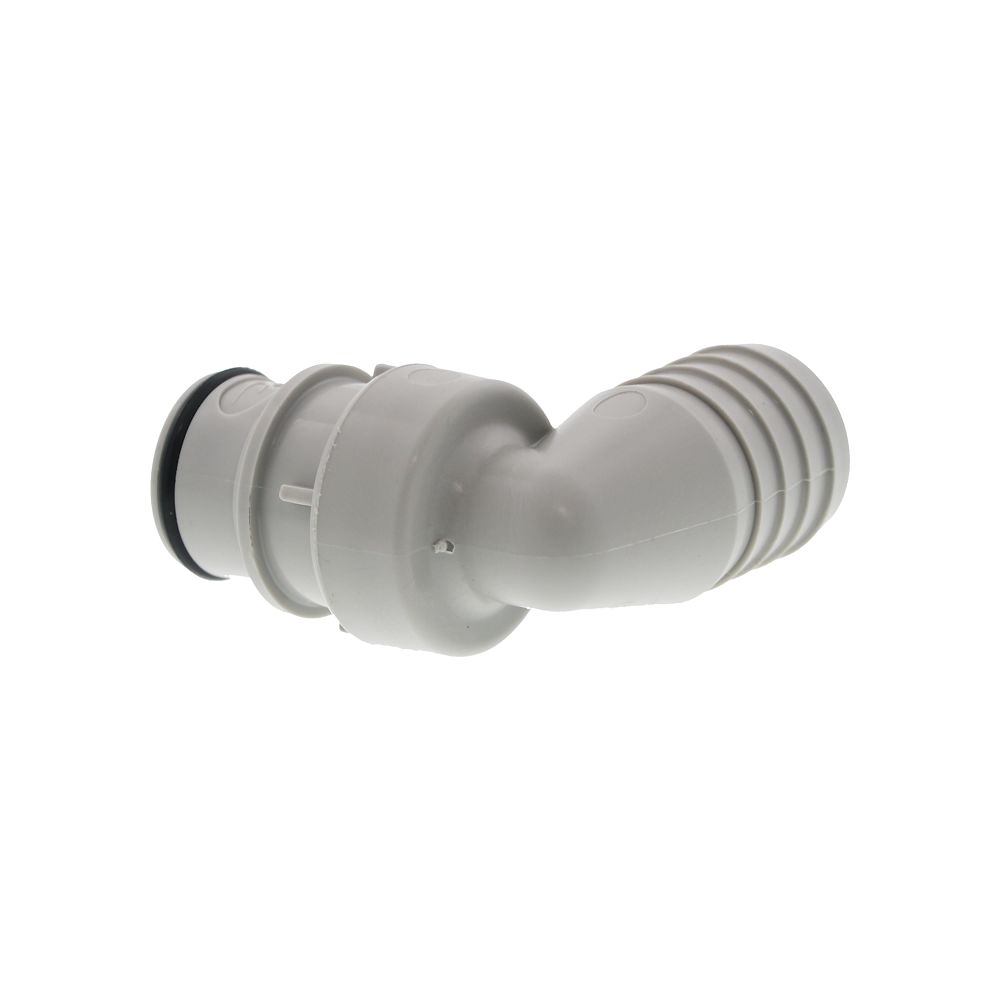

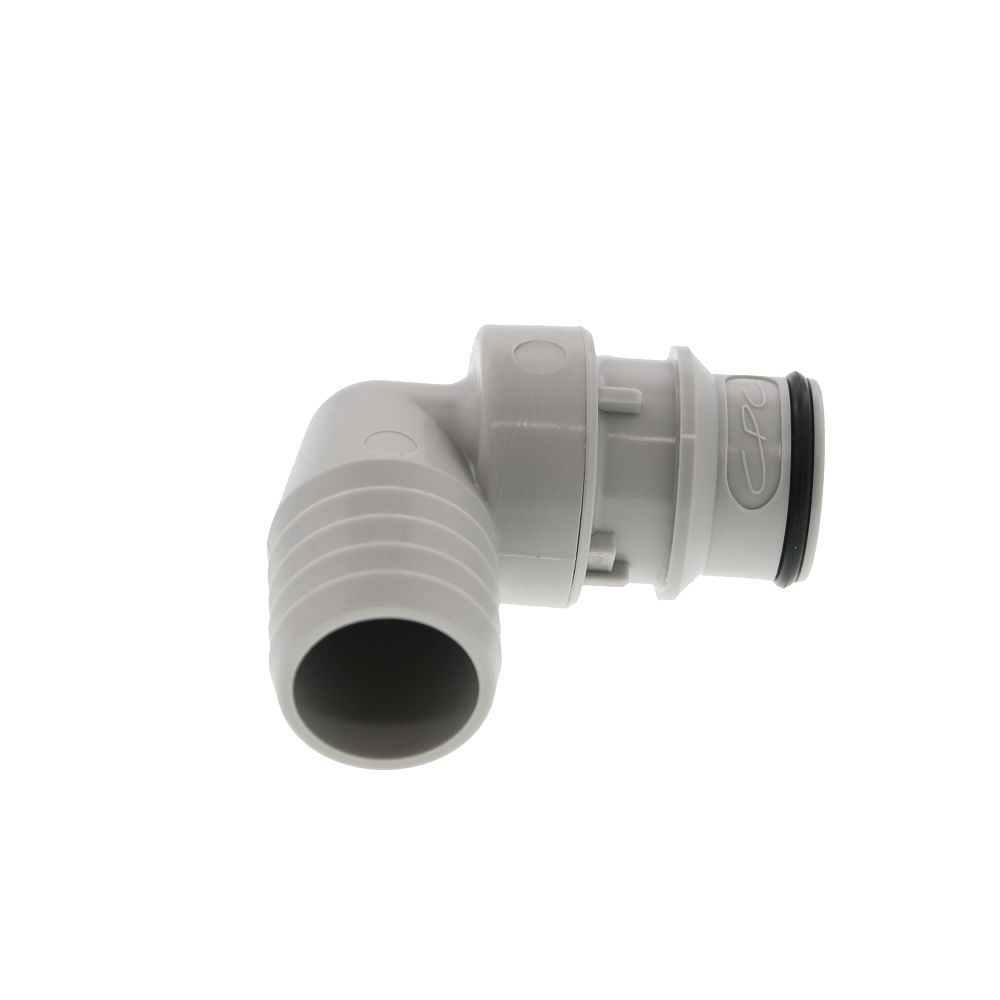

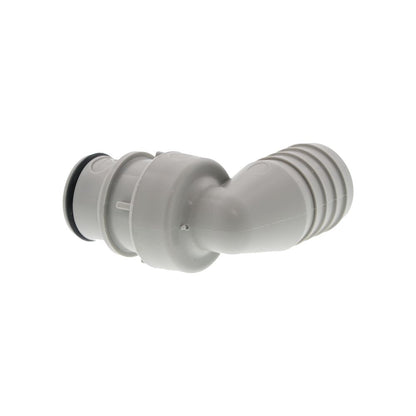

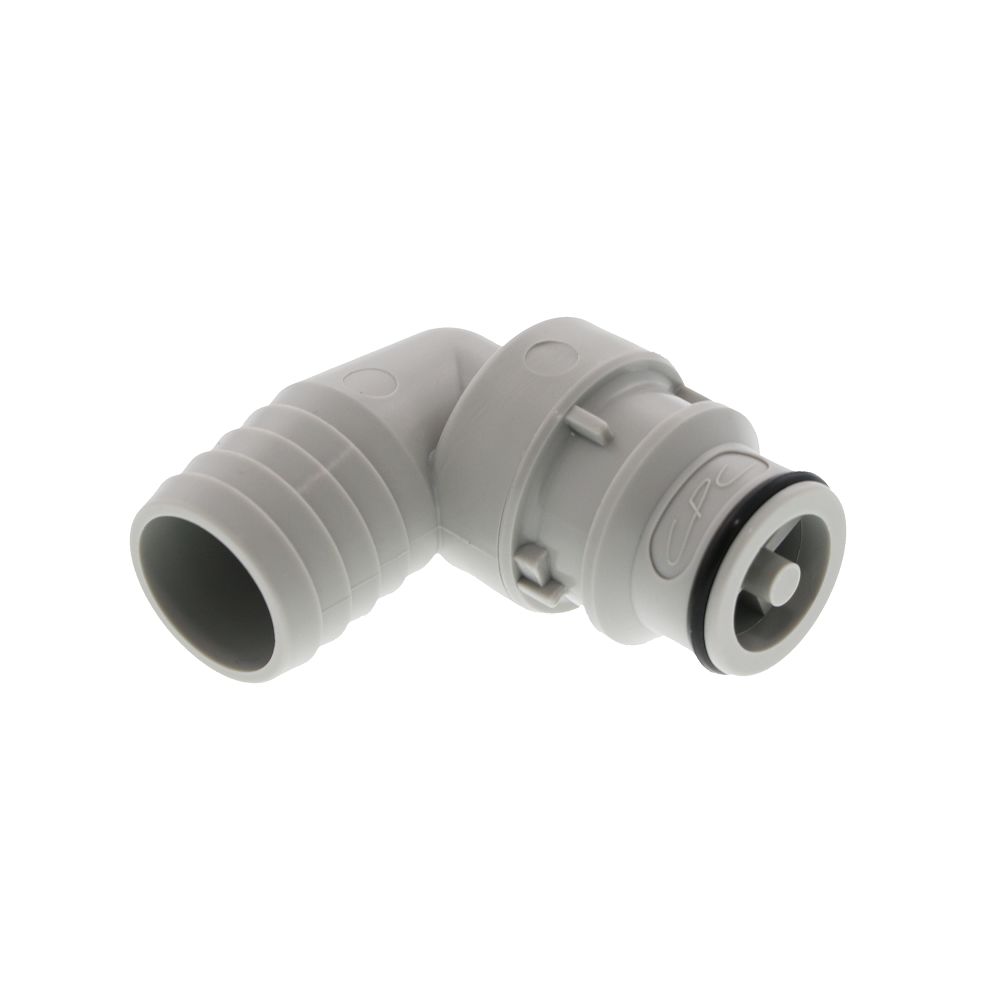

HFC231212 Elbow Hose Barb Coupling Insert 3/4 ID Barb

The HFC12 Series has flow comparable to many 3/4" flow couplings in a 3/8" body size. They are compact and lightweight, making them an excellent replacement for bulky and heavy metal ball-and-sleeve couplings in a wide range of applications. HFC couplings are ergonomically designed with a large, shrouded thumb latch pad resulting in a coupling that is easy to grip and simple to operate. The efficient valve design leads to high flow and low spillage.

Specifications:

• Material: Polypropylene
• Color: Gray
• Pressure Range: Vacuum to 60 psi, 4.2 bar
• Mounting Option: Free Floating
• Valve Option: Non-Valved
• Temperature Range: 32ºF to 160ºF
• Seal Options: EPDM
• Available in Bags of 10 units
• NSF Listed Version (Part # 64400) Available Upon Request
