  • Fluid-o-Tech Stainless Steel Rotary Vane Pump 320 GPH - 1/2" NPT
1 1
Fluid-o-Tech

Fluid-o-Tech Stainless Steel Rotary Vane Pump 320 GPH - 1/2" NPT

Fluid-o-Tech Stainless Steel Rotary Vane Pump 320 GPH - 1/2" NPT

PA-1011-225

Pricing is available for wholesale customers only, please login to see prices.

Interested in becoming a partner?
Click here for more info.

Out of stock

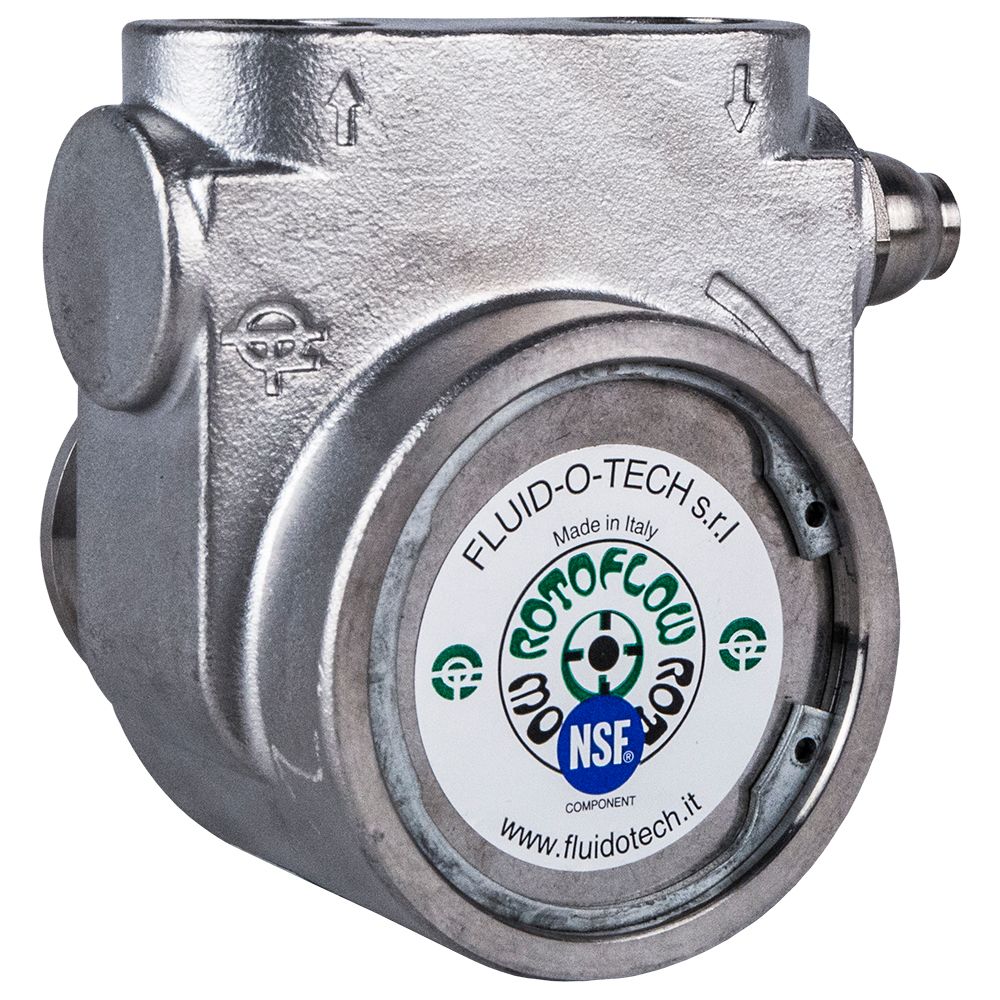

Fluid-o-Tech PA-1011 is a 327 gallon per hour rotary vane pump. The PA611 has an NSF approved Buna-N seal, and comes with a slotted shaft and brass key. The pump housing is constructed out of Stainless Steel, and comes with a band clamp mount and a pressure bypass.

Specifications:
  • Flow rate: 320 gallons per hour
  • Material: Stainless Steel housing & graphite chamber
  • 1/2" NPT ports
  • Clamp Mount: 4.2 lbs. (1.9kg)
  • Max Static Pressure: 290 PSI
  • Max Operating Temperature: 158°F
  • Max Speed: 1450 RPM
  • Stainless Steel: AISI 303
  • High Volume Rotary Vane Pump
Applications:
  • Post-mix drink dispensers
  • Cooling & booster systems
  • Fuel injection systems
  • Reverse osmosis systems
  • Ultra-filtration systems
  • Water dispensing systems
