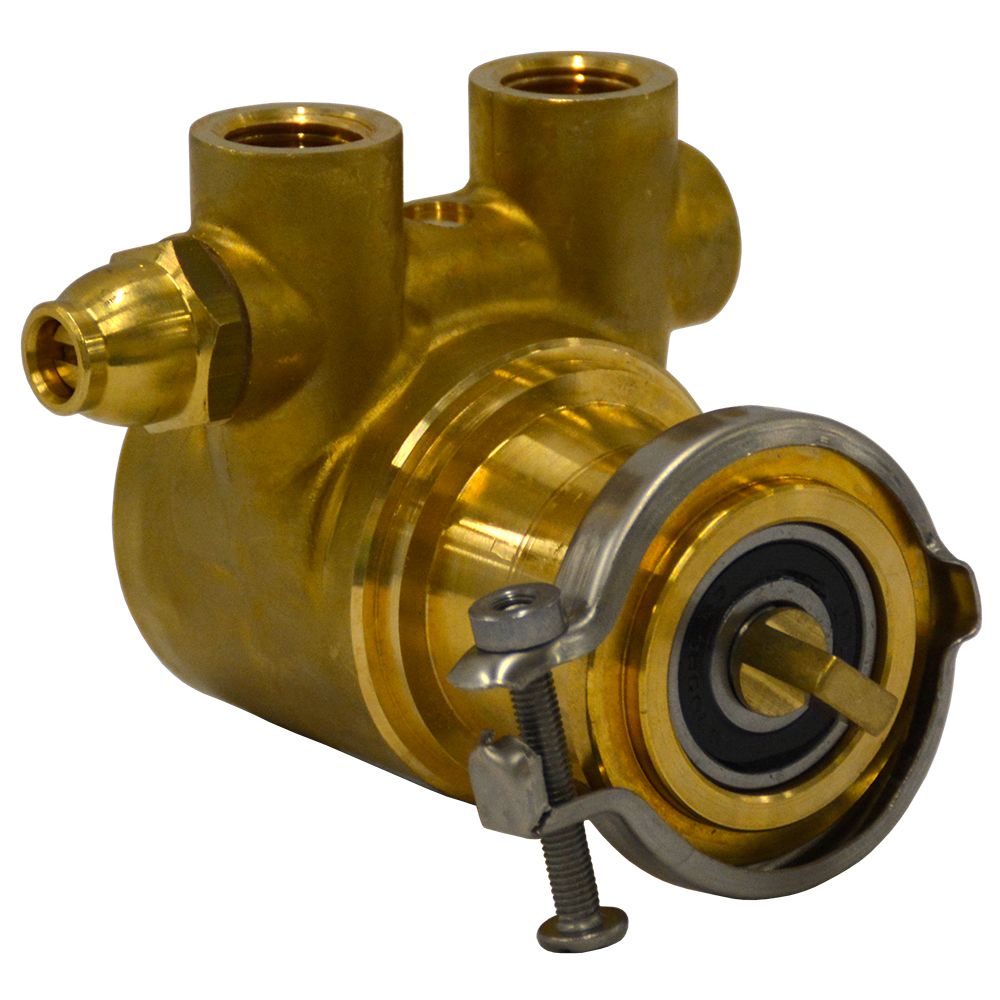

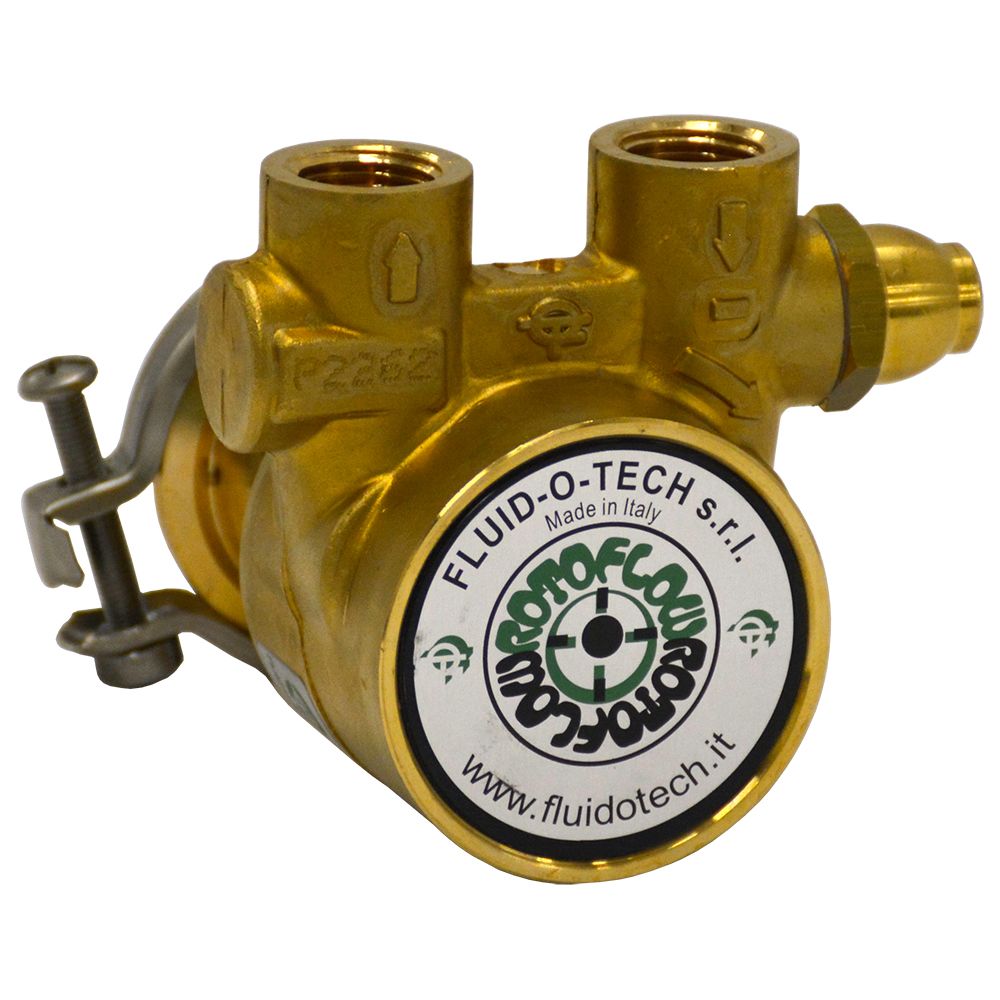

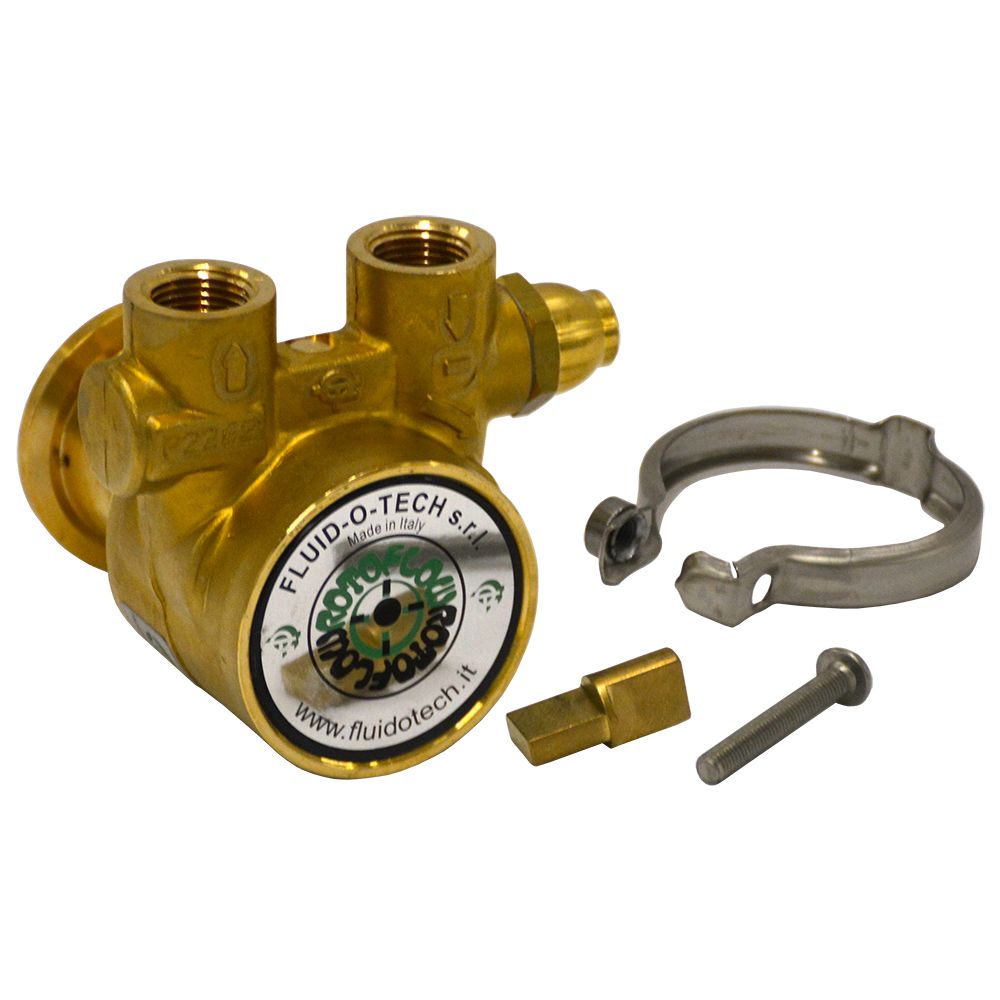

Fluid-o-Tech Lead Free Brass Rotary Vane Pump with Brass Key 105 gph 3/8" NPT

Fluid-o-Tech Lead-Free Rotary Vane Pump is made of brass and a stainless steel AISI 303 rotor, while the pumping section and the vanes are constructed of carbon graphite. The inlet and outlet ports are 3/8” NPT threaded. The Fluid-o-Tech pumps are designed to be directly connected to the motor with a stainless steel clamp. For different assembly options please check our technical info “optional mountings” page.

Specifications:

• Flow rate: 105 gallons per hour
• Material: lead-free brass housing, graphite chamber
• 3/8" NPT ports
• NSF approved Buna-N seal
• Band clamp mount
• Max Static Pressure: 290 psi
• Max Operating Temperature: 158°F

Applications:

• Beverage Vending Machines
• Booster Systems
• Cooling Systems
• Espresso Coffee Machines
• Post Mix Drink Dispensers
• Water Dispensers
• Water Treatment

NOTE: Compatible with the Procon 112A100F11BA250
