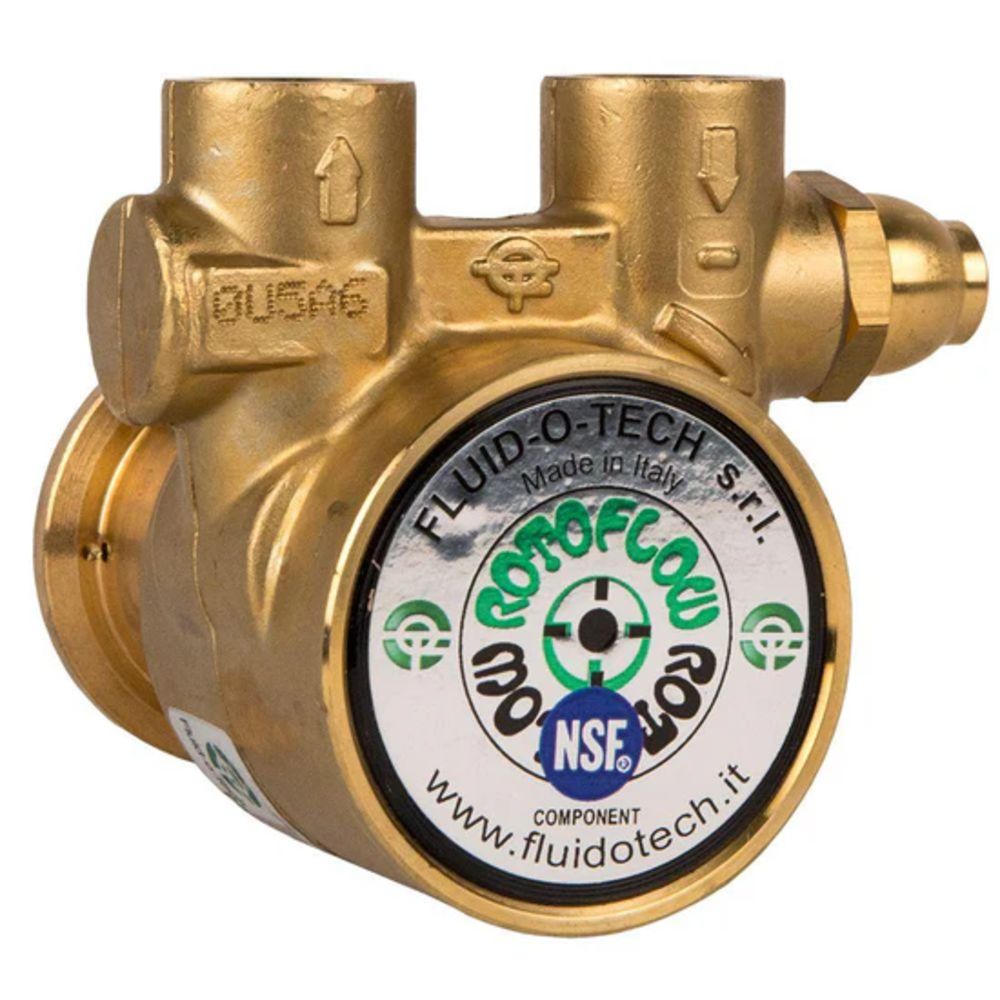

Fluid-O-Tech High Volume Rotary Vane Pump

Fluid-o-Tech’s high-volume Rotary Vane Pumps, marketed under the Rotoflow trademark, deliver versatile and reliable performance for demanding applications. Available in six flow ratings, these pumps are engineered to meet diverse high-volume pumping needs.

• Construction: Brass or stainless steel body with AISI 303 stainless steel rotor; graphitic carbon pumping chamber and vanes.
• Connections: 1/2" GAS or NPT threaded inlet/outlet ports.
• Bypass Valve: Built-in adjustable bypass for optimized flow control.
• Motor Compatibility: Connects to direct-coupling motors or M71/M80 UNELMEC frame motors using Fluid-o-Tech coupling and adapter sets.
• Temperature Range: Operates up to 70 °C (158 °F).

• Seals: Viton® (suffix -V) or EPDM (suffix -E) seals.
• NSF Certification: NSF-listed models for potable water (prefix: PA).

• Post-mix drink dispensers
• Cooling and booster systems
• Fuel injection systems
• Reverse osmosis
• Ultra-filtration systems
