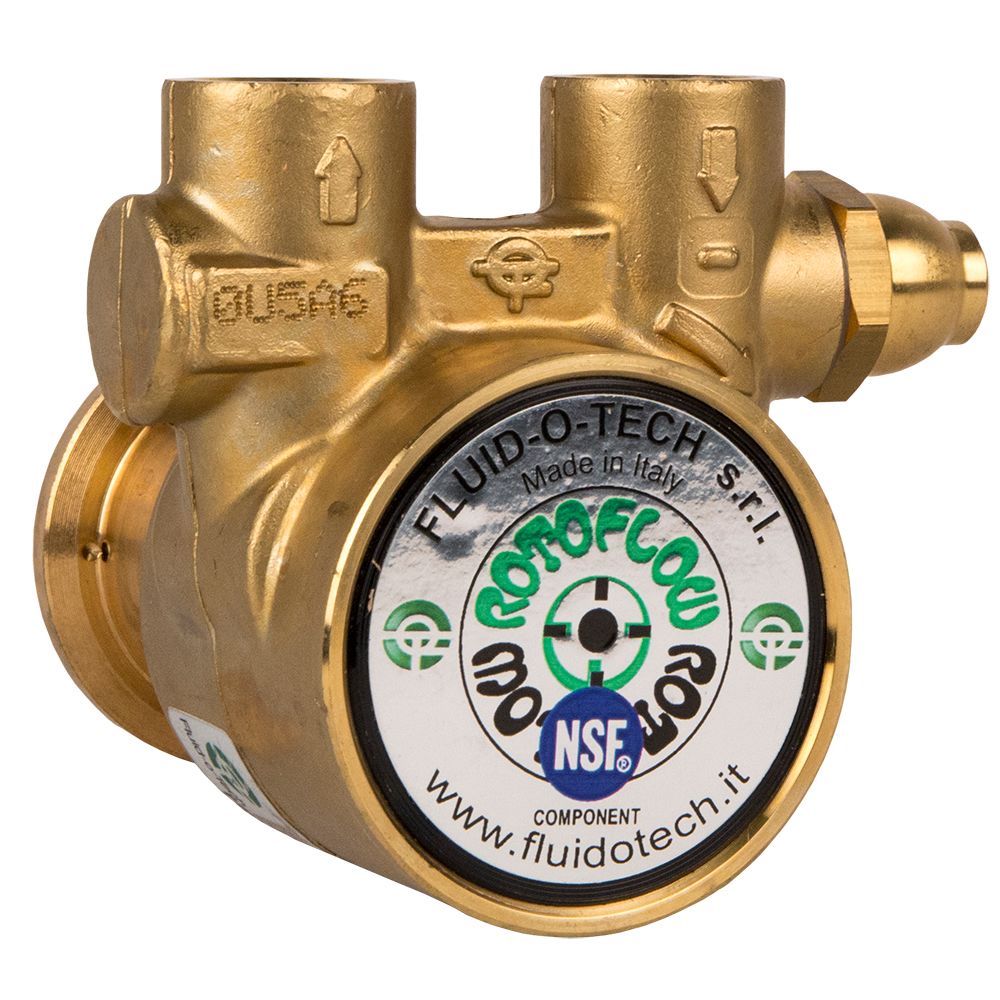

Fluid-o-Tech Brass Rotary Vane Pump 320 GPH Bypass - 1/2" NPT

Fluid-o-Tech PB1001 is a 320 gallon per hour rotary vane pump. The PB1001 has an NSF approved Buna-N seal, and comes with a slotted shaft and brass key. The pump housing is constructed out of brass, and comes with a band clamp mount and a pressure bypass.

Specifications:

• Flow rate: 320 gallons per hour
• Material: Brass housing & graphite chamber
• 1/2" NPT ports
• Clamp Mount: 4.2 lbs. (1.9kg)
• Max Static Pressure: 290 PSI
• Max Operating Temperature: 158°F
• High Volume Rotary Vane Pump

Fluid-o-Tech Rotary Vane Pump Applications

• Post-mix drink dispensers
• Cooling & booster systems
• Fuel injection systems
• Reverse osmosis systems
• Ultra-filtration systems
• Water dispensing systems
