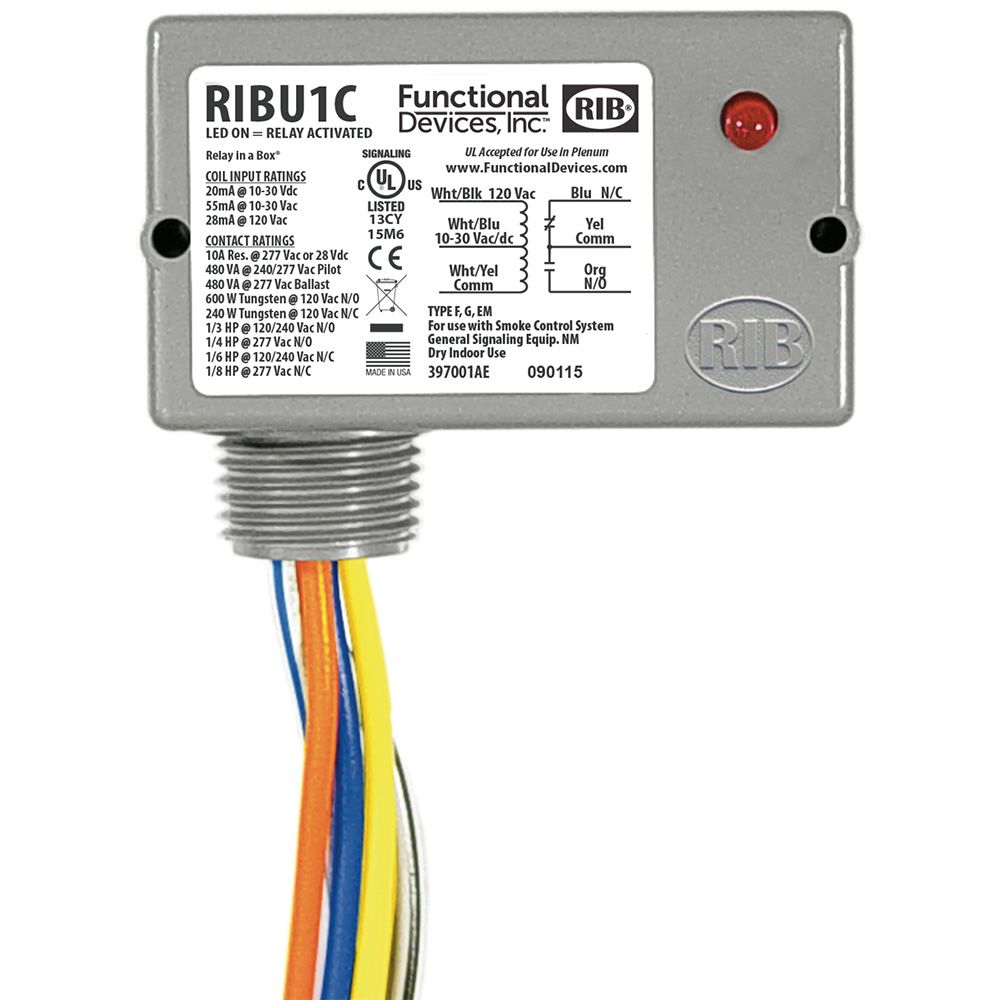

FloLogic RIB Irrigation Override Relay for System 3.5 with NEMA 4X Housing

The FloLogic RIB Relay for System 3.5 with NEMA 4X Housing is an irrigation override relay. This relay has been packaged to save time and money by combining the components in the unit. The RIBU1C features the relay, LED indicator, socket, and protective cover. This unit is designed for dry indoor use.

Specifications:

• Gold Flash: Yes • Operate Time: 20ms • Operating Temperature: -30 to 140° F • Dimensions: 1.70" x 2.80" x 1.50" with .50" NPT nipple • # Relays & Contact Type: One (1) SPDT Continuous Duty Coil
• Override Switch: No • Wires: 16", 600V • Relay Status: LED On = Activated • Humidity Range: 5 to 95% (noncondensing) • Expected Relay Life: 10 million cycles minimum mechanical • Approvals: UL Listed, UL916, UL864, C-UL California State Fire Marshal, CE, RoHS.
