Flexeon LP-350 Reverse Osmosis System 350gpd

Flexeon LP-350 Reverse Osmosis System 350gpd

208075

Pricing is available for wholesale customers only, please login to see prices.

Interested in becoming a partner?
Click here for more info.

In stock

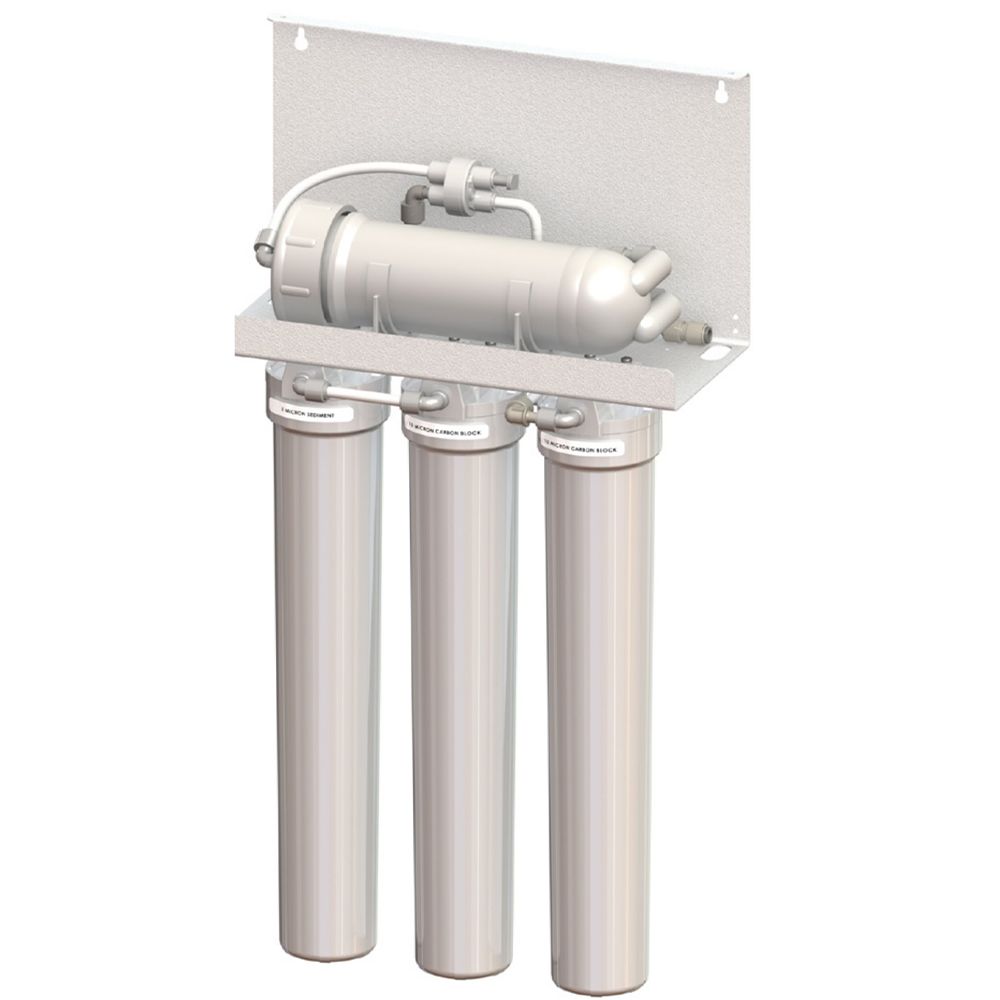

The Axeon LP-350 Stage Reverse Osmosis System is designed for light commercial use, and does not require a pump for usage. This system is cost effective, and features easy installation and maintenance. The Axeon LP-350 Reverse Osmosis System can be used for a variety of applications, including espresso and coffee machines, drinking water fountains and ice makers. The Axeon LP-350 is designed for mounting on a wall.

Axeon LP-350 Reverse Osmosis System Includes:
  1. (1) 5µm Sediment Prefilter - Removes dirt & sediment
  2. (1) 10µm Carbon Block Prefilter - Reduces chlorine, bad taste & odors
  3. (1) Reverse Osmosis Membrane Element
  4. AXEON TF-30121 Reverse Osmosis membrane housing
  5. AXEON 30121 Slim line cartridge housings 20"
  6. An automatic shut off valve and John Guest® fittings


Comparison Table
MODELS LP– 350 LP– 500 LP – 700
Design
Configuration Single Pass Single Pass Single Pass
Feedwater SourceA TDS < 500 TDS < 500 TDS < 500
Standard Recovery Rate % 40 46 38
Flow RatesB
Permeate Flow (gpm / lpm) 0.24 / 0.91 0.35 / 1.31 0.49 / 1.85
Minimum Feed Flow (gpm / lpm) 0.66 / 2.50 0.76 / 2.88 1.33 / 5.03
Maximum Feed Flow (gpm / lpm) 8.00 / 30.28 8.00 / 30.28 8.00 / 30.28
Connections
Feed (in) 3/8 QC 3/8 QC 3/8 QC
Permeate / Holding Tank (in) 3/8 QC 3/8 QC 3/8 QC
Concentrate (in) 3/8 QC 3/8 QC 3/8 QC
Membranes
Membrane Per Vessel 1 1 1
Membrane Quantity 1 1 2
Membrane Size 3012 3012 3012
Nominal TDS Rejection % 98 98 98
Vessels
Vessel Array 1 1 2 (Parallel)
Vessel Quantity 1 1 2
Pumps
Pump Included No Yes No
Pump Type N/A Aquatec 5800 N/A
System Electrical
Standard Voltage + Amp Draw N/A 110V, 50 / 60Hz, 1PH, 4A N/A
System Dimensions
Approximate Dimensions C / L x W x H (in /cm) 12.00 x 17.00 x 32.00 / 30.48 x 43.18 x 81.28 12.00 x 17.00 x 32.00 / 30.48 x 43.18 x 81.28 12.00 x 17.00 x 32.00 / 30.48 x 43.18 x 81.28
Approximate Weight (lbs / kg) 35 / 15.87 41 / 18.60 38 / 17.24

Documents

Flexeon LP-350 Reverse Osmosis System 350gpd Manual
