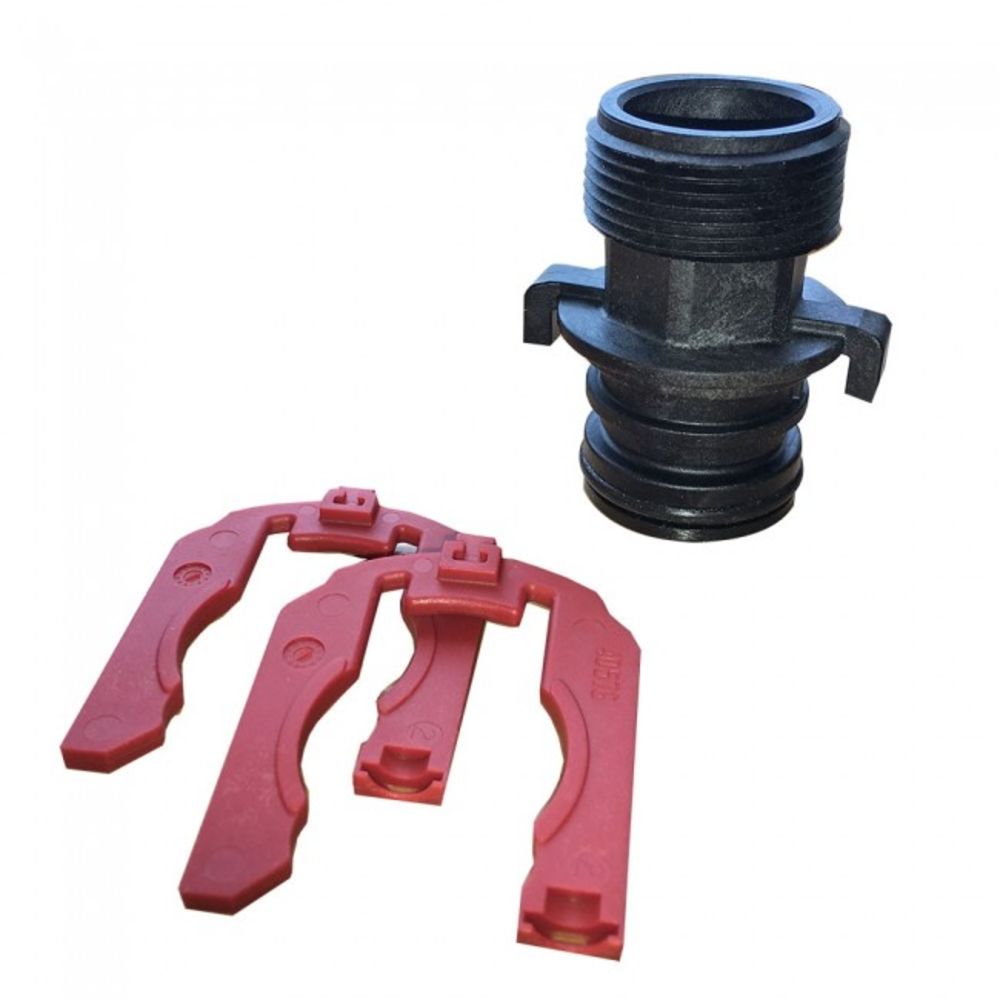

CH20520 Noryl Q/C Series Replacement Connector Kit for WellMate Pressure Tanks - 1" MNPT

SKU:CH20520

Pricing is available for wholesale customers only, please login to see prices.

Interested in becoming a partner?
Click here for more info.

Low stock

Choose: Single Pack of 4

The CH20520 is a replacement connector kit for WellMate pressure tanks. The connection for this kit is 1" MNPT and is extremely easy to install. If you choose to install the kit yourself please remember that all plumbing should be in compliance with local codes and standards.

Installation Instructions:

Turn off electrical power to pump at control box
Drain & depressurize system of water and air pressure and remove tank
Place tank in vertical position on a level surface. The base should be fully supported
Attach threaded connector to manifold or tank tee (see #4 in drawing below)
Lubricate o-ring with lube packet and press tank drain into the plastic connector used in step 4 (see #5 in drawing below)
Insert red H-clip to lock fitting drain assembly (see #6 in drawing below)
Connect all plumbing lines
Be sure to use an adequately sized pressure relief valve and installed it on the inlet line to the tank
Check and adjust precharge air pressure of the tank while it's empty. Replace air stem cap, and firmly tightening the air stem

NOTE: these are accessories for the ROMATE-15 thru ROMATE-40; WellMate WM-4, WM-6, WM-9, WM-12
