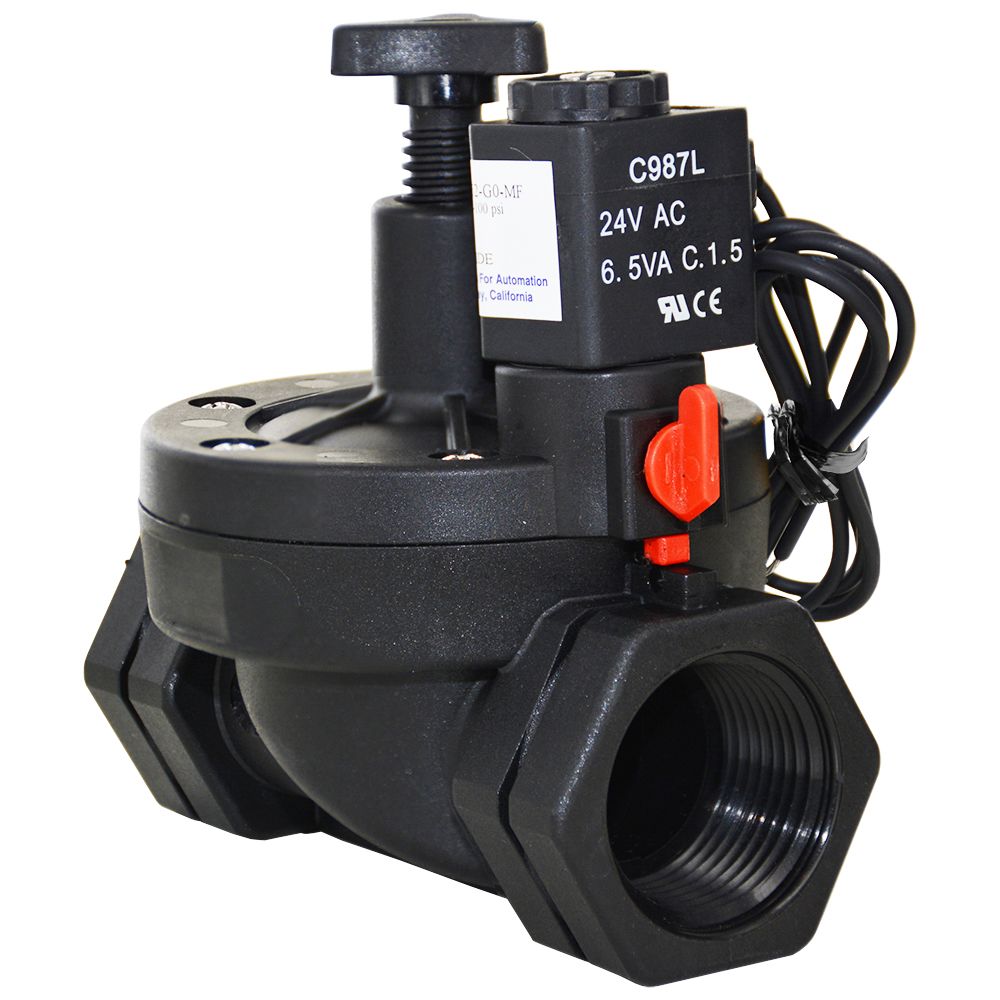

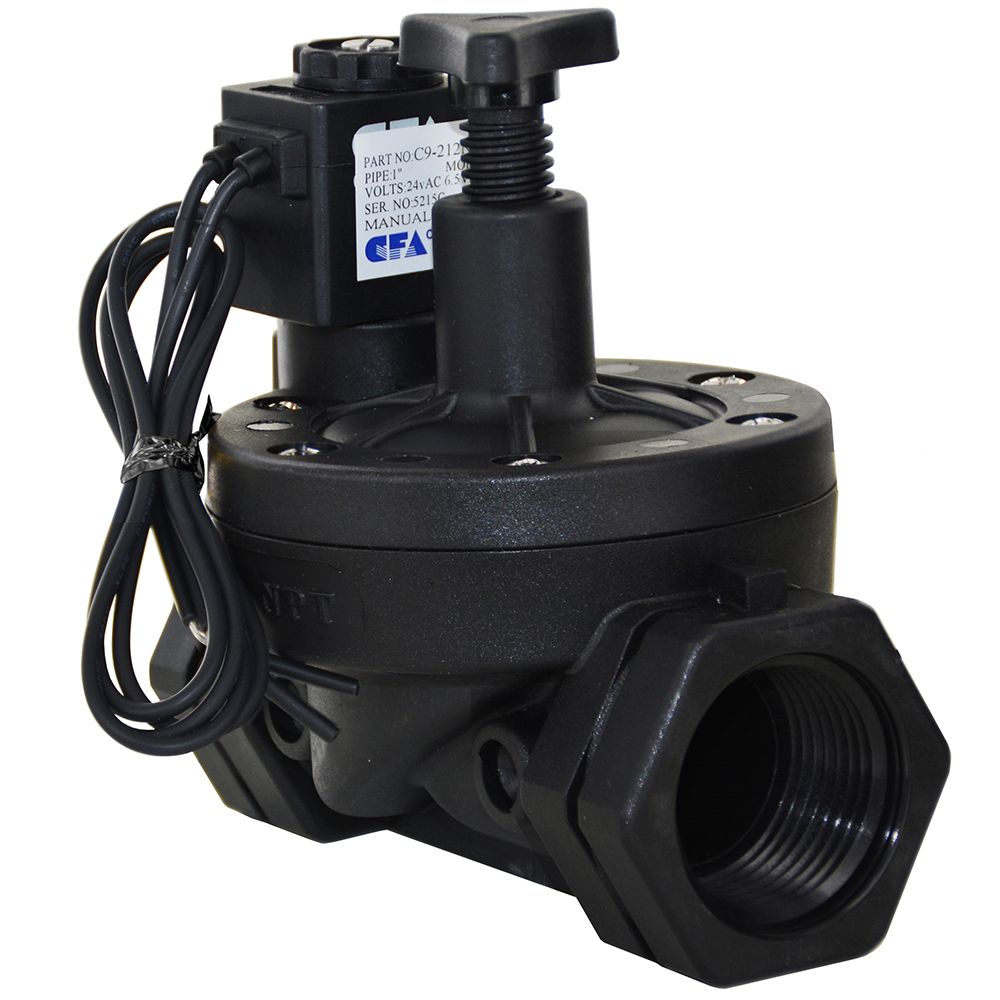

CFA C9 Series Solenoid Valve w/ Manual Override & Flow Control Normally Closed 1" FPT 24VAC

The CFA C9-212N6252-G0-MF-24VAC is a normally closed solenoid valve uniquely suited for use in consumer applications where high reliability and low cost are needed. This valve is designed to allow maximum flow over a wide range of pressures.

Quality Construction:

The internal diaphragm allows smooth opening and closing, which prevents problems with surge and water hammer. The body is made of glass reinforced nylon and the seals are durable Viton. This valve also features a manual override as well as a flow control.

Applications:

• Carwash
• Industrial Applications
• Process Applications

Specifications:

• Connection Size: 1" FPT
• Power Connection: Lead Wires
• Voltage: 24v AC
• Body: Nylon
• Diaphram Material: EPDM
• Seal Material: Viton
• Internal Components: Stainless Steel
• Media Temperature: 41 - 122 °F
• Response Time: 75 - 150 ms
• Operating Pressure: 5 - 145 PSI
• Media: Liquid
• Normally Closed
• Manual Override
• Flow Control
