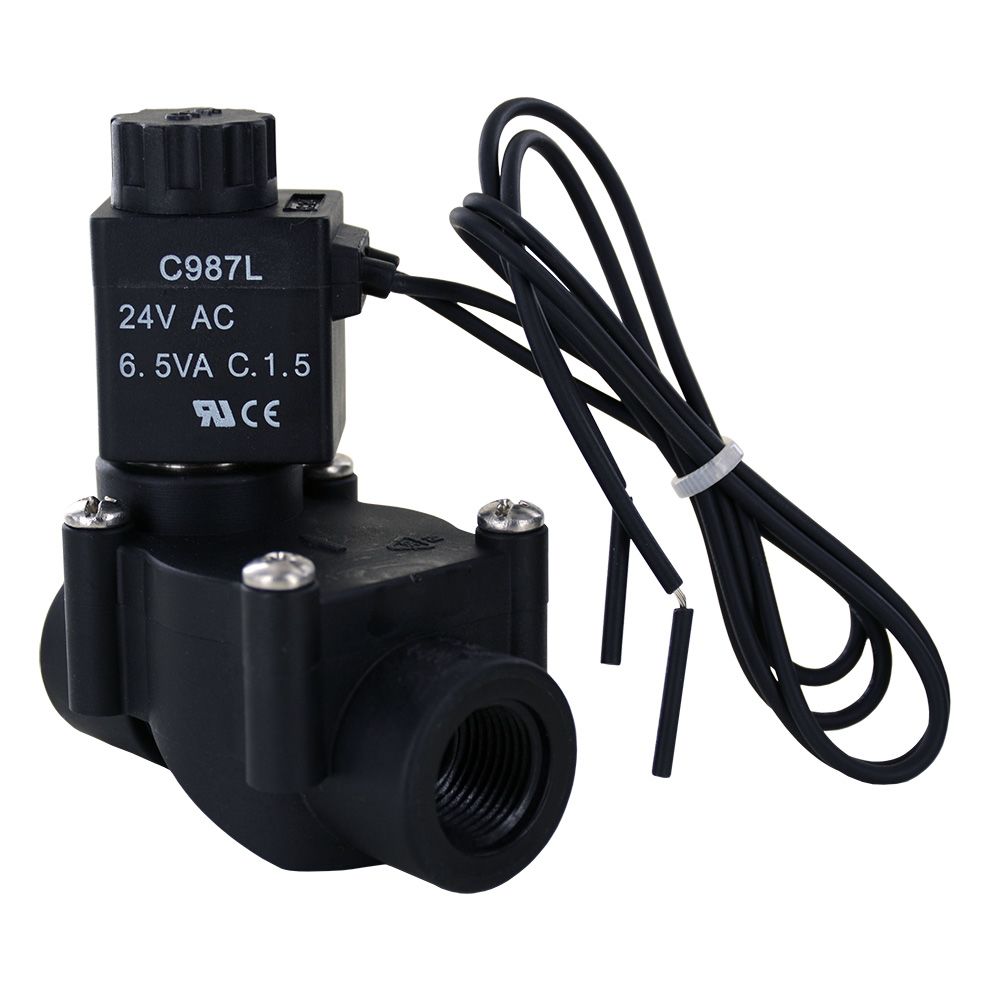

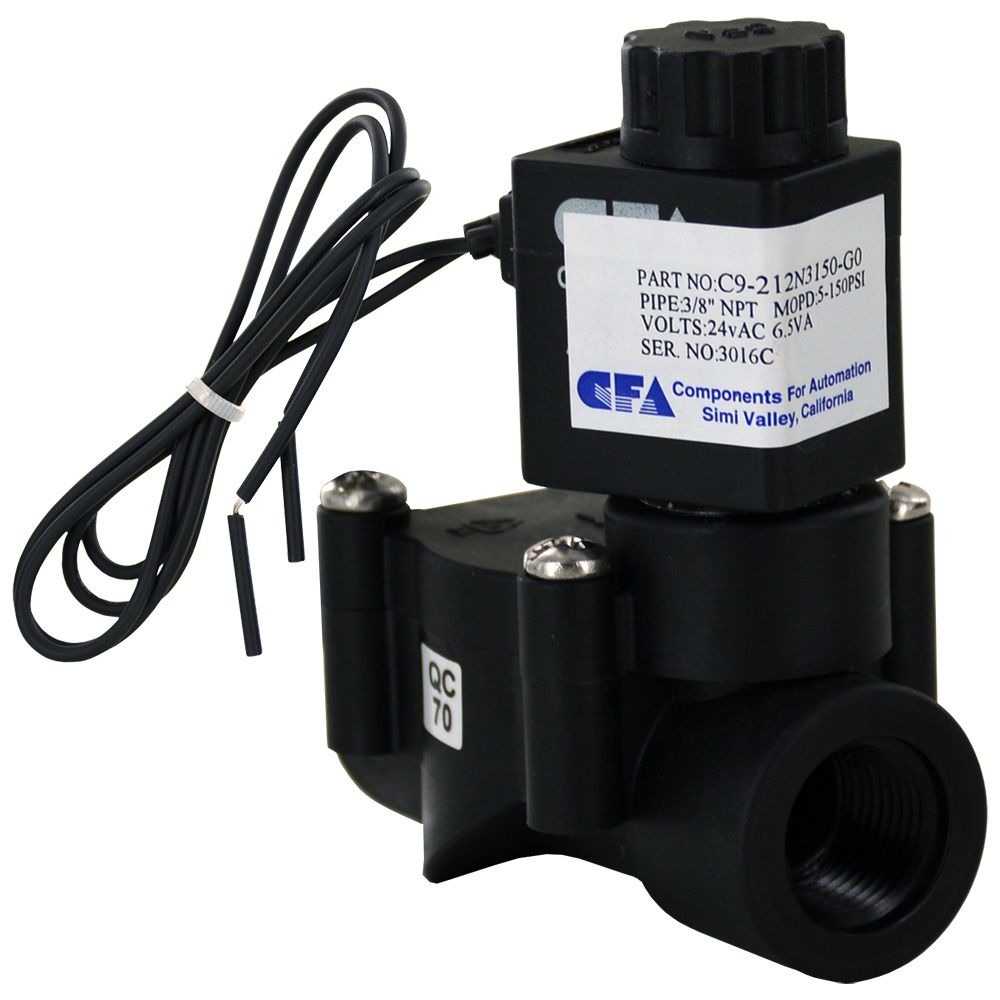

CFA C9 Series Solenoid Valve Normally Closed 3/8" FPT 24VAC

CFA C9 Series Solenoid Valve Normally Closed 3/8" FPT 24VAC

C9-212N3150-G0-24VAC

Pricing is available for wholesale customers only, please login to see prices.

Interested in becoming a partner?
Click here for more info.

In stock

Choose:
The CFA C9-212N3150-G0-24VAC solenoid valve is uniquely suited for use in consumer applications where high reliability and low cost are needed. The valve housing is constructed of nylon, the diaphragm is made of buna-N, and the seals are viton.

Specifications:
  • Connection Size: 3/8" FPT
  • Power Connection: Lead Wires
  • Voltage: 24v AC
  • Body: Nylon
  • Diaphragm: Buna-N
  • Seal Material: Viton
  • Orifice Size: 1/2"
  • Media: Liquid
  • Media Temperature: 41 - 122 °F
  • Response Time: 25 - 100mS
  • Operating Pressure: 8 - 150 PSI
  • Normally Closed
