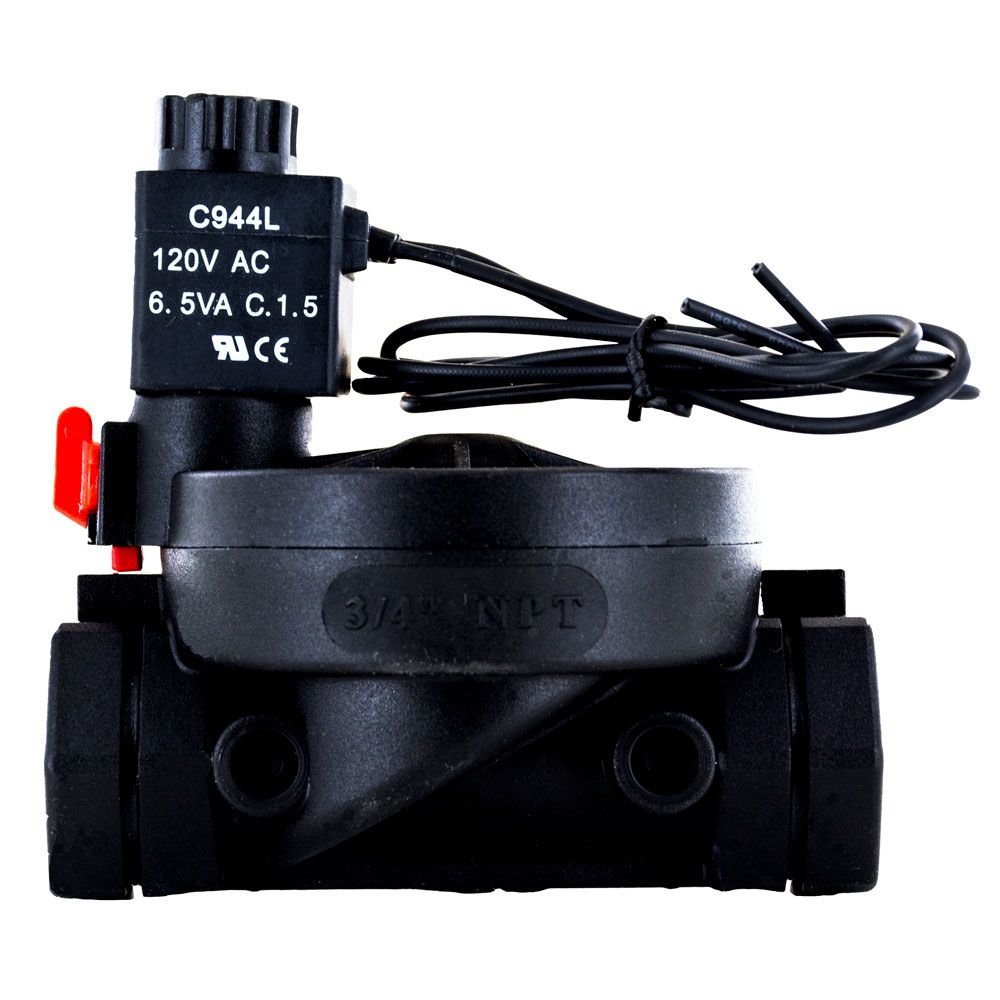

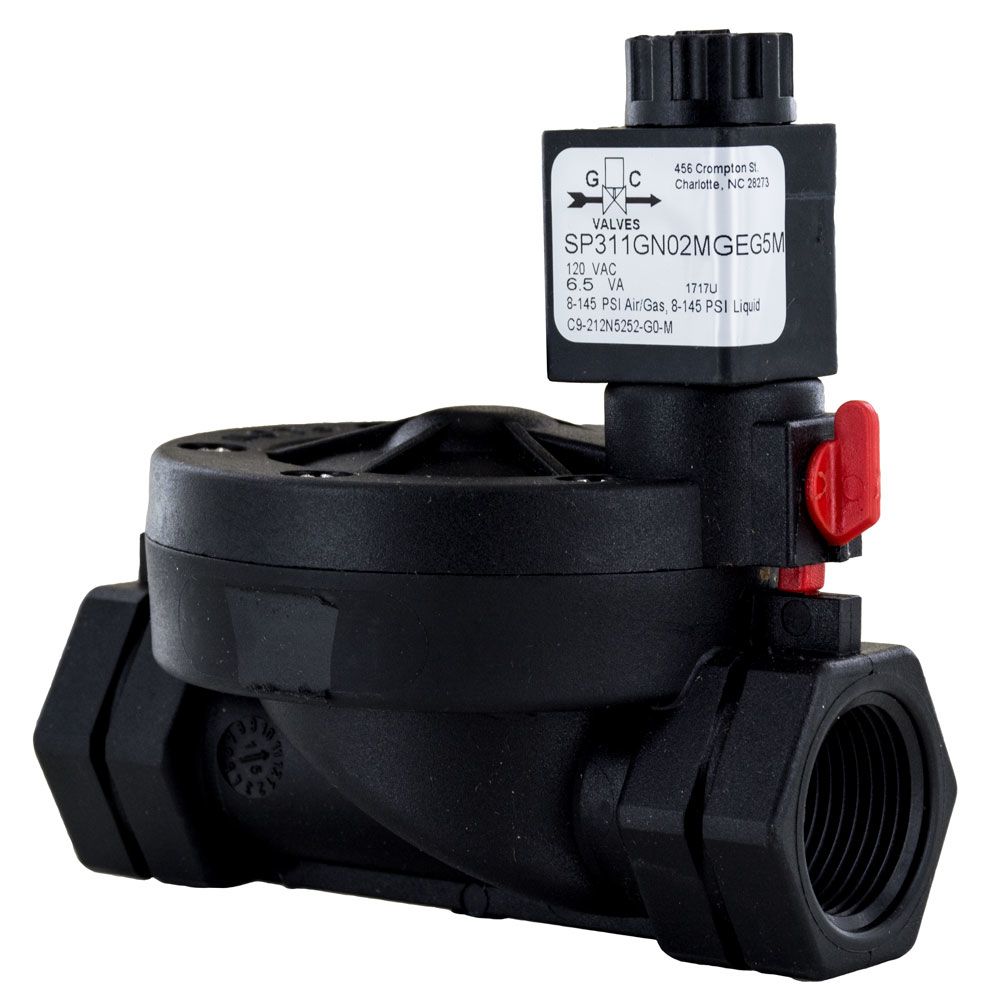

CFA C9 Series Solenoid Valve Normally Closed 3/4" FPT 120V

The C9-212N5252-G0-M-120VAC is a normally closed solenoid valve uniquely suited for use in consumer applications where high reliability and low cost are needed. This valve is designed to allow maximum flow over a wide range of pressures.
Quality Construction The internal diaphragm allows smooth opening and closing, which prevents problems with surge and water hammer. The body is made of glass reinforced nylon and the seals are durable Viton.

Specifications:

• Connection Size: 3/4" FPT

• Power Connection: Lead Wires

• Voltage: 120v AC

• Body: Nylon

• Diaphram Material: EPDM

• Seal Material: Viton

• Internal Components: Stainless Steel

• Media Temperature: 41 - 122 °F

• Response Time: 75 - 150 ms

• Operating Pressure: 5 - 145 PSI

• Media: Liquid

• Normally Closed


Applications:

• Carwash

• Industrial Applications

• Process Applications
• Water Industries
• HVAC
