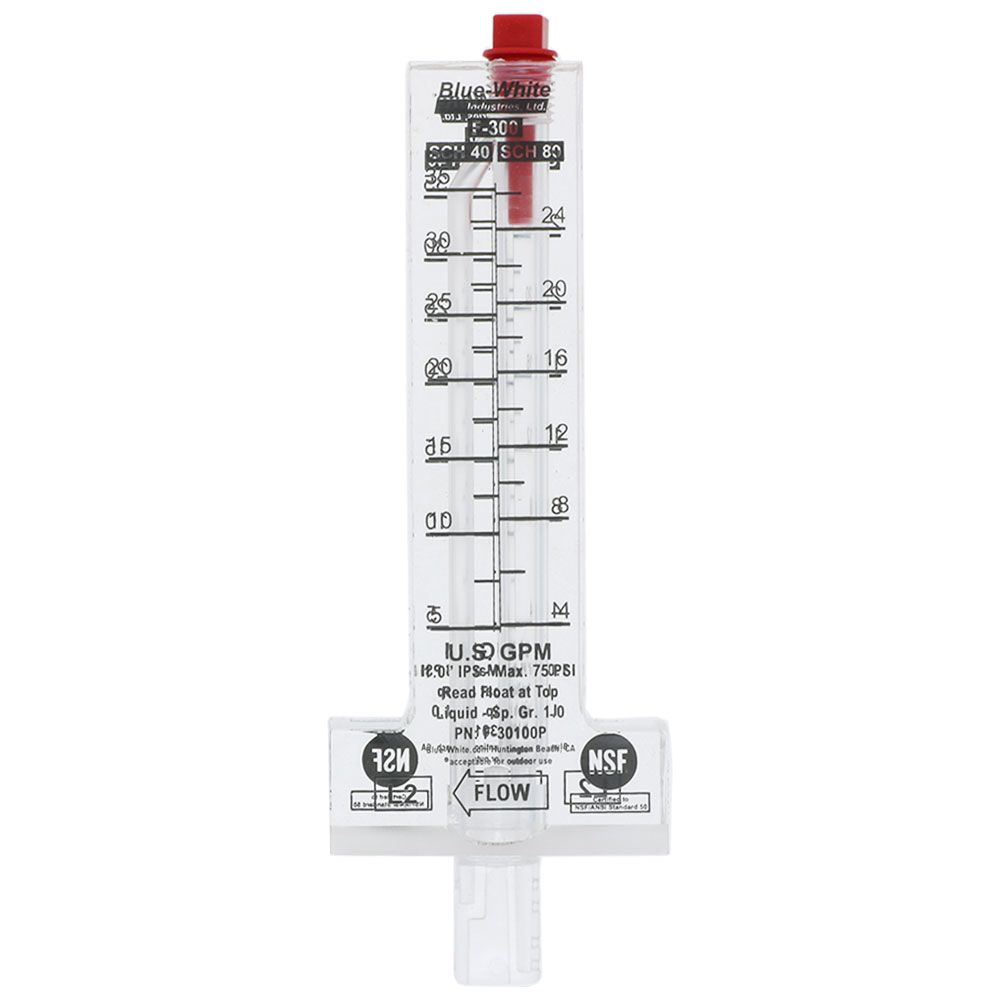

Blue-White F-300 SADDLE Rotameter

The Blue-White F-300 Flowmeters are made of one piece machined acrylic bodies and corrosion resistant 316SS or Teflon internal float materials. Dual GPM/LPM scales are printed on both sides of the meter. The F-300 mounts easily to existing horizontal pipe; no unions or adapters required!

Specifications:

• Maximum Temperature = 190°F at 0 PSI
• Maximum Pressure = 150 PSI at 70°F
• Accuracy = +/- 10% (of the full scale reading)
• Mounts onto horizontal pipe
• Mounting SS clamps and gasket included
• Acceptable for outdoor installations (direct sunlight)
• Pitot (impact) tube design makes it easy to install on existing pipe

NOTE: The F-300 series flowmeters should only be used on the size and type of pipe for which they were intended. Incorrect use will result in inaccurate readings and leakage problems.
