Home / Fittings & Valves / Fittings / Barb Tee x Male Branch - 3/16 ID x 1/4 MNPT
  • Barb Tee x Male Branch - 3/16 ID x 1/4 MNPT
  • Barb Tee x Male Branch - 3/16 ID x 1/4 MNPT
  • Barb Tee x Male Branch - 3/16 ID x 1/4 MNPT
  • Barb Tee x Male Branch - 3/16 ID x 1/4 MNPT
1 4
Parker

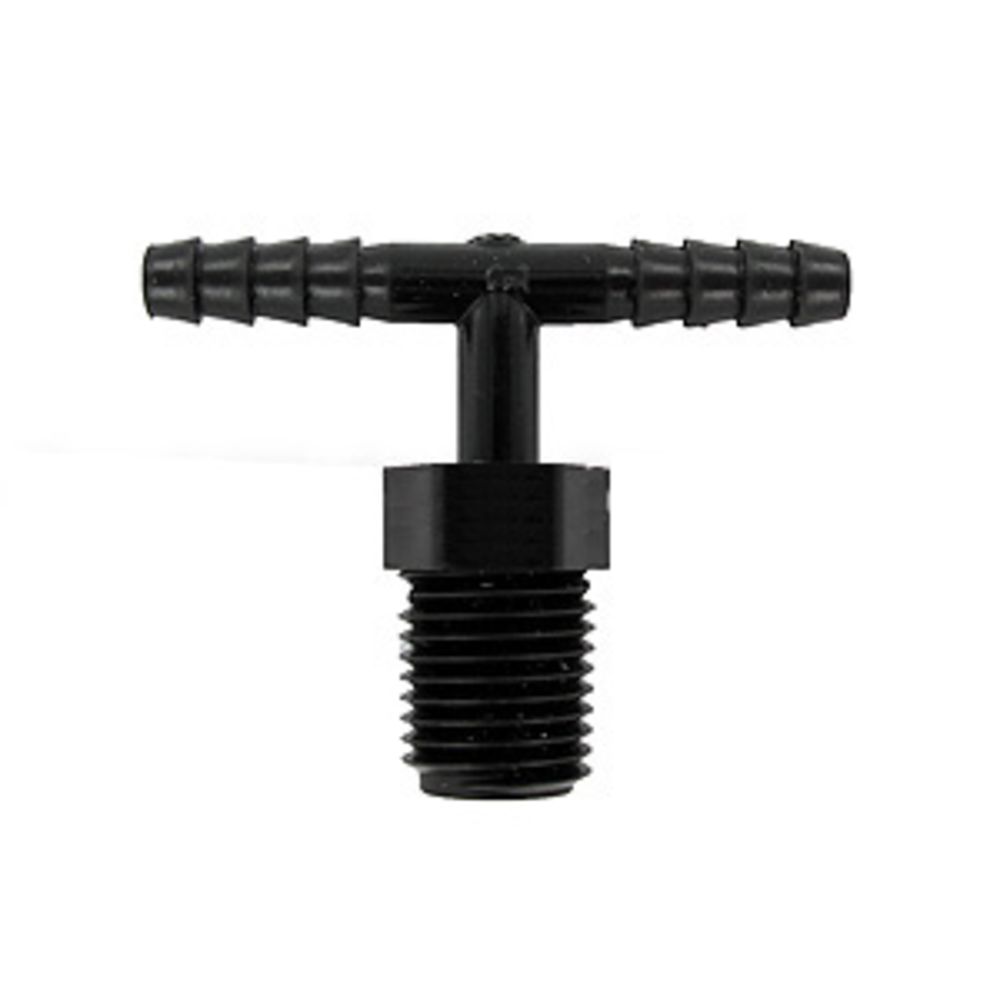

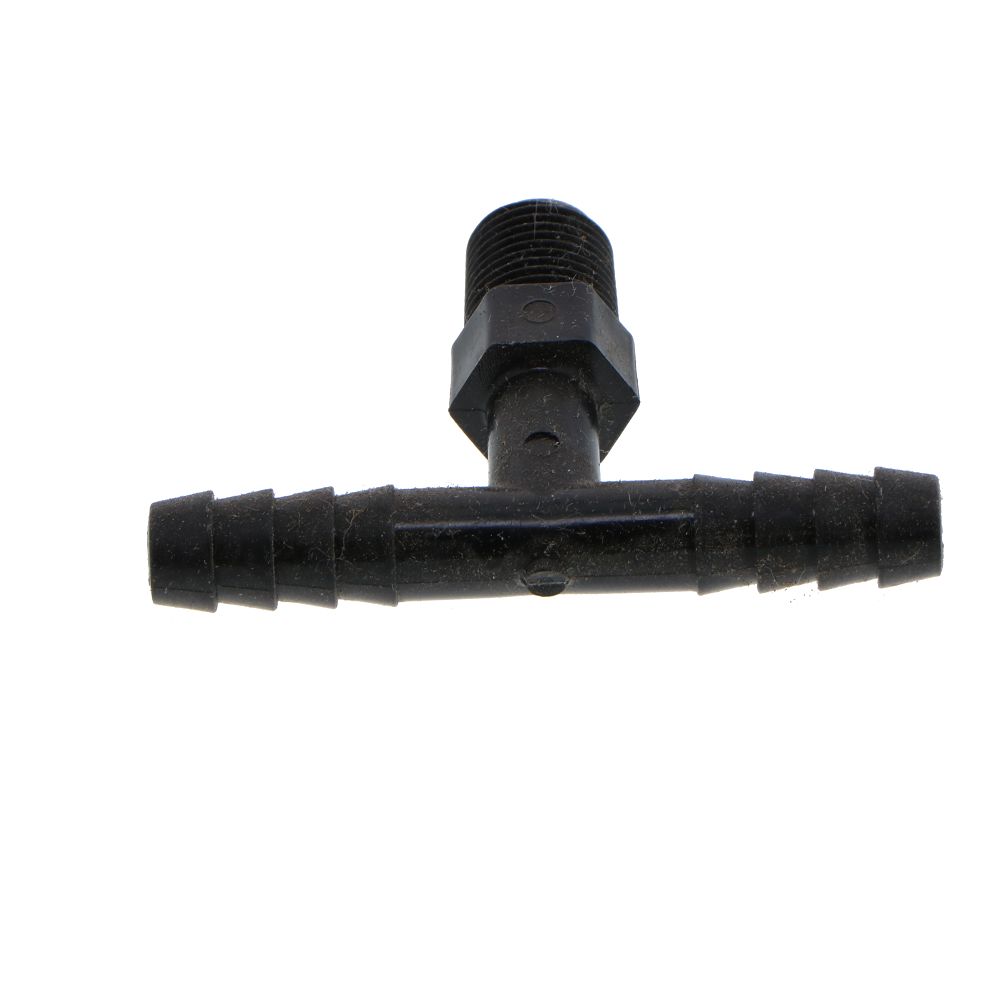

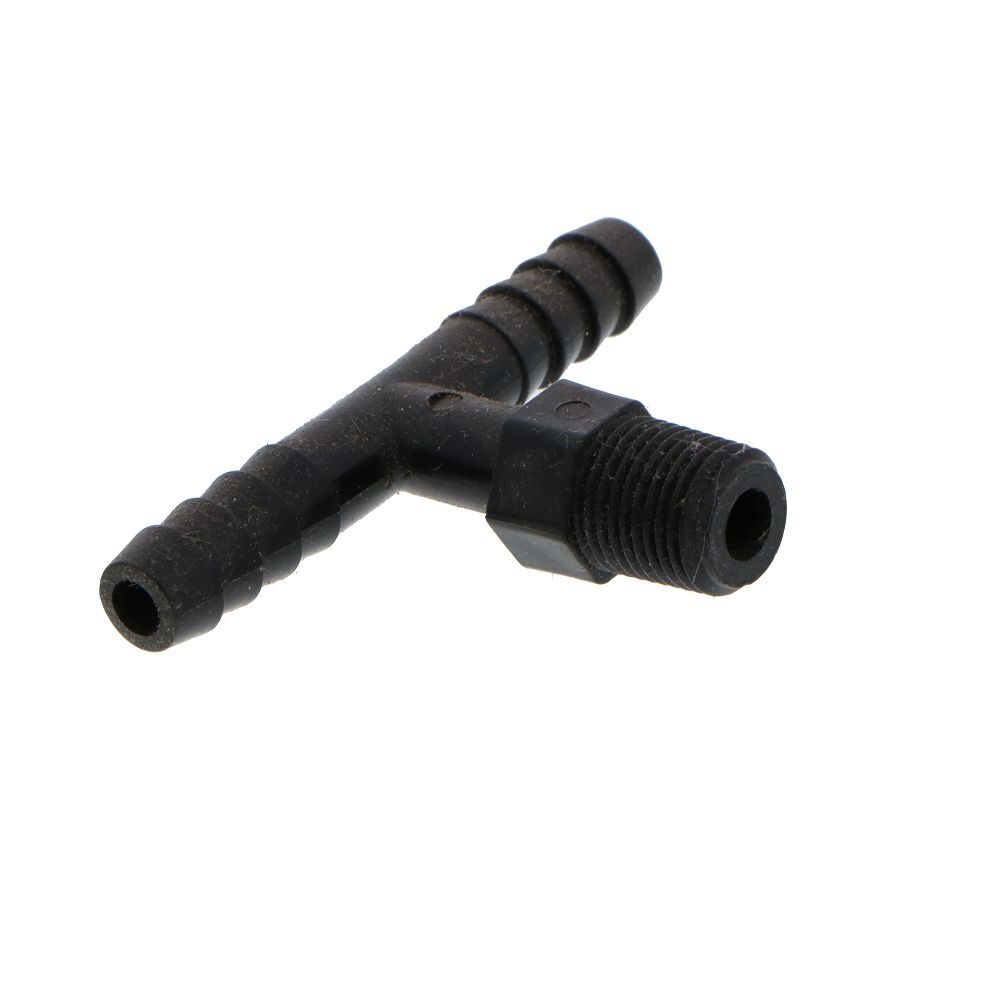

Barb Tee x Male Branch - 3/16 ID x 1/4 MNPT

Barb Tee x Male Branch - 3/16 ID x 1/4 MNPT

MTB-0304PE

Pricing is available for wholesale customers only, please login to see prices.

Interested in becoming a partner?
Click here for more info.

Low stock

Choose:
Par-Barb fittings are precision injection molded from high strength, chemically inert, thermoplastic materials. Par-Barb fittings meet FDA and NSF-51 specifications for food contact.

Specifications:
  • Temperature Range: 65º F to 190º
  • Max Working Pressure: 125 psi


Par-Barb

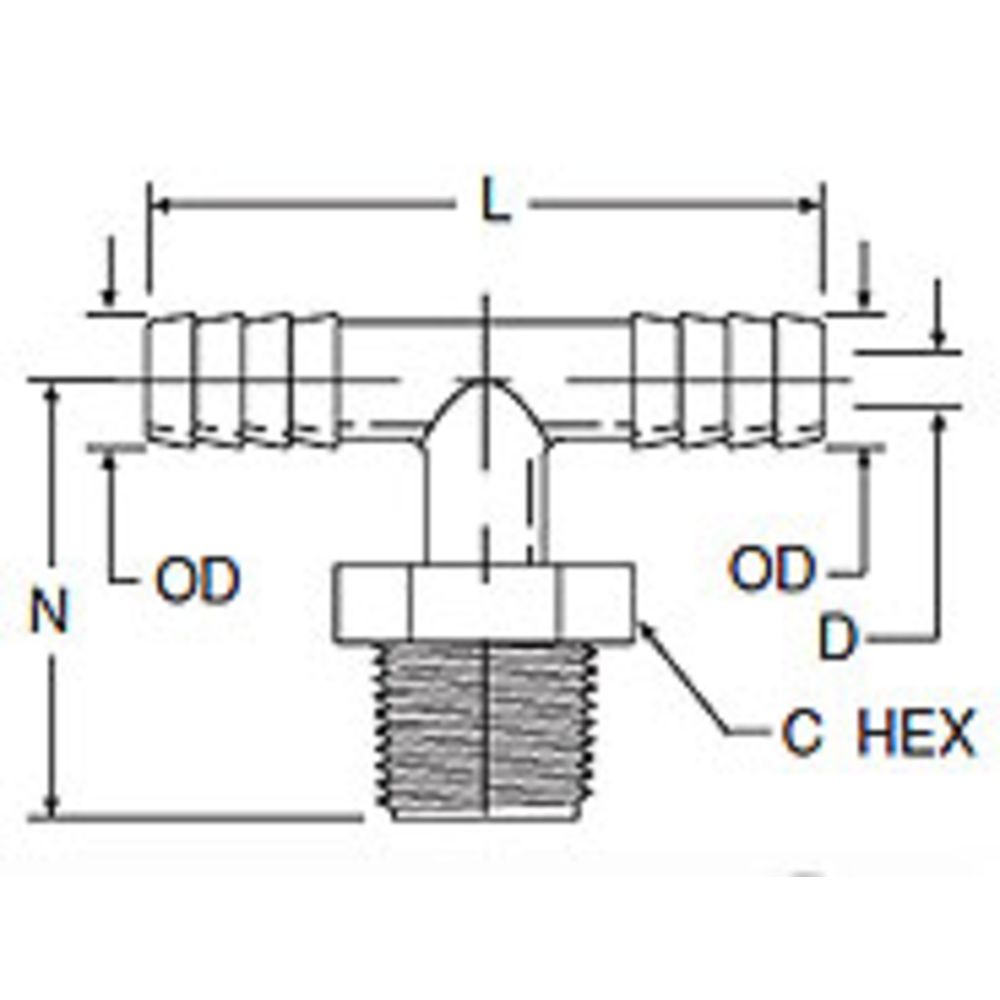

Part Number 		Tube I.D. NPTF
Thread 		C
Hex 		L N D
 P3MTB4 3/16 1/4 9/16 1.941 1.406 .106

Documents

Barb Tee x Male Branch - 3/16 ID x 1/4 MNPT Manual

Shipping Information

Shipping costs are based on your order’s weight, location, and selected shipping option. We strive to ship orders quickly, with expedited orders (Next Day Air or 2 Day) going out the same business day if placed before 4:30PM EST.
