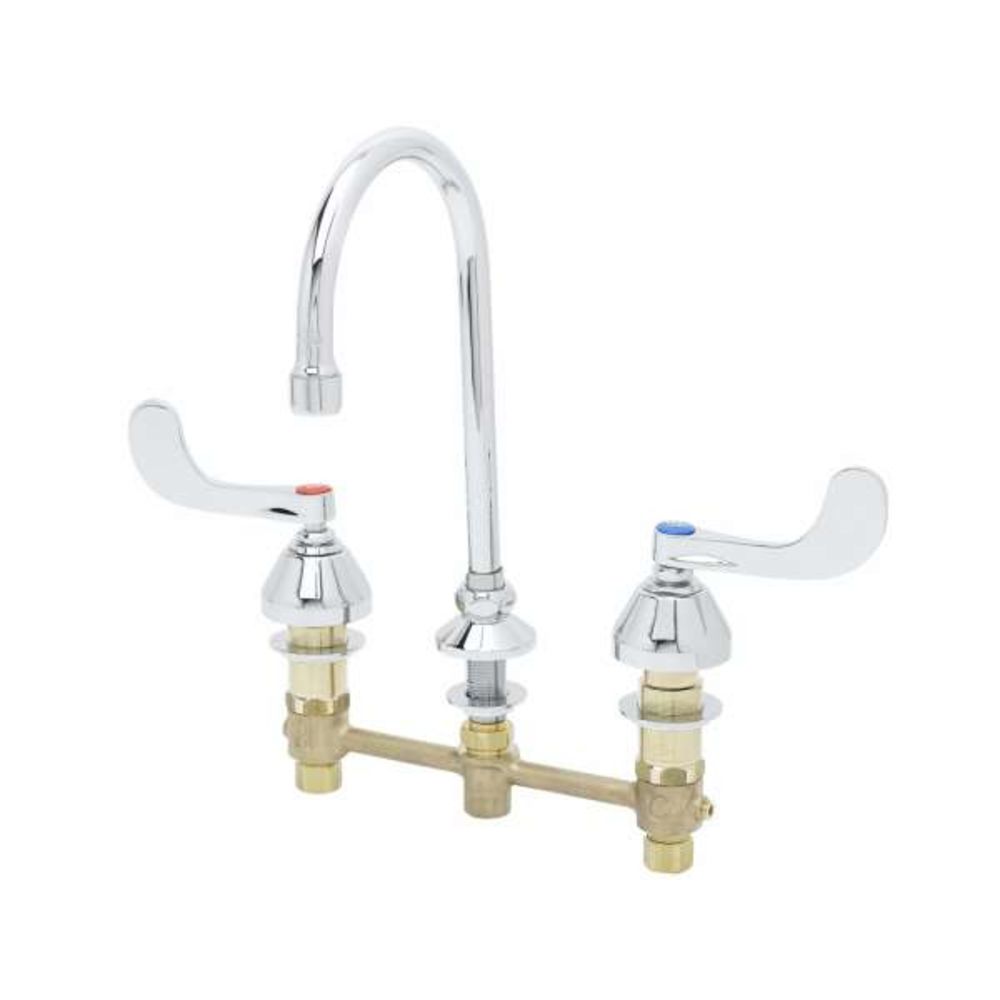

B-2866-05 Medical Faucet, 8" Centers, Swivel/Rigid GN, Non-Splash Aerator, 4" Wrist Action Handles

8" concealed deck mount mixing faucet with forged brass body, 5 3/4" swivel/rigid gooseneck with 2.2 GPM aerator, compression cartridges with spring checks, 4" wrist action handles, chrome plated escutcheons and1/2" NPT male inlets with coupling nuts. Certified to ASME A112.18.1/CSA B125.1, NSF 61-Section 9 and NSF 372. Meets ADA ANSI/ICC A117.1 requirements.

• Nozzle Flow: 2.2 GPM (8.33 L/min)
• Pressure Max: 125 psi (8.62 bar)
• Pressure Min: 20 psi (1.38 bar)
• Temperature Max: 140 F (60℃)
• Temperature Min: 40 F (4.44℃)

• 1/2" NPT male inlets w/ coupling nuts
• 2.2 GPM aerator, Series 1 (B-0199-01)
• 4" wrist action handles w/ color coded indexes
• 5 3/4" swivel/rigid gooseneck
• 8" EasyInstall concealed deck mount mixing faucet w/ forged brass body
• Lock washer provided for rigid application
• Material: Forged brass body, polished chrome plated brass tubular spout and chrome plated metal handles & escutcheons.
• Quarter-turn Eterna compression cartridges w/ spring checks to prevent cross flow of water
