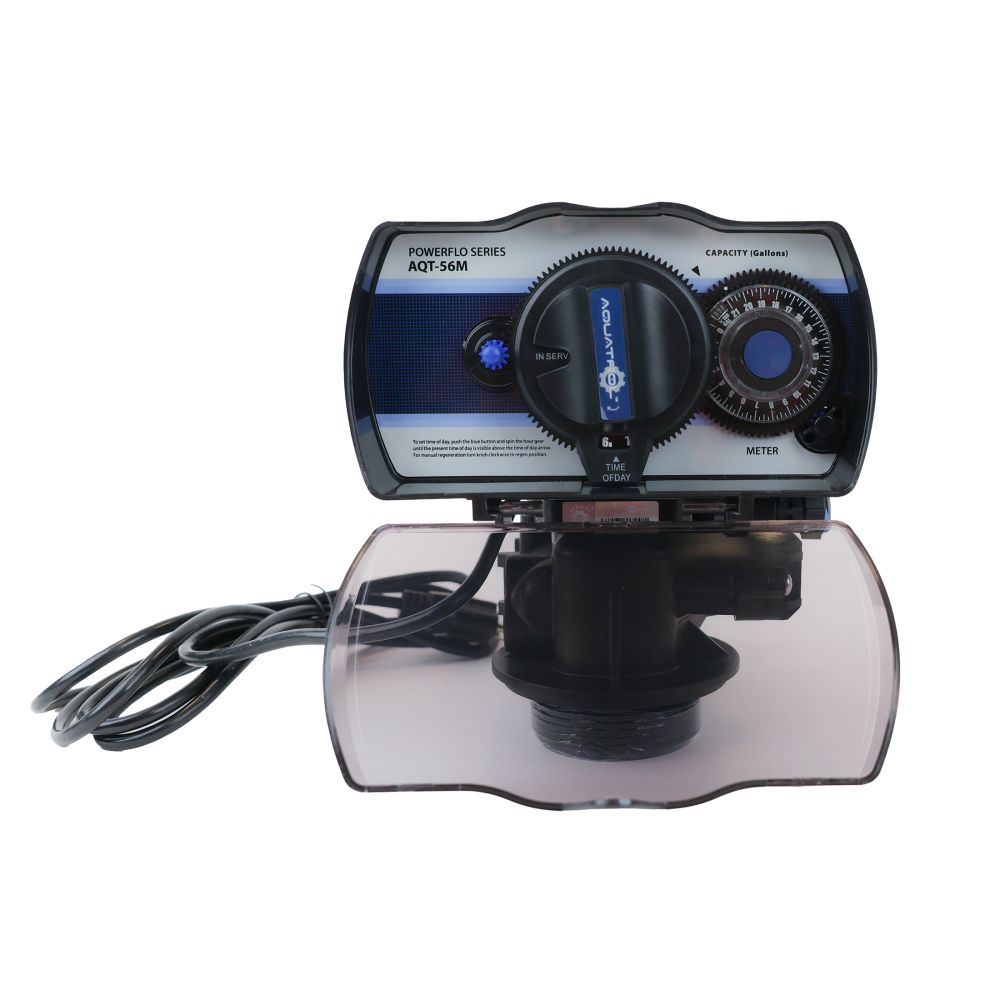

Aquatrol AQT-56 Softener/Meter Valve, 110V/60Hz

Aquatrol AQT-56 Softener/Meter Valve, 110V/60Hz

The Aquatrol AQT-56 Series is one of the most reliable and competitive residential water softener valves available worldwide. Designed with durability and efficiency in mind, it combines a modern design, premium materials, and versatile flow options to deliver superior performance. With continuous flow rates up to 20–26 gpm, the AQT-56 is ideal for use on filter systems with tanks up to 10” diameter and softener systems with tanks up to 14” diameter.

Built to last, this valve integrates flexible design options including DLFC and BLFC configurations, and offers both timer and meter-based control for customized system operation. Backed by Aquatrol’s trusted fiberglass tanks and a robust warranty, the AQT-56 is a proven solution for reliable, cost-effective water treatment.

Key Features & Benefits

• High Performance Flow – Service flow rate up to 26 gpm and backwash up to 7 gpm.

• Flexible Valve Options – Compatible with AQT-56ST, AQT-56SM, and AQT-56-METER configurations.

• Durable Construction – 3/4” Noryl valve with optional 1” or 3/4” NPT yoke for added versatility.

• Smart Control – Manual time, flow, and 2100-gallon meter control with adjustable brine refill for precision operation.

• Aquatrol Diffuser & Resin – Engineered with Aquatrol diffuser, MED-CAT100E resin, and Aquatrol-ready spare parts.

• Easy Maintenance – Simple servicing design with polycarbonate lid and user-friendly operation.

• Warranty Protection – 10-year warranty on 6”–13” tanks (5-year on 14”–63”), ensuring long-term reliability.

• Certified & Safe – NSF/ANSI Standard 61 certified tanks for safe and dependable performance.

Easy Installation & Operation

• Simple connection to 3/4” or 1” systems with yoke flexibility.

• Designed for both residential and light commercial applications.

• Works seamlessly with Aquatrol fiberglass pressure tanks and accessories.

• Minimal setup required – system is ready to work with Aquatrol resin and original spare parts.

AQT-56ST / AQT-56SM Valve Specifications
