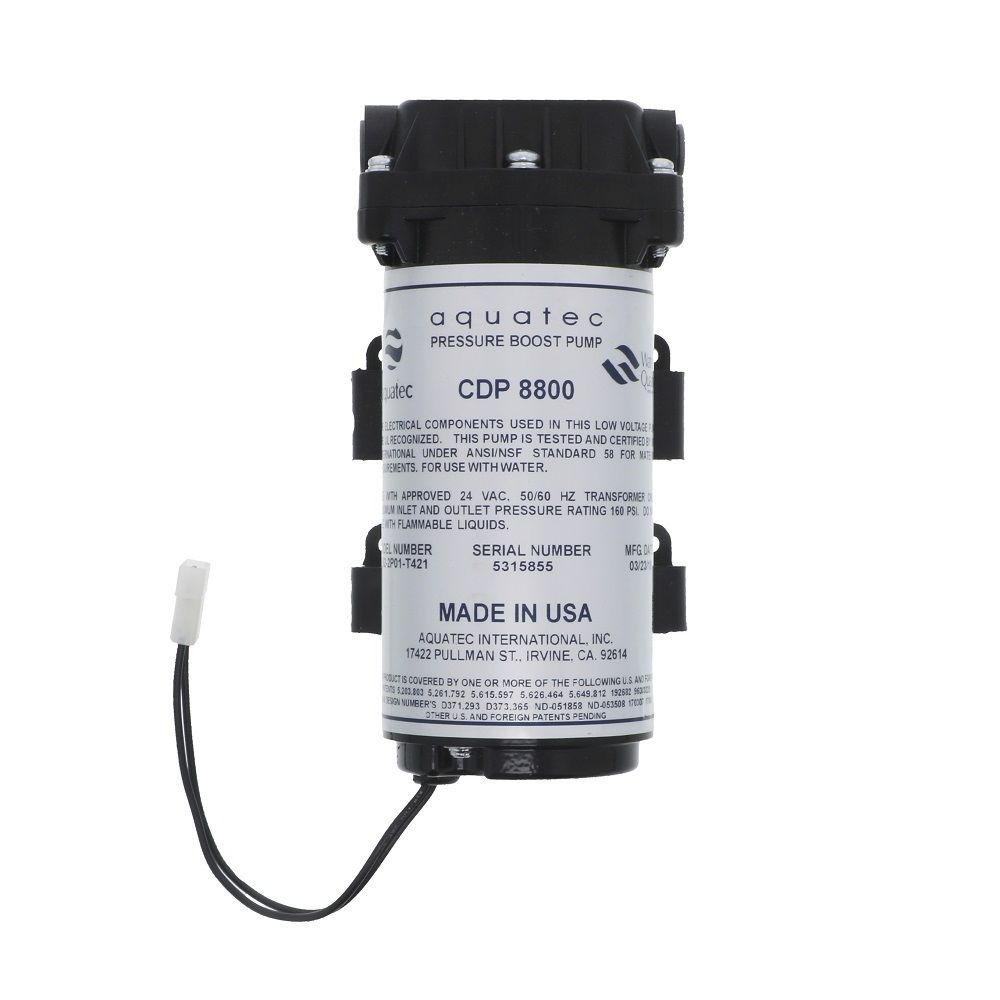

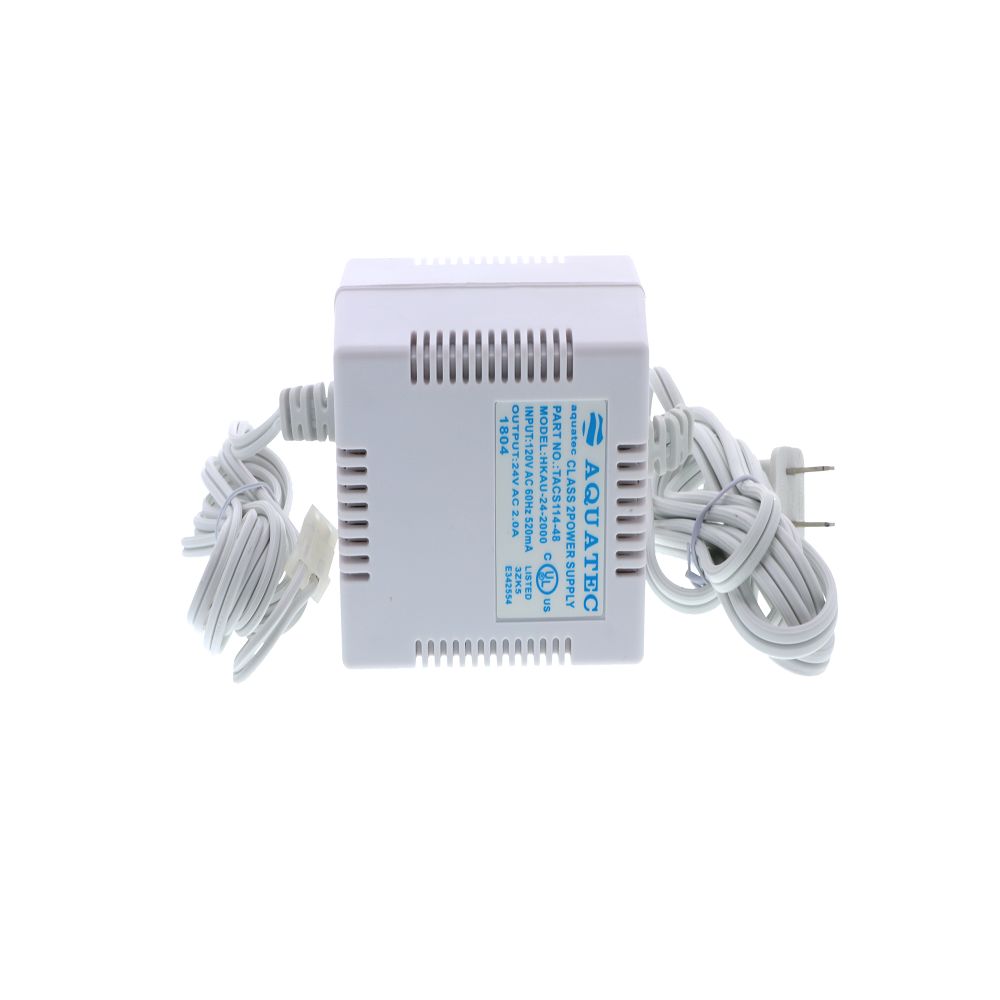

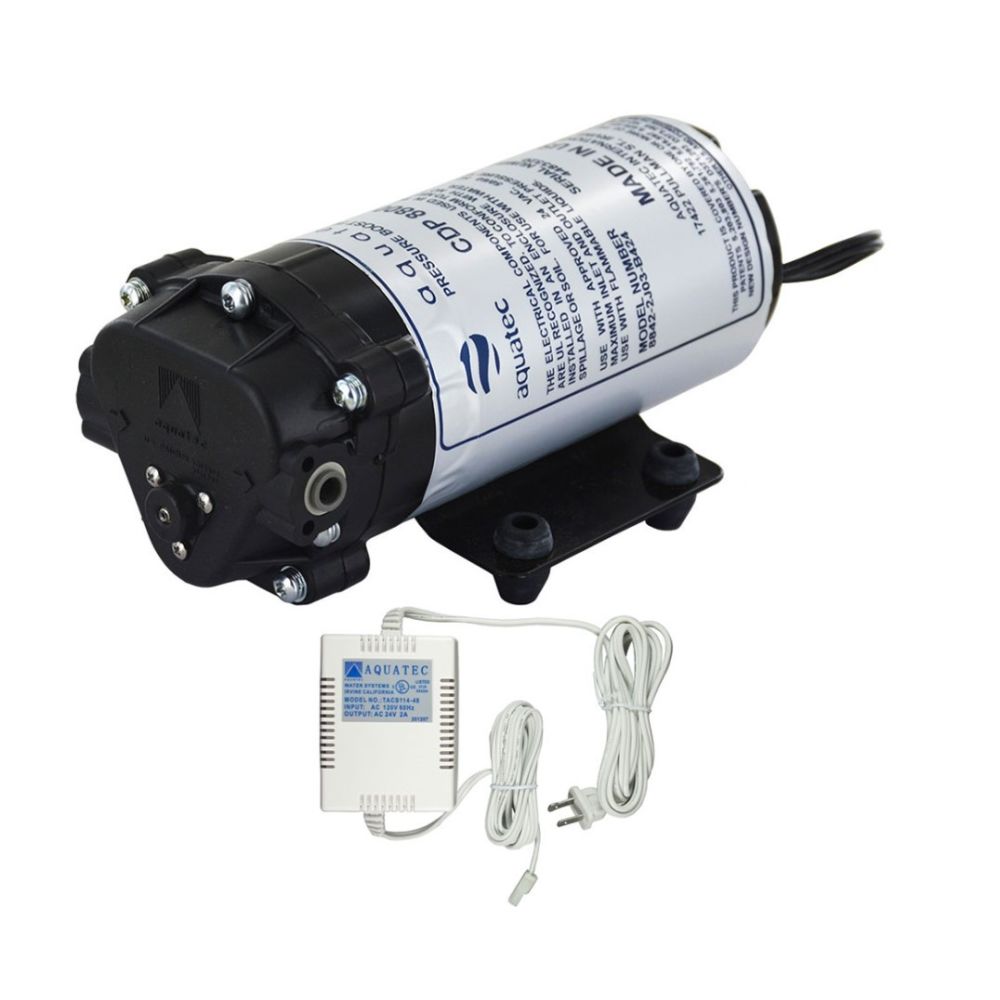

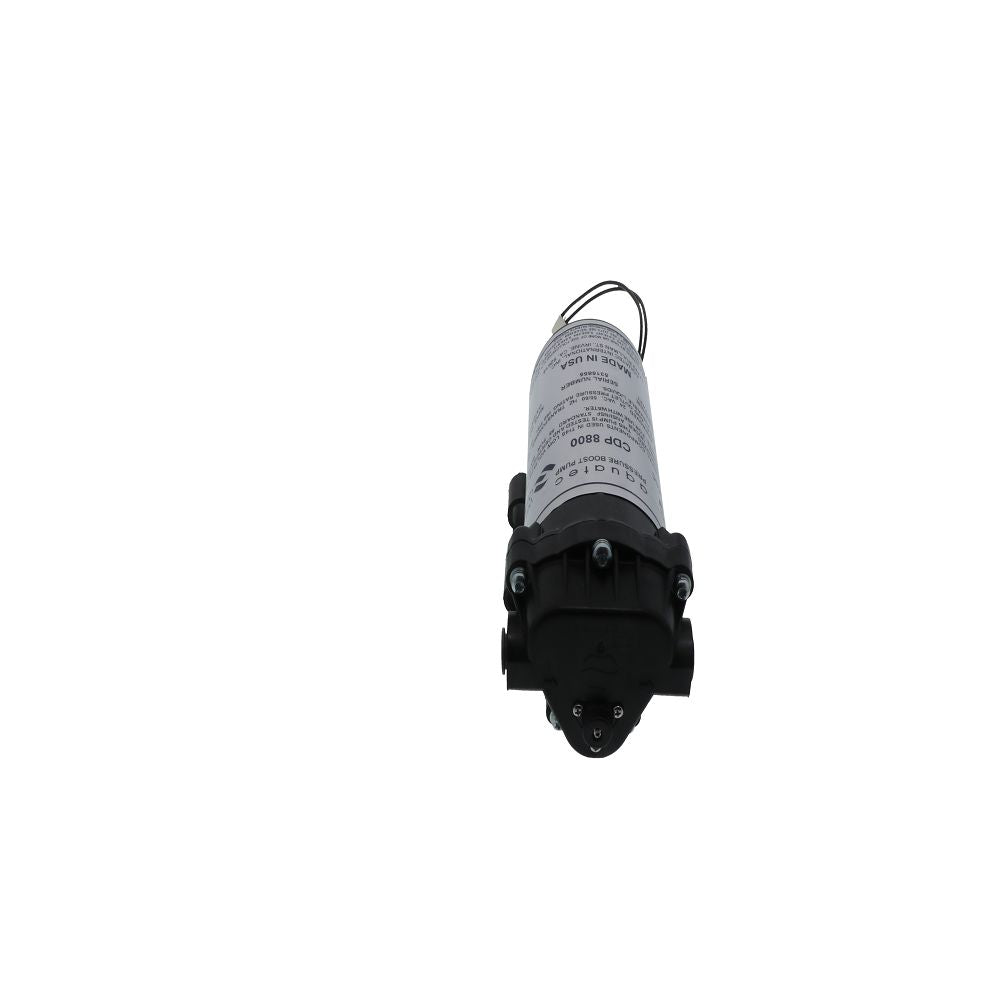

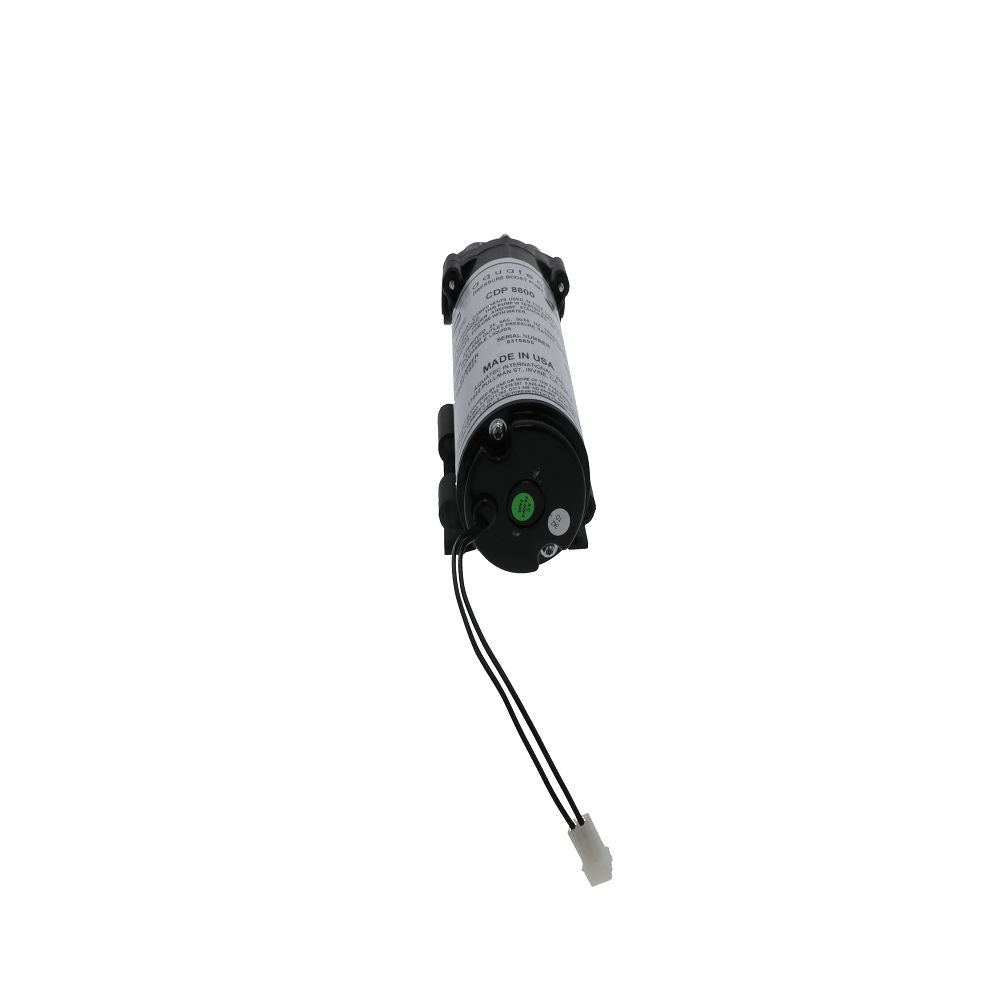

Aquatec CDP 8800 Pressure Boost Pump Kit with Transformer

Aquatec 8800 Series Pumps are used in RO systems with flow rates greater than 50 GPD. Reverse osmosis systems require pressure to work properly. A booster pump is suggested for applications where the feed water pressure is low, and where there are high levels of Total Dissolved Solids (TDS) in the water. The 8842-2J03-B424 is designed for operation with a tank shut-off switch (PSW), which shuts off the RO booster pump when the storage tank becomes full. In under-counter RO systems the PSW can be coupled with an Electronic Shut-Off valve (ESO) in order to shut off the feed supply so the system does not waste water.

Features:

• Reliable Performance. The Aquatec 8800 Series Pump is an extremely durable booster pump that is designed for continuous duty. This tough pump is safe to operate with low voltage for long lasting reliability.
• Self Priming. The Aquatec 8800 Series Pump is self priming with a 6 foot lift. The 8842-2J03-B424 is also capable of running dry.
• Certification. The Aquatec 8800 Series Pump are built of certified materials that meet the NSF standard number 58.

Specifications:

• Voltage: 24VAC
• Prime: 6 foot lift
• Outlet pressures up to 110 PSI
• Inlet/Outlet: 1/4" quick connect
• Max Liquid Temperature: 170°F
• Manufactured of NSF 58 Certified Materials
