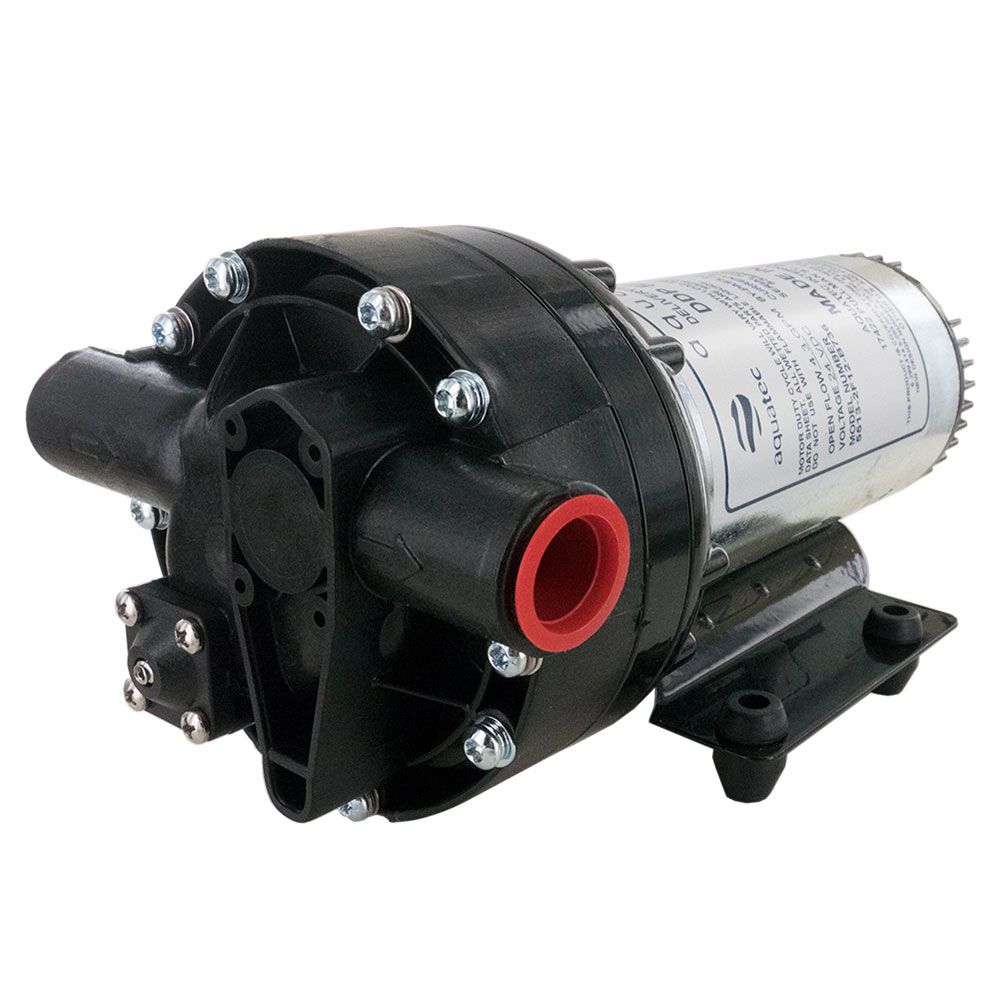

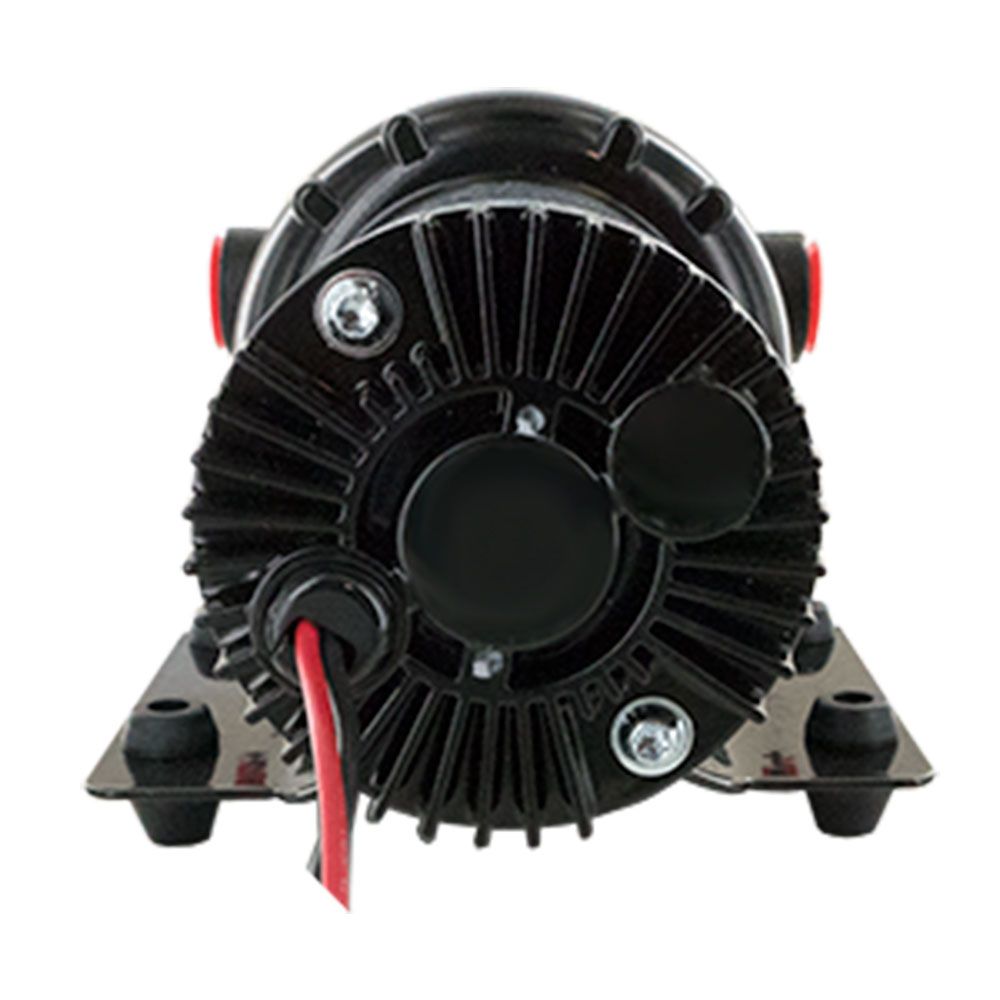

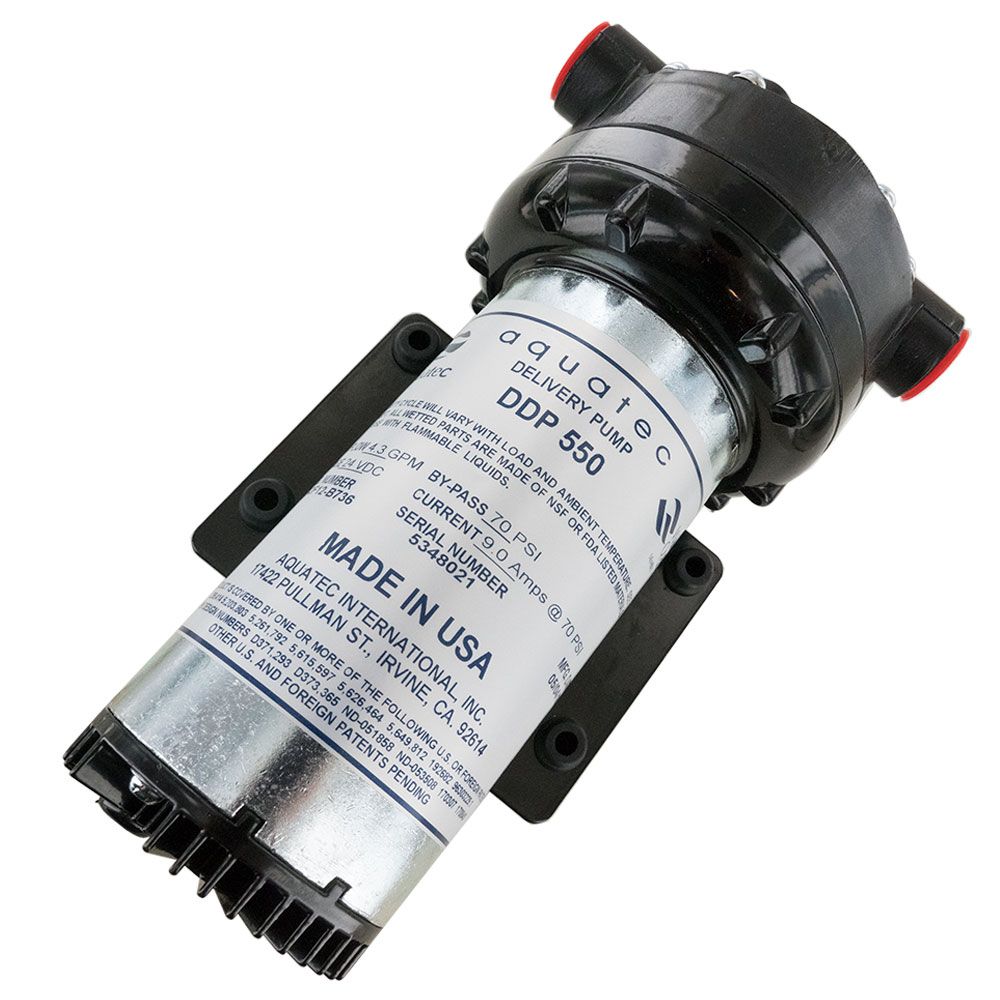

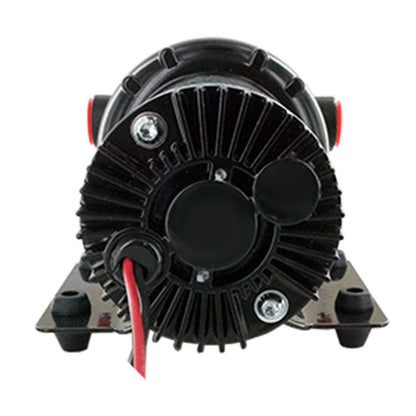

Aquatec 5513-2F12-B736 Pump 5.15 gpm, 1/2 FPT, 24V DC NO Cord

The Aquatec 550 Series Pumps are used to either draw water from a holding tank and pressurize it, or boost pressure from a low pressure source. Although designed to operate intermittently, many 550 versions can run continuously for several hours at a time. These pumps can be operated either in demand mode (pressure switch controlled) or in delivery mode (controlled by external power switching device). If needed, an integral bypass can be used to limit pressure. Typical applications of this pump includes beverage and drinking water delivery.

Features:

• 5-chamber construction
• Closed impervious diaphragm
• Independent symmetrical valves
• Highest structural integrity
• Ten point clamping
• Engineered composite plastics
• Corrosion resistant metal
• Pressure switch and transducer options

550 Series Demand Pump Benefits:

• Self-priming
• Unparalleled performance, efficiency
• Whisper quiet at lower flows
• Minimal pulsations
• 7 year design life
• Runs dry without damage
• Chemically resistant versions

Aquatec 5513-2F12-B736 Specifications:

• Motor Type: 24 VDC

• Bypass Pressure: 70 psi

• Port: 1/2" FPT
• Priming Capabilities: 11 ft
• Liquid Temperature: 140°F
• Certification: NSF Standard 58
