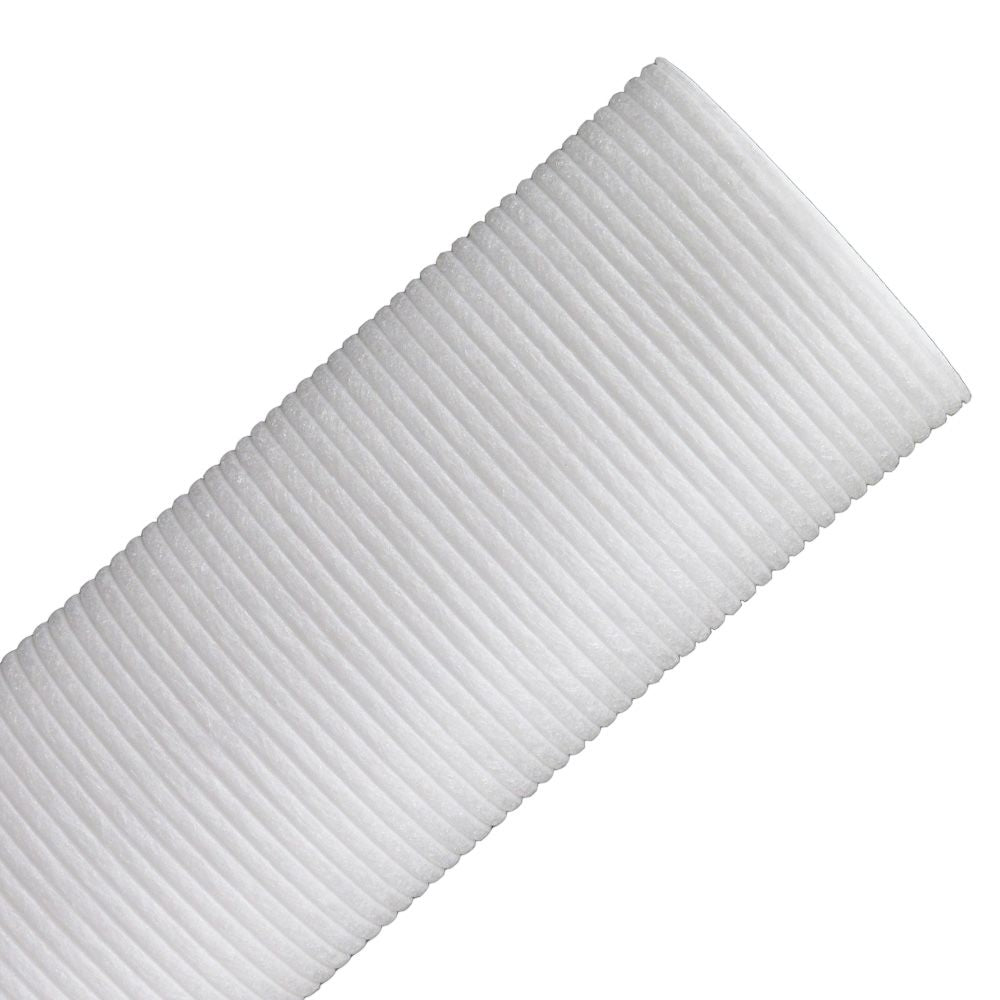

Aqua-Pure AP1001 Extra-fine Sediment Filter 55666-01

This Graded Density Aqua-Pure dirt & rust cartridge is made from an exclusive process using pure white celluose fibers. As water passes from the outer surfaces into the center of the cartridge, the filtering pores become increasingly smaller to remove even microscopic particles. Unlike string-wound and pleated paper cartridges, the rigid, sturdy construction of the Aqua-Pure cartridges are able to withstand high pressure drop and stressful conditions such as water hammer.

CUNO AP1001 Filter Specifications:

• Filter Claim: Extra Fine Dirt/Rust/Sediment Cartridge
• Dimensions: (OD) 2-5/8" x (L) 9-3/4"
• Micron: 1 micron nominal
• Operating Temperature: 175° F max.
• Flow Rate: 8 gpm (30.3 lpm)
• Materials: Made from FDA (CFR 21) Compliant Materials
• How to change your AP1001 mic. Filter

Aqua Pure 1001 Extra Fine 1 Micron Filter Alternate Part Numbers:

• 5566602 & 55666-02 (24 per case)
• 5566601 & 55666-01 (sold individually)
• 3M Part Number: 70020126358
• AU09Z11NG120

The AP1001 can be used in the following systems:

• AP101S & AP101T
• AP102T & AP102S
• AP11S & AP11T
• AP12S & AP12T
• AP1610 & AP2610
• AP109
• AP51T
• 101S & 101T
• 102S & 102T
• 11S & 11T
• 12S & 12T
• 1610 & 2610
• SS1-SS12
• SS20-SS36
