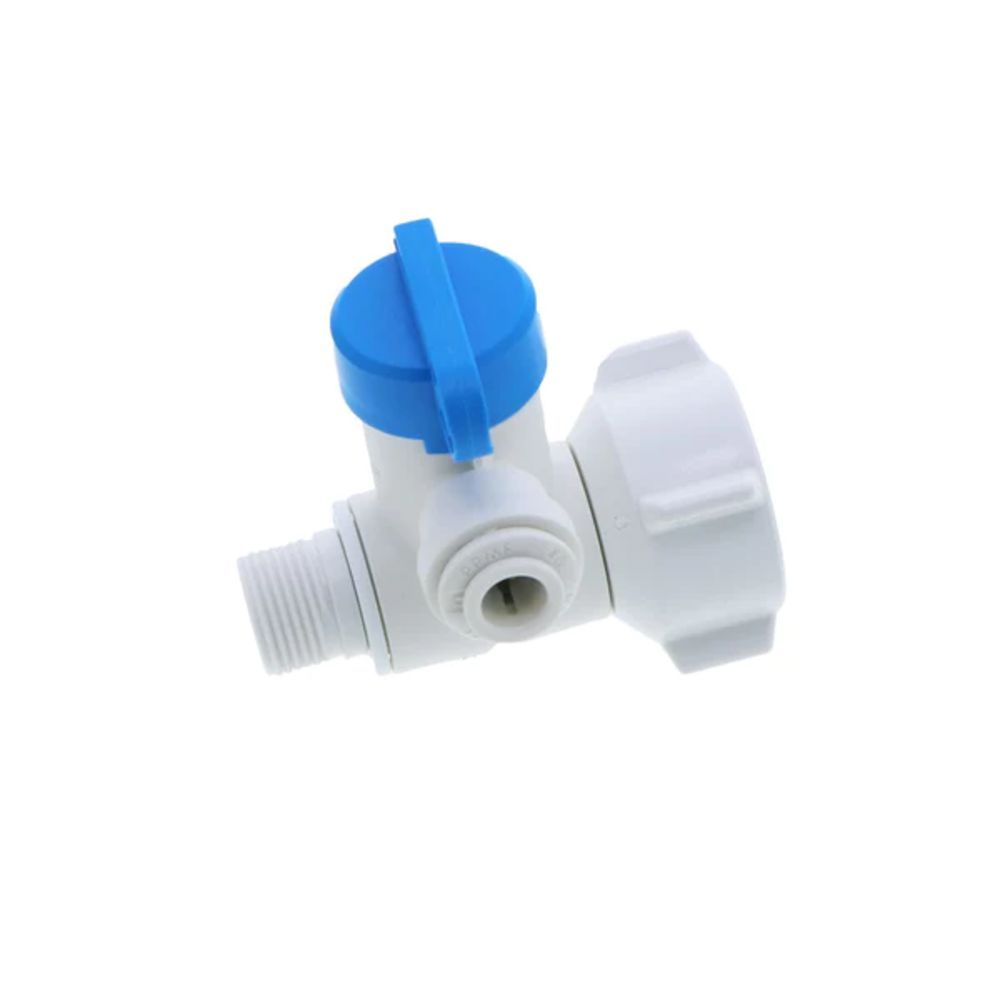

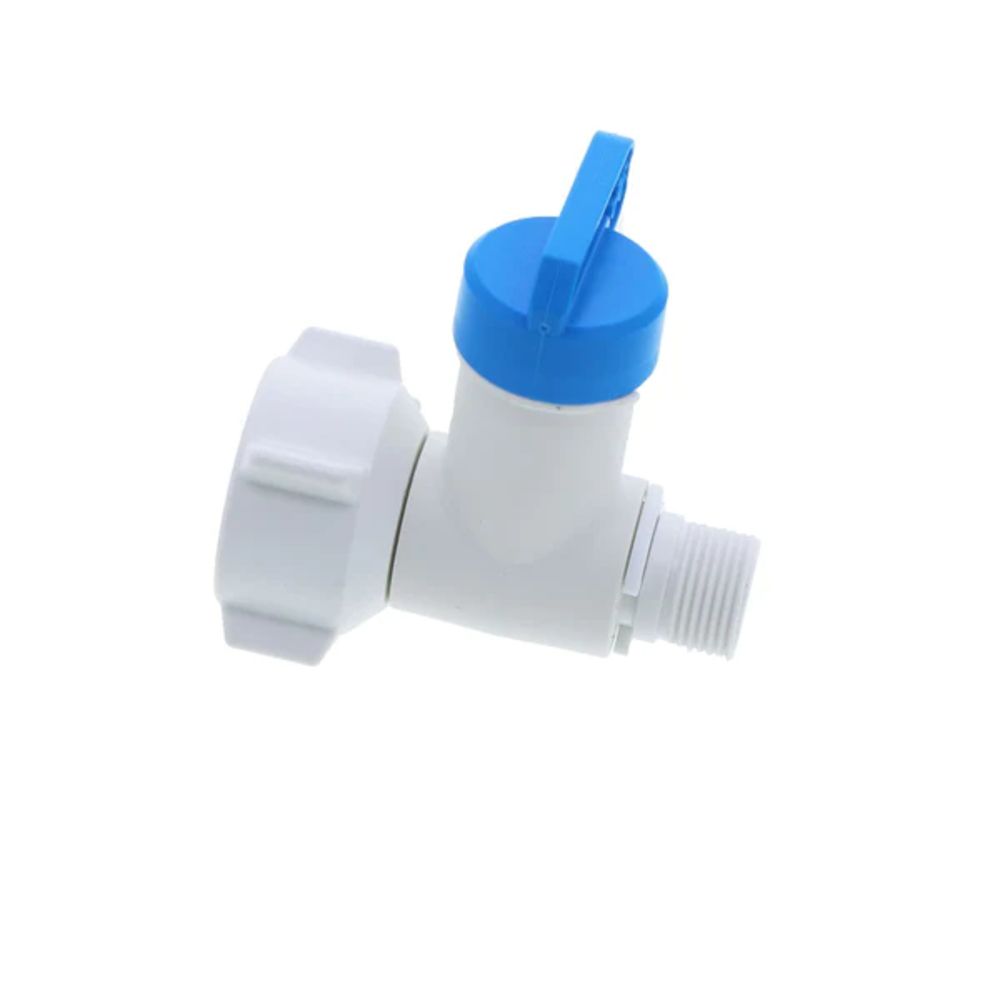

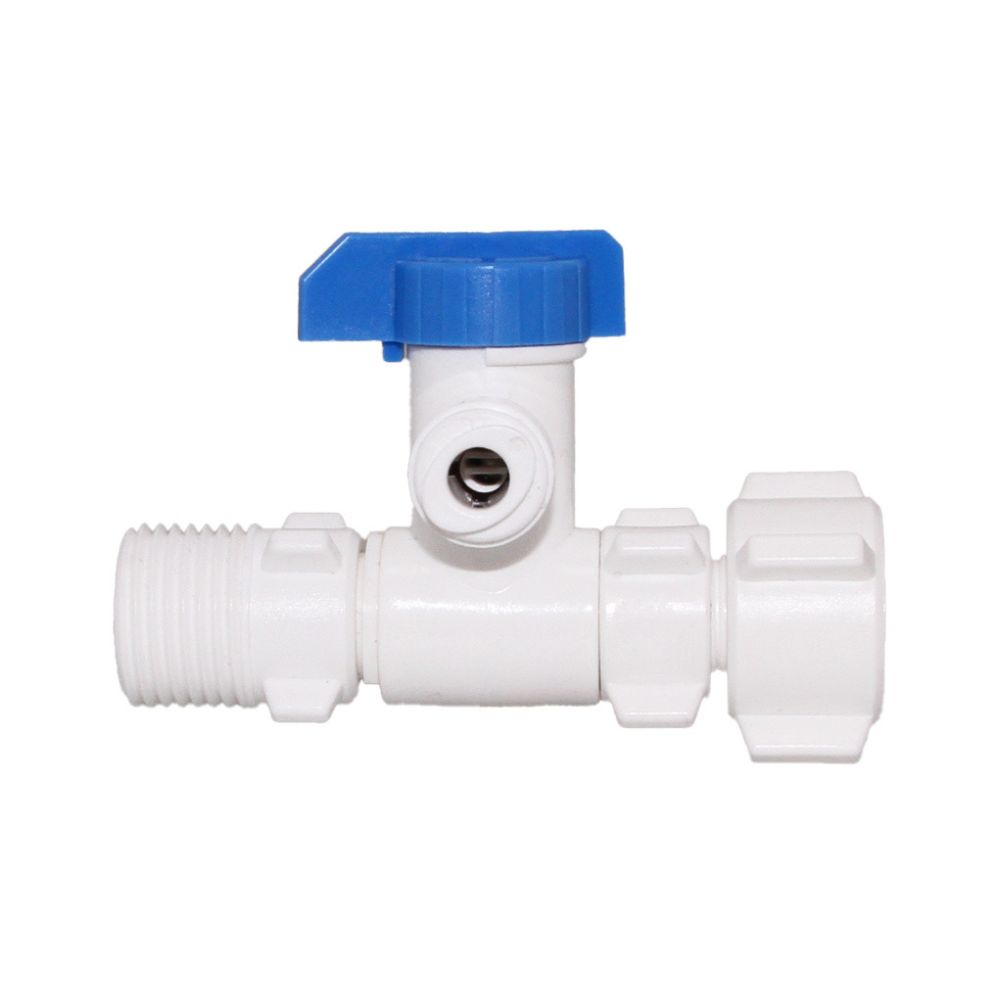

Angle Stop Adapter 3/8" Compression x 1/4" QC Valve - 1/2" NPS Adapter

This Angle Stop Adapter Valve connects between the stop valve and riser to provide a water supply feed line for applications in filtration systems, RO systems, coffee machines, and ice makers. They are made with polypropylene and food grade EPDM seals, with plated lead-free brass threads.

Features:

• For use with plastic or copper OD sized tubing
• For cold water supply use only
• Quarter turn to open or close
• Polypropylene body, EPDM seals
• Lead Free materials
• Quick and easy connection/disconnection
• NSF51 and NSF61 listed
• Not suitable for compressed air, explosive gases, petroleum spirits and other fuels or for heating systems

Specifications:

• 3/8" Male Compression Connection
• 1/2" Female Compression Connection
• 1/2" NPS Adapter

Working pressure & temperature:

• Max 145 psi at 68°F
• Max 58 psi at 140°F
• Min 34°F/1°C

Do Not Use these Valves:

• In a partially open position to control flow
• To provide a permanent termination
• Without tubing assembled or plugged (or threaded connections sealed)
• As a tap of “faucet”

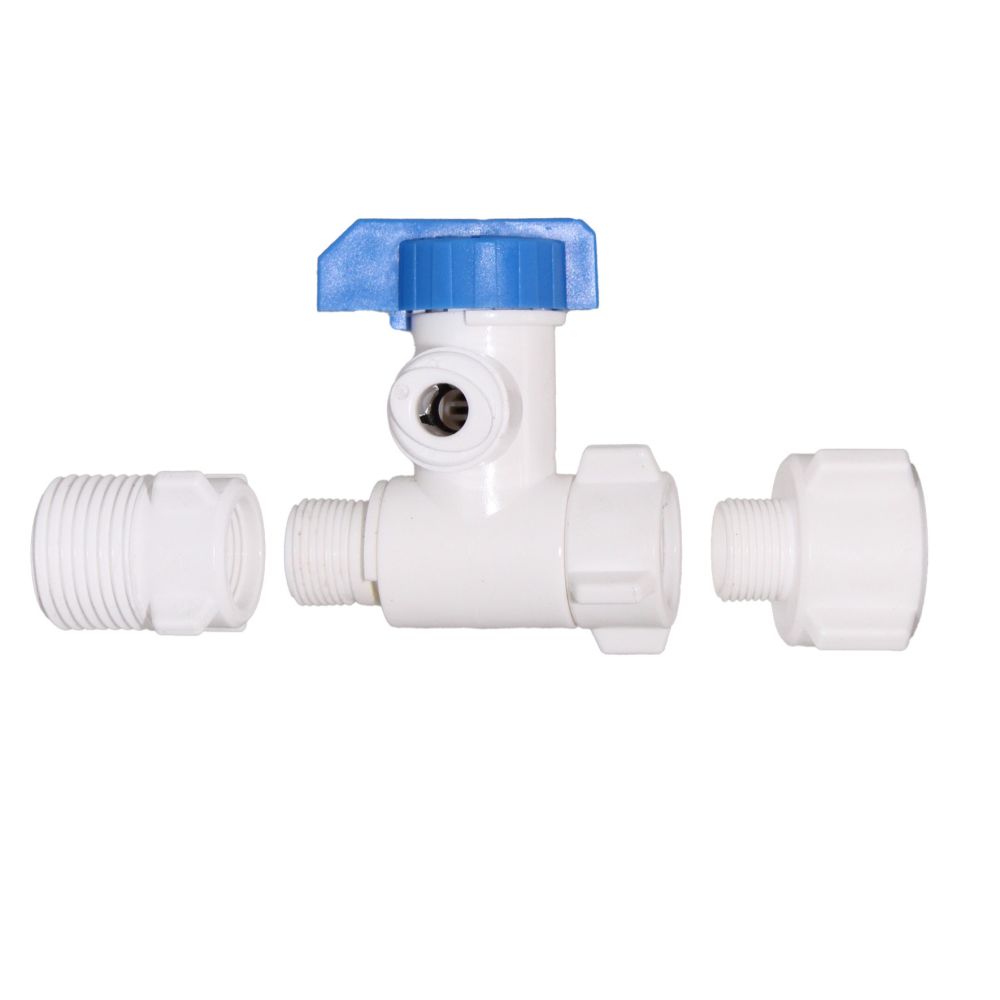

Note: Conversion adapter can be threaded to either side of valve to make configurations of 1/2" x 1/2" NPS or 3/8" x 3/8" compression.
