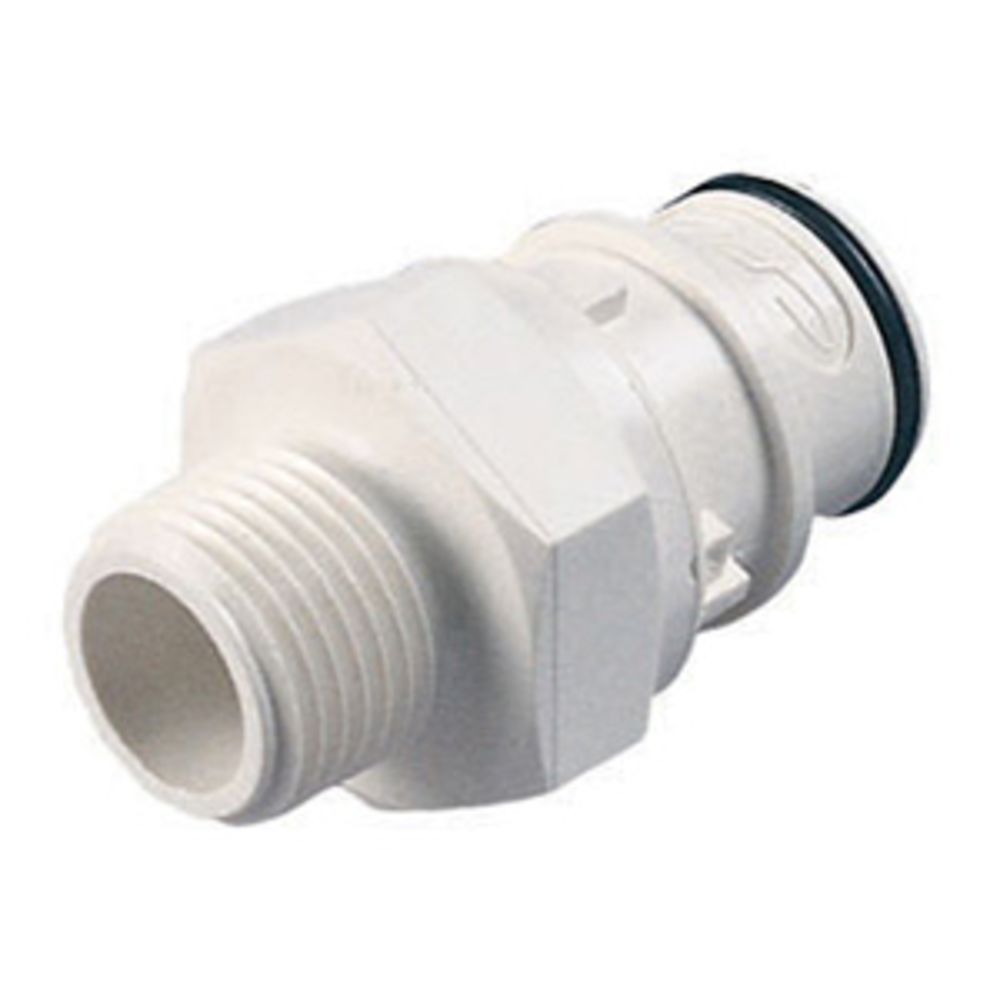

87900 NSF Non-Valved Coupling Insert 3/8 BSPT

Patented HFC12 Series couplings have flow comparable to many 1/2" flow couplings in a 3/8" body size. Compact and lightweight, HFC couplings replace bulky and heavy metal ball-and-sleeve couplings in a wide range of applications. An ergonomic design and a large, shrouded thumb latch pad produce a coupling that is easy to grip and simple to operate. An efficient valve design leads to high flow and low spillage. NSF-listed versions are sutiable for use in water and beverage lines or food and condiment dispensing.

Specifications:

• Material: Polysulfone
• Material Finish: Molded White
• Color: Gray
• Valve Option: Non-Valved
• Mounting Option: Thread
• Pressure Range: Vacuum to 125 psi, 8.6 bar
• Temperature Range: -40°F to 280°F
• Seal Options: FDA EPDM
• Valve Spring: 316 Stainless Steel
